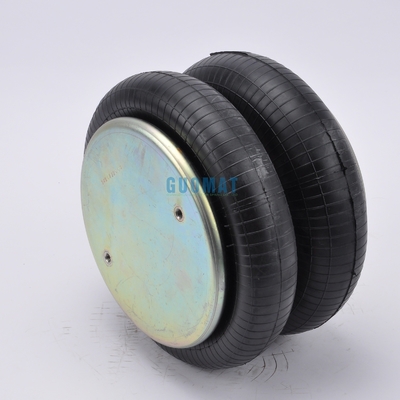

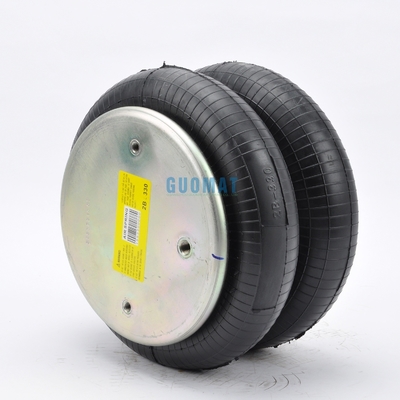

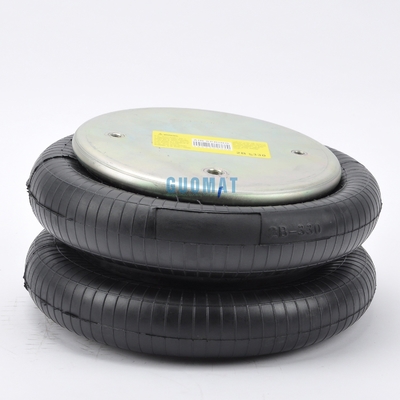

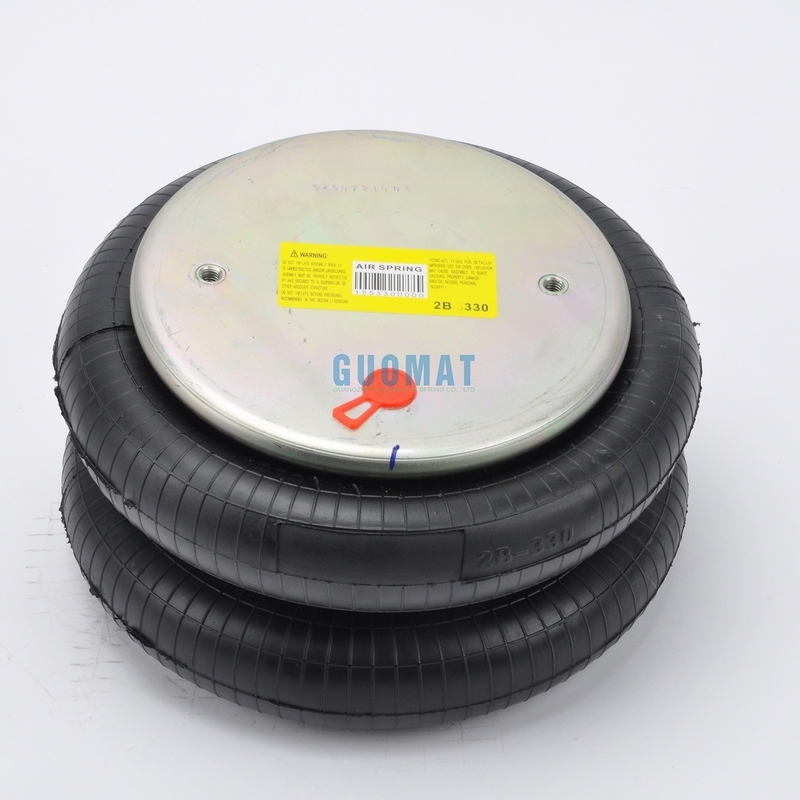

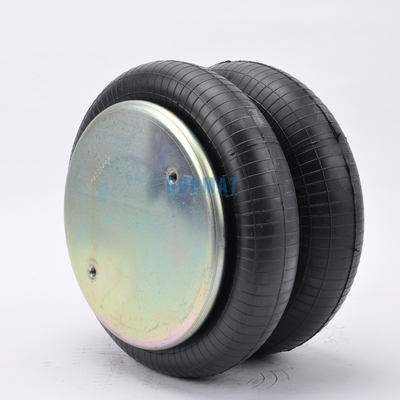

2B12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 For Leland SC2075 Air Bags

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B5330

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Neutral packaging or customer's requirements
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type:	Suspension Spring	Pressure Ability:	0.2-0.8 M PA
Air Inlet:	1/4 NPT	Top Plate Hole/Stud:	3/8-16unc
Bottom Plate Hole/Stud:	3/8-16unc	Top Plate Dia:	231 Mm
Bottom Plate Dia:	231 Mm	Other Name:	Guomat Suspension Air Bags
Highlight:	Leland SC2075 Goodyear Air Spring , 578923309 Goodyear Air Spring , Triangle 6316/4363 Goodyear Air Spring

2B12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 For Leland Sc2075 Air Bags

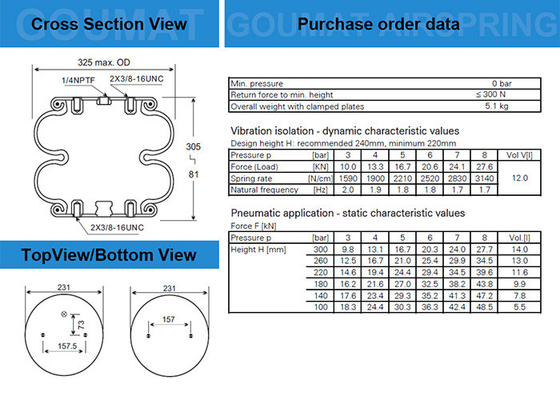

Technical Parameters of GUOMAT 2B5330

1 Inch (pounds)	7180	1 Inch (pounds)	7180
3 Inch (pounds)	6470	3 Inch (pounds)	6470
Maximum Stroke (pounds)	3700	Maximum Stroke (pounds)	3700
Equivalent High Strength Style Number	210	Equivalent High Strength Style Number	210
Extended Height (Similar End Closure) Style Number	22_Ì1.5	Extended Height (Similar End Closure) Style Number	22_Ì1.5
Material	2-Ply Standard Cord	Material	2-Ply Standard Cord
Bead plate Type	3	Bead plate Type	3
Blind Nut Centers (inches)	6.2	Blind Nut Centers (mm)	157.48
Port Offset from Blind Nut Centerline (inches)	2.88	Port Offset from Blind Nut Centerline (mm)	73.152
Design Height	9.5	Design Height	241.3
aximum Height (inches)	10.1	aximum Height (mm)	256.54
Maximum Stroke (inches)	6.9	Maximum Stroke (mm)	175.26
Minimum Usable Height (inches)	3.2	Minimum Usable Height (mm)	81.28

OEM Original Equipment Manufacturer:

BELLOW NO.	COMPLETE NO.	COMPLETE NO.
AIRKRAFT 114301	GUOMAT NO. 2B5330 AIRKRAFT 113333	AIRKRAFT 113491
Fire stone Air Spring FLEX 22	CONTITECH FD 330-22 313	Fire stone Air Spring W01-358-7184
Fire stone Air Spring W01 358 0226	Fire stone Air Spring W01 358 7400	GOODYEAR 2B12-429
95.0037	GOODYEAR 2B12-309	GOODYEAR FLEX 578-92-3-309
95.0082	GOODYEAR FLEX 578-92-3-309	AIRKRAFT 113492
GOODYEAR 556 2 3 8210	TAURUS KF 222-7400	Fire stone Air Spring W01-358-7185
PHOENIX 2B 22R	AIRKRAFT 113490	GOODYEAR 2B12- 318 Goodyear Part # 2B12-311 Goodyear-2B12-425 Goodyear-2B12-437
PIRELLI T22 88544	CONTITECH FD 330-22 363	GOODYEAR FLEX 578-92-3-309
Fire stone Air Spring: W01-358-7180/22	Fire stone Air Spring W01-358-7180	Watson&Chalinl : AS01541G/01881F
Contitech: FD 330-22 363	GOODYEAR 2B12 425	Vibracoustic : VSP2B22R7180
Goodyear: 2B12-425/311	GOODYEAR FLEX 578-92-3-309	Ridewell : 1003587180C
Hendrickson : 1VA1816	Leland : Sc2075	Peerless : 0550 00001
: 578923309	Navistar : 1685179C1	SAF Holland : 57007180
Triangle : 6316/4363	EI Ride : 8030190	Kwiklok/Todco(Jifflox)

Application of rubber air springs on lifting equipment:
Conventional lifting equipment uses cylinders or hydraulic cylinders to lift objects, requiring a large installation space, manufacturing difficulties, heavy weight, easy leakage, and inconvenient maintenance. After using the rubber air spring as the lifting element of the lifting device, the traditional shortcomings of the lifting device are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.
2B12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 For Leland SC2075 Air Bags 0

Other kinds of FD 330-22 that GUOMAT have:

GUOMAT NO.	Reference	Order NO.	Force (lbs)		Max OD (in)	Design height(in)	Height		Narural frequ.[cpm]
GUOMAT NO.	Reference	Order NO.	80 psi	100 psi	Max OD (in)	Design height(in)	Min	MAX	Narural frequ.[cpm]
FD 330 22 313	FD 330-22 313	161016	4200	5250	12.9	9.5	4.1	12	102
FD 330 22 318	FD 330-22 318	161270	4200	5250	12.9	9.5	3	12	102
FD 330 22 327	FD 330-22 327	161029	4200	5250	12.9	9.5	4.1	12	102
FD 330 22 331	FD 330-22 331	161009	4200	5250	12.9	9.5	4.1	12	102
FD 330 22 334	FD 330-22 334	161271	4200	5250	12.9	9.5	4.1	12	102
FD 330 22 337	FD 330-22 337	161272	4200	5250	12.9	9.5	4.1	12	102
FD 330 22 343	FD 330-22 343	161273	4200	5250	12.9	9.5	3	12	102
FD 330 22 346	FD 330-22 346	161274	4200	5250	12.9	9.5	3	12	102
FD 330 22 363	FD 330-22 363	161275	4200	5250	12.9	9.5	3	12	102
FD 330 22 364	FD 330-22 364	161276	4200	5250	12.9	9.5	4.1	12	102
FD 330 22 365	FD 330-22 365	161277	4200	5250	12.9	9.5	4.1	12	102
FD 330 22 366	FD 330-22 366	161278	4200	5250	12.9	9.5	4.1	12	102
FD 330 22 367	FD 330-22 367	161279	4200	5250	12.9	9.5	4.1	12	102
FD 330 22 368	FD 330-22 368	161280	4200	5250	12.9	9.5	3	12	102
FD 330 22 465	FD 330-22 465	161281	4200	5250	12.9	9.5	3	12	102
FD 330 22 471	FD 330-22 471	161282	4200	5250	12.9	9.5	4.1	12	102
FD 330 22 472	FD 330-22 472	161283	4200	5250	12.9	9.5	3	12	102
FD 330 22 500	FD 330-22 500	161284	4200	5250	12.9	9.5	3	12	102
FD 330 22 540	FD 330-22 540	161285	4200	5250	12.9	9.5	4.1	12	102
