G1/4 Air Inlet Suspension Air Spring FD 70-13 Contitech Convoluted Air Shock

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B7070

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Suspension Air Spring	Plate Diameter:	105 Mm
Air Inlet:	G1/4	Transport Package:	Cartons
Material:	Rubber And Steel	Contitech:	FD 70-13
Natural Height:	162mm	Warranty:	1 Year
Highlight:	G1/4 Air Inlet Suspension Air Spring , FD 70-13 Suspension Air Spring

G1/4 Air Inlet Suspension Air Spring FD 70-13 Contitech Convoluted Air Shock

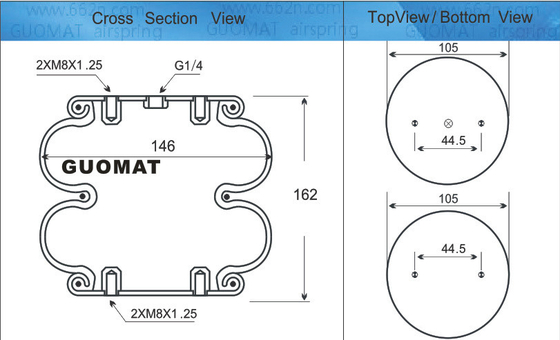

2B7070 Specifications and Detail Technical Parameters

Specifications

Weight 1,4 kg

G1/4: max. 25 Nm

M8: max. 25 Nm

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 44.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 44.5 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/4

Cover Plate

Top Cover Plate Diameter (Width): 105 mm

Bottom Cover Plate Diameter (Width): 105 mm

Rubber Bellows

Rubber Bellows Natural Diameter : 146 mm

Rubber Bellows MAX Diameter : 165 mm

Installation Space Diameter : 180 mm

Rubber Bellows Natural Height : 162 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

OEM Number

Contitech FD70-13

Contitech FD 70-13

Contitech FD70-13 CI

Contitech FD 70-13 CI

FD 70-13 Pneumatic Application – Static Characteristic Values

Force F [lbf]

Pressure p	psi	40	60	80	100	120	Vol.V(in.3)
Height H [in.]	7.0	354	556	749	942	1140	110
	6.5	459	679	906	1150	1400	100
	6.0	542	795	1070	1340	1630	93
	5.5	605	903	1200	1510	1820	91
	5.0	673	999	1340	1670	2040	84
	4.5	730	1090	1470	1830	2230	76
	4.0	797	1200	1600	1990	2400	68
	3.5	855	1280	1710	2150	2560	54
	3.0	901	1350	1790	2240	2670	40
