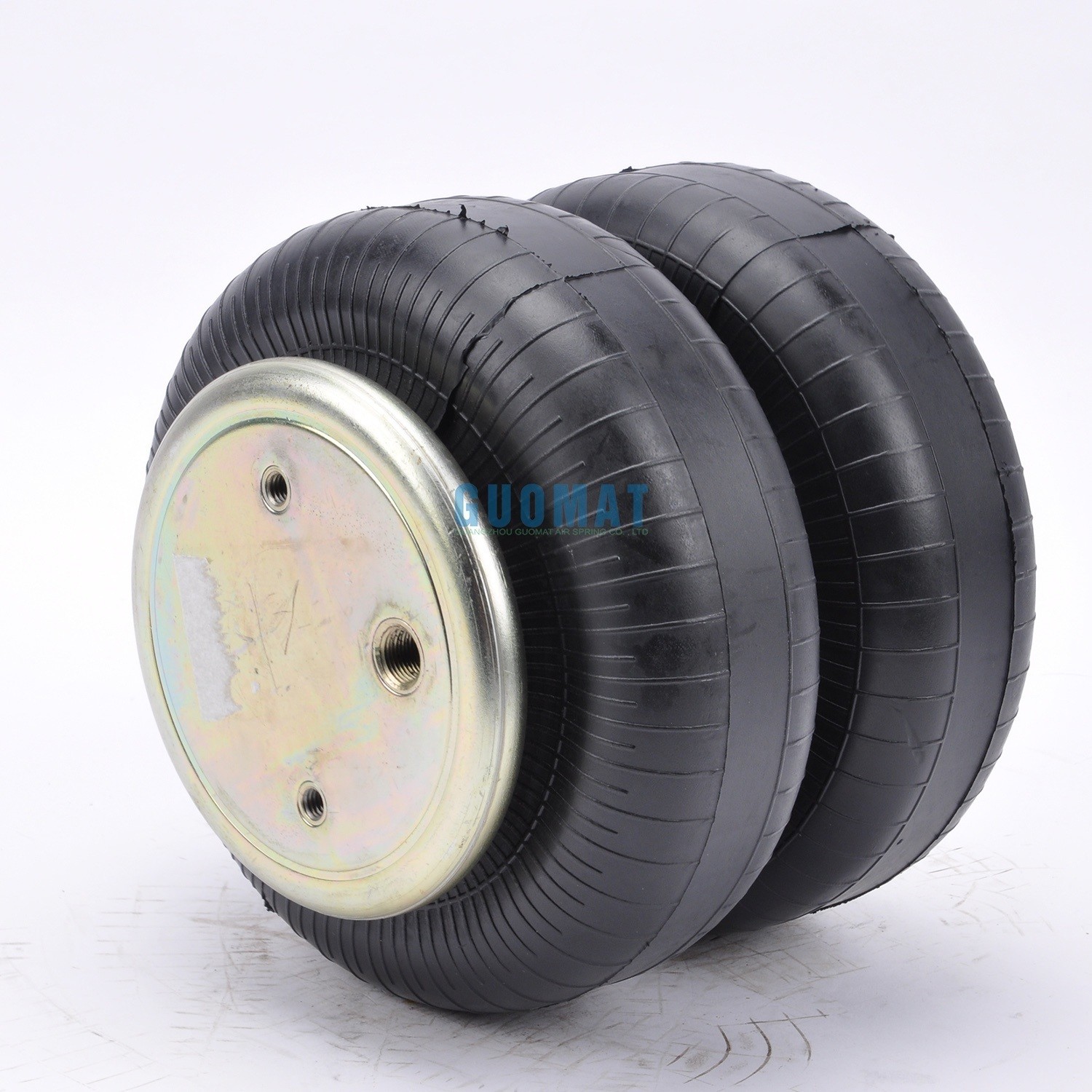

W01M586891 Firestone Air Suspension Spring Bellows 20-2 Airtech 2B-225 For Scania Truck Suspension 1387283

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B6891

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Type:	Air Suspension Spring	Pressure Ability:	0.2-0.8 M PA
Top Plate Hole/Stud:	2xm10X1.5	Bottom Plate Hole/Stud:	2xm10X1.5
Top Plate Dia:	160 Mm	Bottom Plate Dia:	160 Mm
Transport Package:	Cartons	Specification:	242424 Cm
Material:	Rubber And Iron	OEM:	Yes
Highlight:	W01M586891 Firestone Air Suspension Spring , 1387283 Air Suspension Spring

W01M586891 Fire stone Air Suspension Spring Bellows 20-2 Airtech 2B-225 For Sca nia Truck Suspension 1387283

Comparison number of other suppliers:

FIRE STONE Air Spring : W01-M58-6891,W01 M58 6891,W01M586891

FIRE STONE Air Spring :20-2,20 2

Flexmember: 578-92-3-206 / 578923206 /578 92 3 206

Goodyear Trimmed: 2B9252 / 2B9-252 / 2B9 252

Triangle Spring: 4454

FIRE STONE Air Spring: 6944

Grande: 7639

Histeer - Link Mfg. :10307

Conti Tech: 64512

Suspensions Inc. :200118

Batco: 10-96944

UCF / Impex: AB-2B9-252

T.W. Distribution: AB6944

Automann: ABSP2B12RA-6944

Dallas Spring: AS6944

Midland / Haldex: CS209252

Euclid / Meritor Aftermarket: E-FS6944

Conti Tech: FD200-25454

Euclid / Meritor aftermarket: FS6944

BWP: M-3559

Leland: SC2124

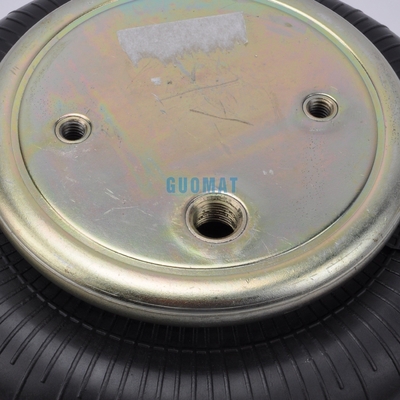

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.5

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.5

Screw Center Distance of Bottom Cover Plate : 89 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : M14X1.5

Center Distance Between Nut and Air inlet: 44.5 mm

Cover Plate

Top Cover Plate Diameter (Width): 160 mm

Bottom Cover Plate Diameter (Width): 160 mm

Rubber Bellows

Rubber Bellows Natural Diameter : 232.5 mm

Rubber Bellows Natural Height : 232 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Description:

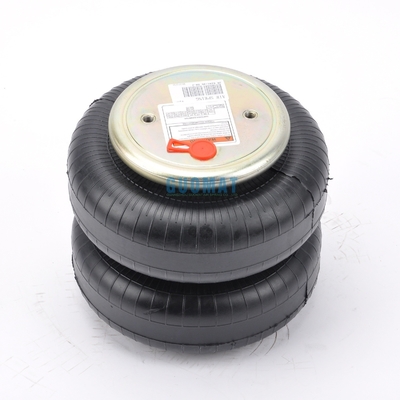

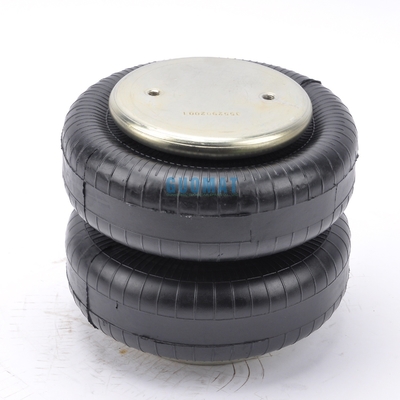

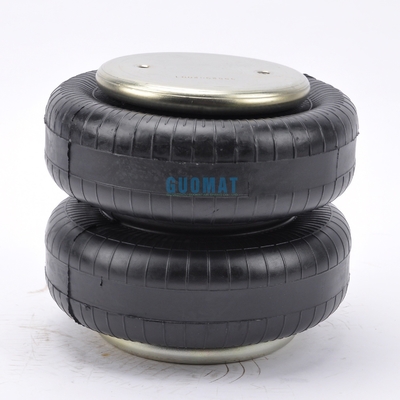

This is a bellows style GUOMAT air spring. GUOMAT NO. 2B9252 Bellows air springs have two windings in a flexible member. Such double-turn airbags are commonly used in lift springs or axles for trucks and trailers, as pneumatic springs, and as actuators or insulators in industrial and commercial applications. The specifications of the 2B9252 will vary, but the double-curved Goodyear bag has a crimp design and a sleeve bellows. They will provide similar features and functions, but the sleeve type permanently connects the end retainers by clamping the flexible member between the end retainer and the outer crimp ring.

Specifications:

Roof hole/stud: 2
Floor hole / stud: 2
Roof diameter: 6.4
Base plate diameter: 6.4
Collapsed height: 3.8
