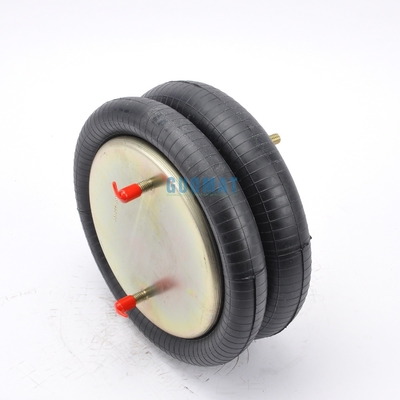

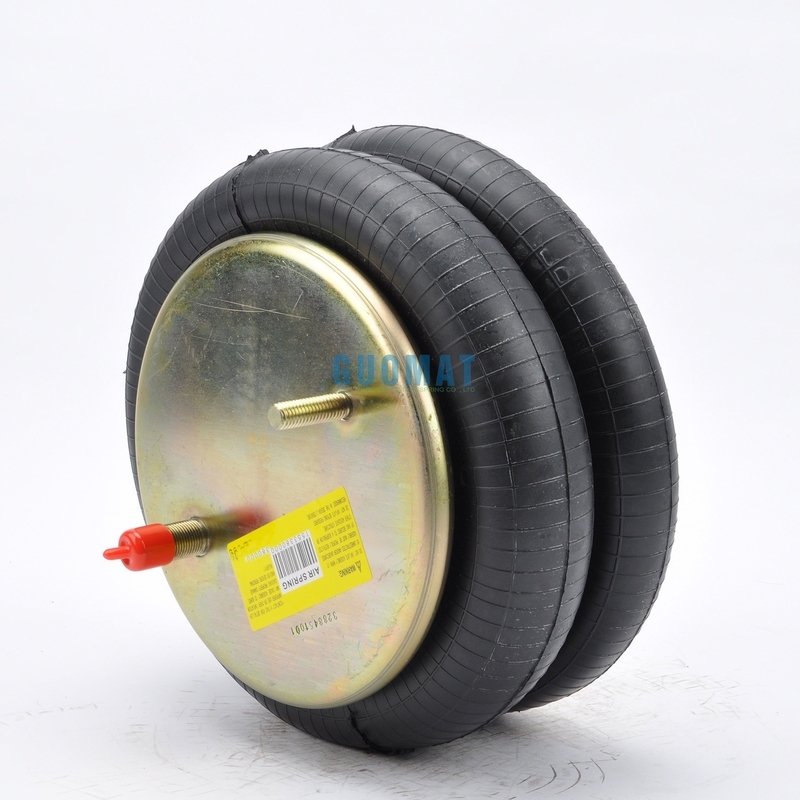

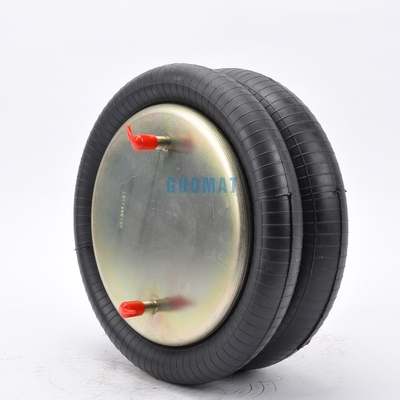

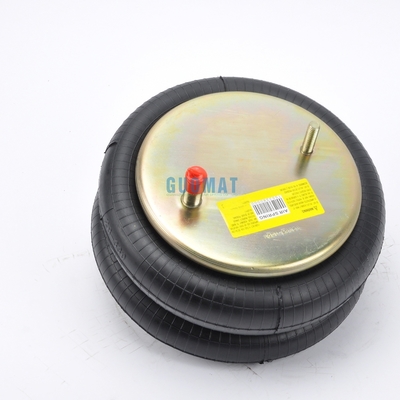

W01-358-7405 Firestone Replacement Air Spring 2B12-313 Goodyear For Wrapping Machine
Manufacturer Cross OEM Reference
Firestone OEM Number: W01-358-7405 / W01 358 7405 / W013587405
Firestone OEM Number: WO1-358-7405 / WO1 358 7405 / WO13587405
Firestone Bellows Number:22
Contitech OEM Number: FD 330-22 364 / FD330-22 364 / FD330-22364
Contitech Manufacturer Part Number: 64494
Goodyear Part Number: 2B12-313 / 2B 12-313 / 2B12313
Goodyear Part Number: 2B12-459 / 2B 12-459 / 2B12459
Goodyear Bellows Number: 578923309 / 578 92 3 309 / 578-92-3-309
Triangle Part Number:4364
Triangle Bellows Number:6316
Arvin Meritor Number: 200981
Dayton Number: 3547405
Leland Number: Sc2073
Navistar Number: 1685177C1
Hutchens Number: H-10384-01
SAF Holland Number: 57007405
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/4-16UNF
Screw Center Distance of Top Cover Plate : 140 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 157mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Center Distance Between air inlet and Nut : 140 mm
Air Inlet Combine With One Nut
Cover Plate
Top Cover Plate Diameter (Width): 231 mm / 9.00 inches
Bottom Cover Plate Diameter (Width): 231 mm / 9.00 inches
Top Cover Plate Number: 3235
Bottom Cover Plate Number: 3256

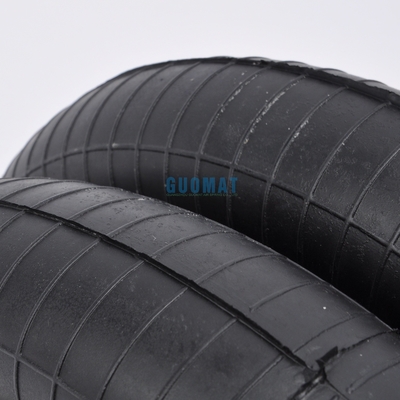

Rubber Bellows
Rubber Bellows MAX Diameter : 325 mm / 12.9 inches
Compressed Height: 81 mm / 4.12 inches
Minimum Jounce Height: 81mm / 4.12 inches
Design Height: 203 mm-241mm / 8-9.5 inches
Maximum Height: 305 mm / 12 inches
Bellows # NO.: 22
Working Stroke : 224 mm / 8.8 inches
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Assembly Weight: 6.9 kg
Air Spring Installation
|
Before you begin installing an air spring, make sure you have all the necessary tools and equipment to perform the repair safely.
|
|
Become familiar with the suspension you are repairing by reviewing the Manufacturer Service Guide.
|
|
If you are unsure about something, ask a qualified suspension expert, suspension manufacturer, or air spring manufacturer for help; this can save you a lot of time and effort later on in the job
|

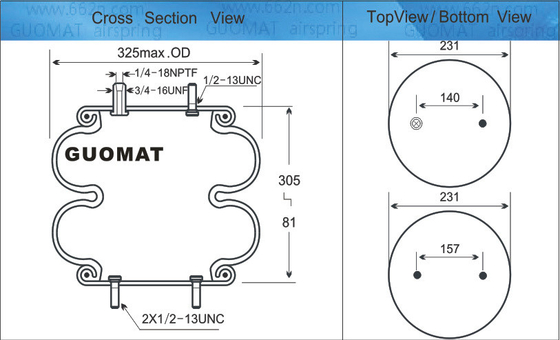

The drawing and data of GUOMAT 2B7405 air spring:
