GUOMAT Air Suspension Spring 2B5216 Double Convoluted Rubber Bellows 100% Brand New
Product Introduction
| Top Cover Plate Diameter | 132mm |
| Bottom Cover Plate Diameter | 132mm |
| Gas Hole / Air inlet | G1/2 |
| Rubber Bellows MAX Diameter | 203mm |
| The Working Stroke | MAX 230mm to MIN 75 mm |
| Top Cover Plate Screw (Nut) Tooth | 2XM10X1.5 |
| Bottom Cover Plate Screw (Nut) Tooth | 2XM10X1.5 |
| Screw Center Distance of Top Cover Plate | 70mm |
| Screw Center Distance of Bottom Cover Plate | 70mm |
Advantageous Features of Air Suspension- shock absorption effect is better, can effectively improve the comfort of the whole car
The airbag in the air suspension system has variable stiffness characteristics, which can rapidly reduce the vibration of the vehicle driving process and improve the ride comfort of the vehicle. In the glass, precision instruments and other goods transportation with high requirements for shock absorption, the advantages of airbag suspension are especially obvious.
- Effectively reduce fuel consumption, improve economic efficiency
Air suspension reduces fuel consumption mainly in two aspects, the first aspect is that when the vehicle equipped with air suspension in the unloaded state, the axle can be lifted up to reduce friction, thereby reducing fuel consumption, the other aspect relies on the airbag has a good shock absorption, in the bumpy sections of the air suspension models can be effective in reducing the frequency of gear shifting and acceleration and deceleration, thereby reducing fuel consumption.
- Protect the vehicle's own parts, extend the life of the vehicle
The air suspension system can effectively reduce the impact vibration on the body caused by the uneven road surface through the vibration isolation of the airbag, thus improving the service life of the chassis and body electrical system.
- Facilitate dumping transportation, effectively improve the transportation efficiency
When the tractor equipped with air suspension in the dumping transportation, can be adjusted through the height of the airbag to quickly realize the off-hanging, pick hanging, improve the efficiency of transportation.
- Facilitate the loading and unloading of goods on platforms of different heights.
Different platforms in different yards have height differences, when the vehicle equipped with air suspension docking loading and unloading platform, you can adjust the height of the airbag according to the different height of the platform, thus adjusting the height of the vehicle body, and facilitating the realization of rapid loading and unloading of goods.
- Extend the service life of tires and help road surface protection
Air suspension can effectively reduce the impact between the tires and the road surface, reduce tire wear, but also reduce the impact of the load on the road surface, can increase the effective protection of the road surface, reduce road maintenance costs.
Because the air suspension compared to the plate spring suspension vibration frequency is reduced, so the vehicle tire adhesion will be effectively enhanced, thereby reducing wheel slip, effectively improve the starting ability in the low adhesion coefficient on the road, and then improve the safety of vehicle driving.
FAQ
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Can I use my own logo?
A: Sure. We can do as per the customer's requirements.
Q: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. |

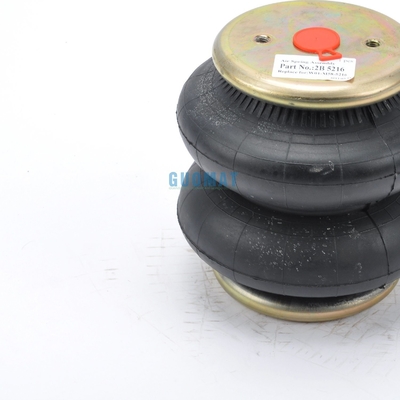

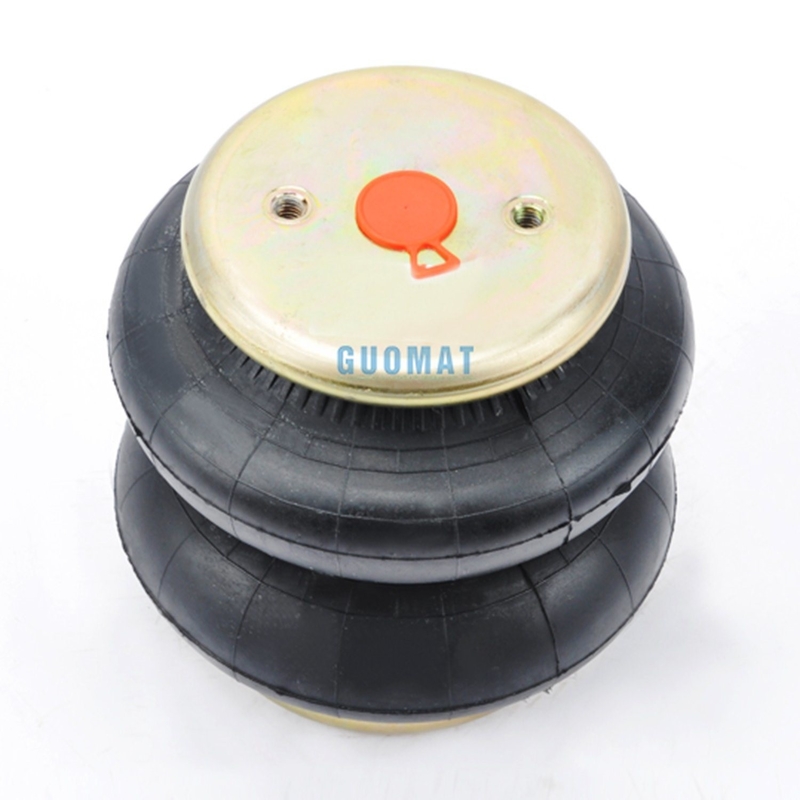

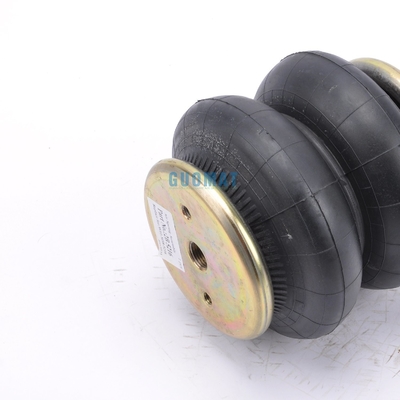

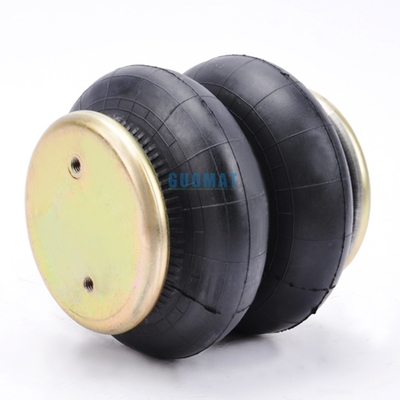

Product Image
