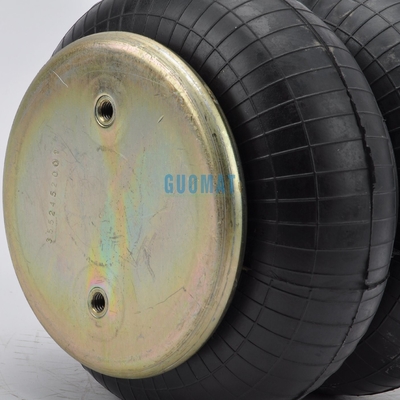

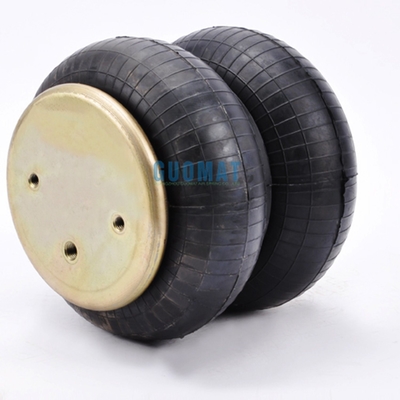

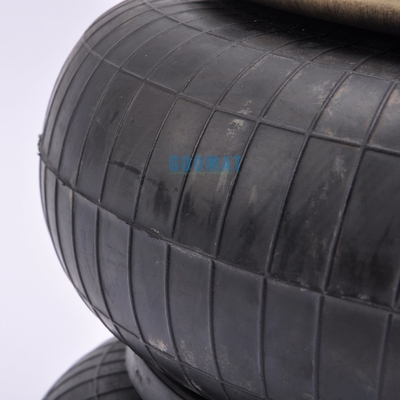

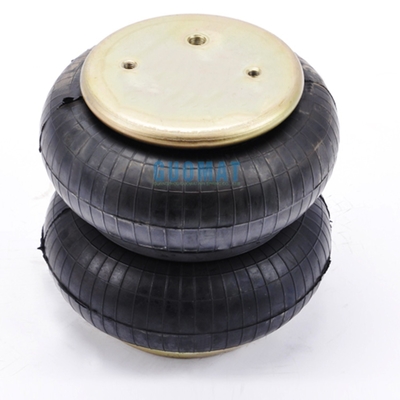

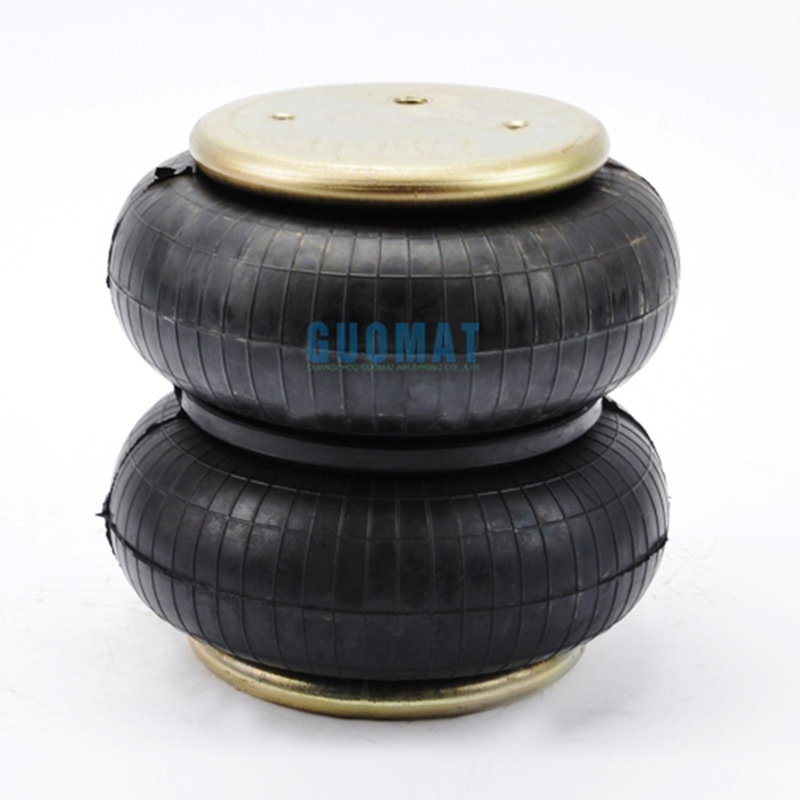

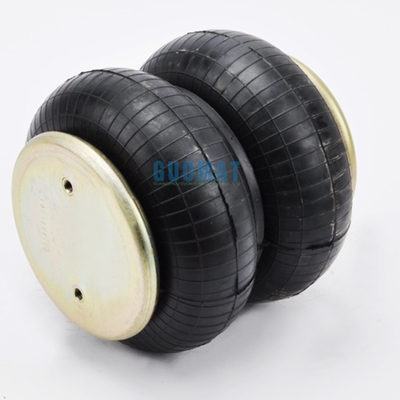

Best Warranty Firestone W01-358-6926 Industrial Air Spring Convoluted Air Actuator

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6926

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	W01-358-6926	Condition:	100% Brand-New
Function:	Reduce Shock	Trademark:	GUOMAT
Type:	Gas-Filled	Structure:	Double Convoluted
Gas Hole:	1/4 NPTF	Contitech:	FD 200-19
Highlight:	Convoluted Air Actuator , Firestone W01-358-6926 , Industrial Air Spring

Best Warranty Firestone W01-358-6926 Industrial Air Spring Convoluted Air Actuator

Product Introduction

Product Name	W01-358-6926 Air Suspension Airbag
Working Temperature	-40ºC bis +70ºC
Failure Testing	≥3 millions
Technical data	Top Cover Plate Diameter:160mm
	Bottom Cover Plate Diameter:160mm
	Gas Hole / Air inlet:1/4NPTF
	Rubber Bellows Diameter:224mm(MAX.251mm)
	The Working Stroke:MAX 274mm to MIN 95 mm
	Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
	Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
	Screw and Air Hole Distance of Top Cover Plate:38mm
	Screw Center Distance of Top Cover Plate:89mm
	Screw Center Distance of Bottom Cover Plate:89mm
Notice	These air suspension bags are aftermarket ones.They will replace the original air spring bags. -Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. -Instruction isn't included.Professional installation is recommended. -Contact us please for whatever we can help

OEM Number

Fire-stone:W01-358-6926,W013586926

Contitech:FD 200-19 504,161299

Triangle : 6325/4504

Original Parts

RR Load : LS20

Product Applications

Off-highway vehicles such as construction equipment, agricultural machinery, and mining equipment, where air springs are used for suspension and to improve ride comfort and stability.
Press equipment and part extraction, where air springs are used as actuators.
Test equipment and motion simulators , where air springs are used as vibration isolators and to reduce shock and noise.
Precision equipment and machinery, such as printing presses, where air springs are used for vibration isolation and leveling.
Textile machinery, where air springs are used to provide a smooth and stable ride, improve the quality of the finished product, and reduce the wear and tear on machinery.
Paper mill machinery, where air springs are used for suspension, levelling and vibration isolation.
Cheese and dairy industry machines
