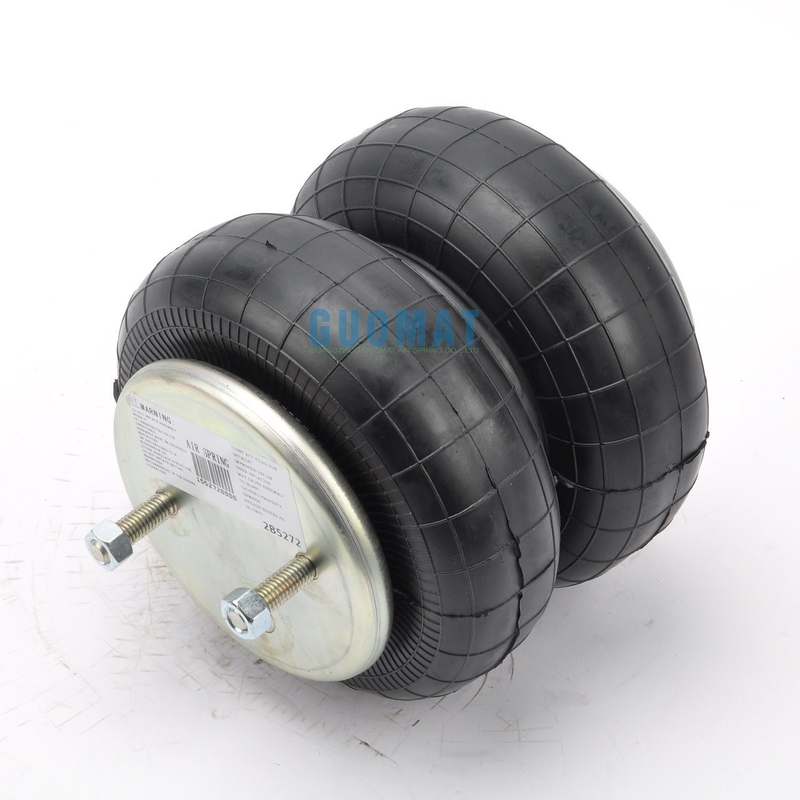

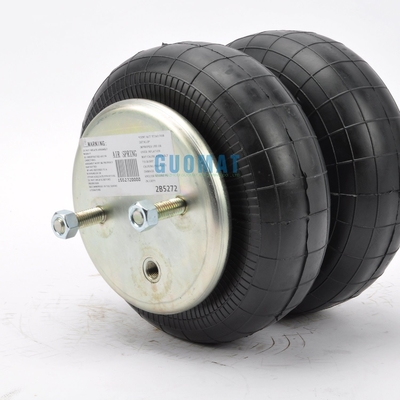

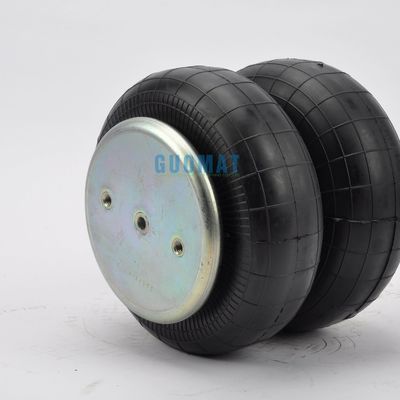

Truck Air Suspension 90557237 Cross Firestone W01-358-6943 Air Spring Assembly
Product Specification
| Top Cover Plate Diameter: 160mm |
| Bottom Cover Plate Diameter: 160mm |
| Gas Hole / Air inlet: 1/4NPTF |
| Rubber Bellows MAX Diameter: 262mm |
| The Working Stroke: MAX 325 mm to MIN 79 mm |
| Top Cover Plate Screw (Nut) Tooth: 2X1/2-13UNC |
| Bottom Cover Plate Screw (Nut) Tooth: 2X3/8-16UNC |
| Screw Center Distance of Top Cover Plate: 89mm |
| Screw Center Distance of Bottom Cover Plate: 89mm |
| Screw And Gas Hole Distance of Top Cover Plate: 44.5mm |
Cross Reference
Airspring Supplier: Fire-stone
Competitor/Supplier Number:W01-358-6943
Airspring Supplier: Contitech
Reference:161332
Competitor/Supplier Number: FD 200-25 426
Airspring Supplier: Goodyear
Reference: 578923206
Competitor/Supplier Number:2B9-250
Airspring Supplier: Triangle
Reference: 6332
Competitor/Supplier Number: 4426
Suspension Supplier: SAF Holland
Competitor/Supplier Number: 90557237
Suspension Supplier: Leland
Competitor/Supplier Number: SC2122
Suspension Supplier: SAF Holland
Competitor/Supplier Number: 90557237
Suspension Supplier: SAF Holland
FSIP OEM: W016756943
Suspension Supplier: Ridewell
Competitor/Supplier Number: 1003586943C
Suspension Supplier: Tuthill Technology
Competitor/Supplier Number: 6352
Suspension Supplier: Van Raden
Suspension Supplier: VSteer II
Competitor/Supplier Number: LiftBag
Suspension Supplier: VSteer II
Competitor/Supplier Number: LiftBag
Suspension Supplier: Watson & Chalin
Competitor/Supplier Number: AS0041
Specification
Although they serve similar functions, air springs are much less expensive than air cylinders and other springs. When deflated, air springs have a small footprint and are easy to handle and connect to machinery.
Maintenance procedures for air springs tend to be minimal, air springs require no lubrication, and there are no seals or guides that can become misaligned or damaged like other springs. Air springs should be stored at room temperature in a dry, dark place.
Due to their durability and simplicity, air springs are suitable for most industrial and commercial applications. Rubber and neoprene are prone to dry rot, so dehumidified conditions can shorten the life of an air spring.
Air spring bellows can also accept other types of fluids such as nitrogen, carbon, water and antifreeze.
FAQ
Q: What's your transportation?
A: Transportation by DHL, UPS, EMS, Fedex, Air freight, Sea freight. |
Q: After-sales service?
A: One year warranty for all kinds of products. If you have any questions after receiving the goods, please feel free to contact me, as an experienced manufacturer, you can rest assured of the quality and after-sales service. |
Q: When will make delivery ?
A: Delivery time is 3-8woring days. |
Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online. |
