FD 40-10 Contitech Air Bellow Double Convoluted Air Actuator G 1/8 Gas Hole

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B4010

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	FD 40-10	Brand New:	100%
Screw Tooth:	M8X1.25	Type:	Gas-Filled
Spring Material:	Rubber And Steel	Structure:	Double Convoluted
Manufacturer:	GUOMAT	Quality:	100% Tested
Highlight:	FD 40-10 Air Bellow

FD 40-10 Contitech Air Bellow Double Convoluted Air Actuator G 1/8 Gas Hole

Product Information

Top Cover Plate Diameter	90 mm
Screw Center Distance of Top Cover Plate	20 mm
Bottom Cover Plate Diameter	90 mm
Screw Center Distance of Bottom Cover Plate	20 mm
Top Cover Plate Screw(Nut) Tooth	M8×15
Bottom Cover Plate Screw(Nut) Tooth	M8×15
Gas Hole	G 1/8
Rubber Bellow Dia	145 mm
Min. Height	70 mm
Max. Height	170 mm
Total Storke	100 mm

Vibration Isolation-Dynamic Characteristic Values

Pressure P	[bar]	3	4	5	6	7	8	VoI.[I]
Height H(mm)	160	1.1	1.6	2.0	2.4	2.8	3.2	1.2
	140	1.6	2.2	2.8	3.3	3.9	4.5	1.1
	120	2.0	2.7	3.4	4.1	4.8	5.5	0.9
	100	2.3	3.1	4.0	4.8	5.6	6.4	0.7
	80	2.6	3.5	4.5	5.4	6.3	7.1	0.6

Double Convoluted Type Air Spring Other OEM Number

FD 40-10 CI	FD 70-13 CI
FD 110-15 CI	FD 120-17 CI
FD 120-20 CI	FD 200-19 CI
FD 200-22 CI	FD 200-25 CI
FD 330-22 CI	FD 330-30 CI
FD 530-22 CI	FD 530-22 CI
FD 530-30 CI	FD 530-35 CI
FD 960-22 CI	FD 1330-25 CI

Support and Services

Buy Norgren 2B4010 at the best prices and delivery conditions at suspensionairspring.com, which is a factory that has been engaged in the production of air springs for 18 years. We offer a large list of industrial automation products. We deliver our products to every country with the shortest deadlines. Buy original products of many brands from the GUOMAT company with guaranteed quality. We always answer customer queries quickly. With us, you will be able to get rid of cooperation with many suppliers, which greatly speeds up and facilitates your work.

FAQ

Q: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, you can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.

Q: When will make delivery ?
A: Delivery time is 3-8woring days.

Q: After-sales service?
A: One year warranty for all kinds of products. If you have any questions after receiving the goods, please feel free to contact me, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

Q: What's your transportation?
A: Transportation by DHL, UPS, EMS, Fedex, Air freight, Sea freight.

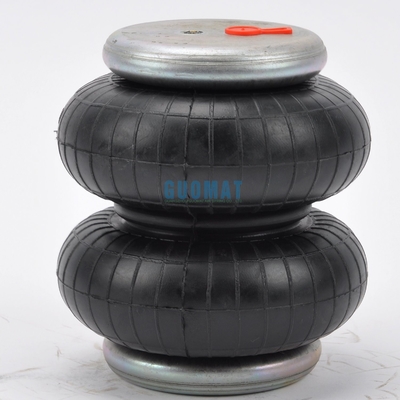

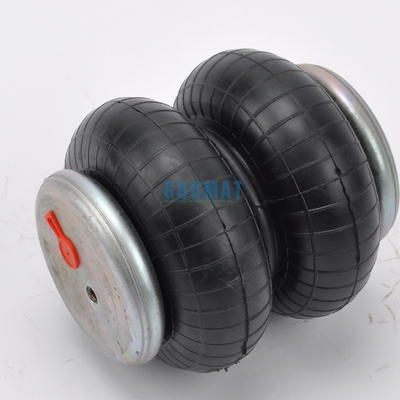

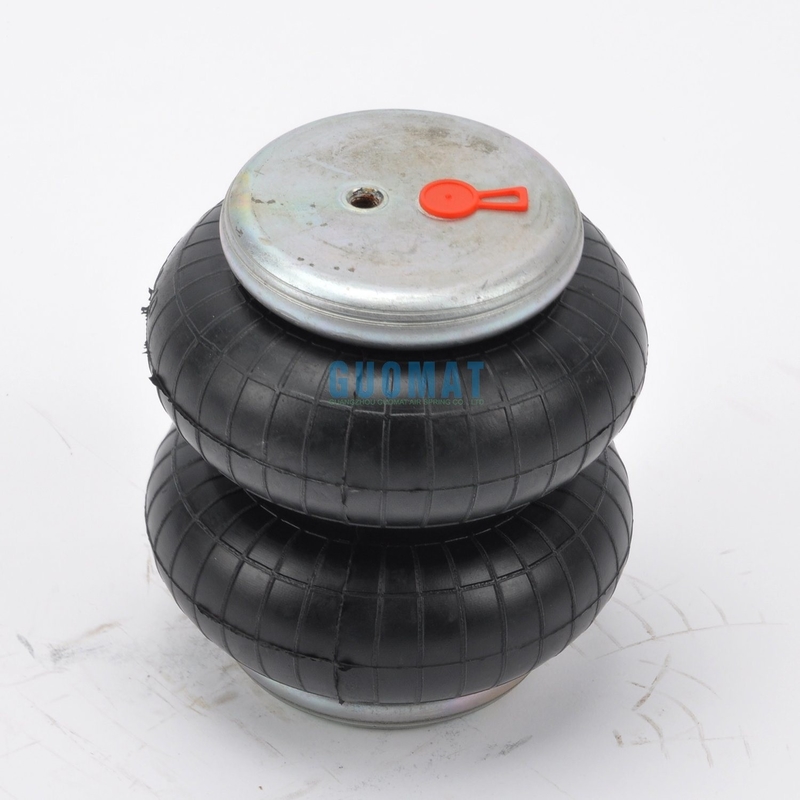

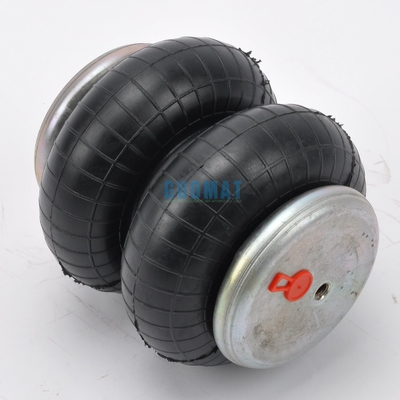

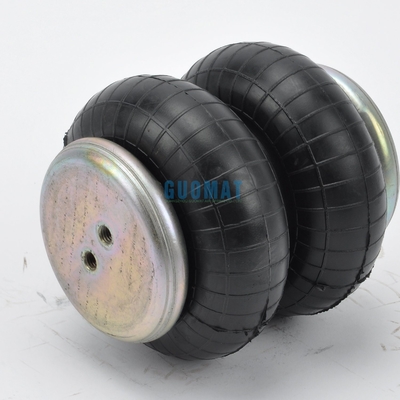

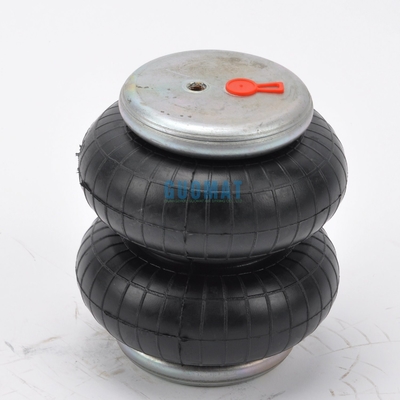

2B4010 Real Photos

FD 40-10 Contitech Air Bellow Double Convoluted Air Actuator G 1/8 Gas Hole 0
