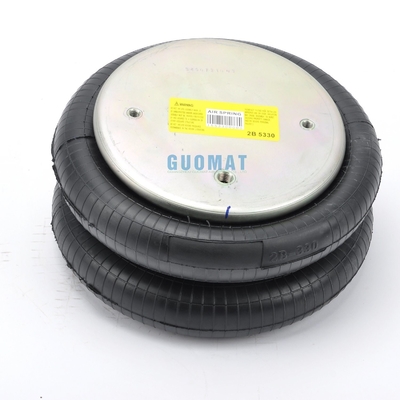

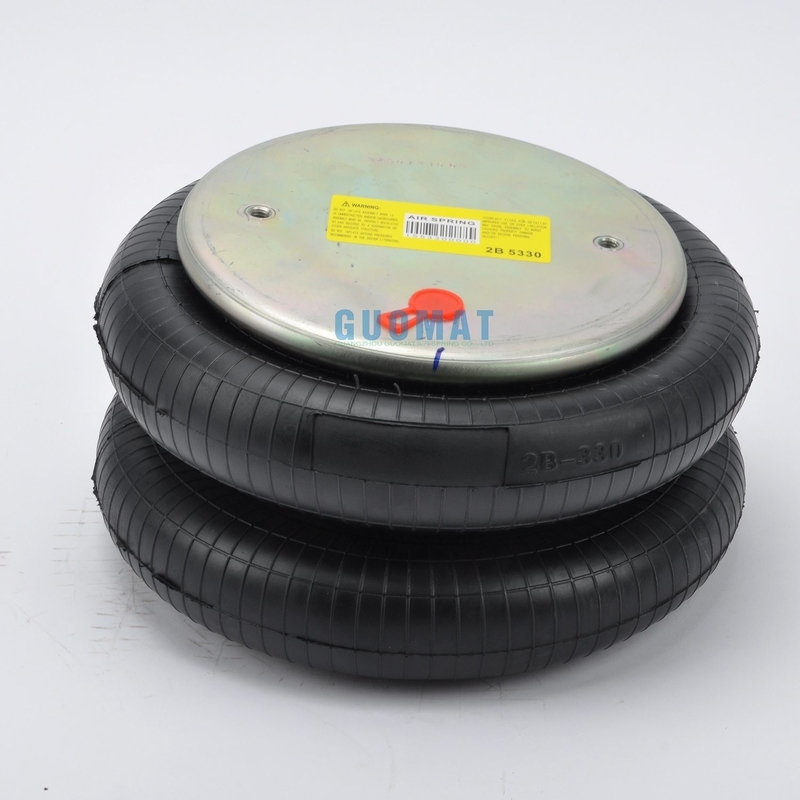

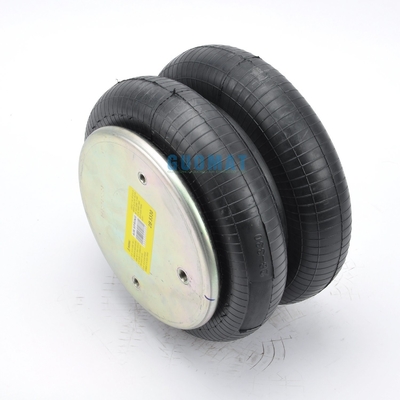

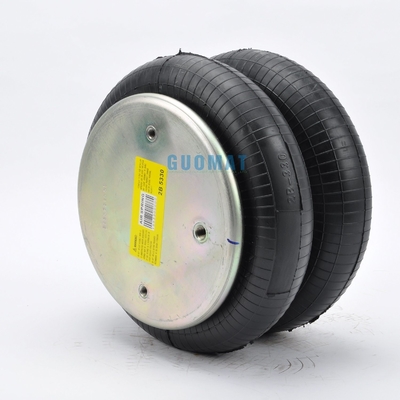

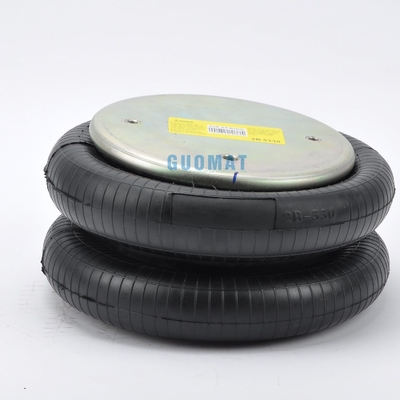

Rubber Air Bellow Bag 2B12-425 Contitech FD330-22363 Goodyear Suspension Spring For SAF Holland

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7180

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Condition:	Brand-New	Service:	Sample And OEM
Gas Hole:	1/4NPTF	Screw Tooth:	2X3/8-16unc
HS Code:	8708809000	Warranty:	1 Year
Type:	Gas-Filled	Customization:	Available \| Customized Request
Highlight:	SAF Holland Suspension Spring , Rubber Air Bellow Bag , 2B12-425 Suspension Spring

Rubber Air Bellow Bag 2B12-425 Contitech FD330-22363 Goodyear Suspension Spring For SAF Holland

Technical Data For ContitechDouble Convoluted Air Spring

Cover Plate	Top Cover Plate Diameter:231mm
Cover Plate	Bottom Cover Plate Diameter:231mm
Air Inlet	1/4 NPTF
Blind Nut	Screw Center Distance Of Top Cover Plate:157mm
	Screw Center Distance Of Bottom Cover Plate:157mm
	Screw And Gas Hole Diameter Of Top Cover Plate:73mm
	Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
	Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Rubber Bellow	Rubber Bellow MAX Diameter:325mm
	The Working Stroke:MAX 305mm to MIN 81mm
	Maximum Height:305mm
	Minimum Height:81mm
	Compression Height:224mm

Cross Reference

Firestone

W01-358-7180/22

Contitech

FD 330-22 363

Goodyear

2B12-425/311

Goodyear

578923309

Triangle

Airkraft

115061

3B-356

Vibracoustic

VSP2B22R7180

EI Ride

8030190

Kwiklok/Todco(Jifflox)

Leland

Sc 2075

Navistar

1685179C1

Hendrickson

1VA1816

Ridewell

1003587180C

SAF Holland

57007180

Watson&Chalinl

AS01541G

01881F

Peerless

0550 00001

Industrial Air Spring

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.

The products features low cost, wide use and easy operation.
It achieves long service life, and requires no maintenance and lubrication.
This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
It comes with no friction and soft medium.

Who Are Us

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

How We Do

1. OEM Manufacturing welcome: Product

2. Sample order is available.

3. We will reply you for your inquiry in 24 hours.

4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
