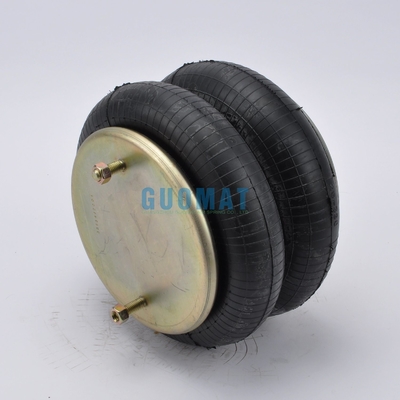

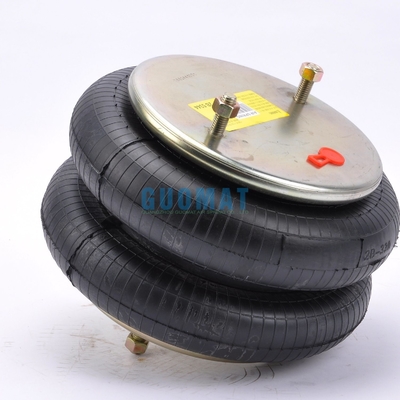

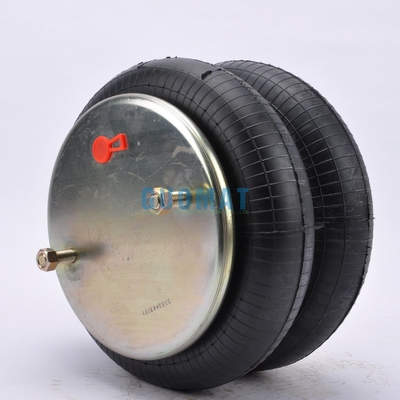

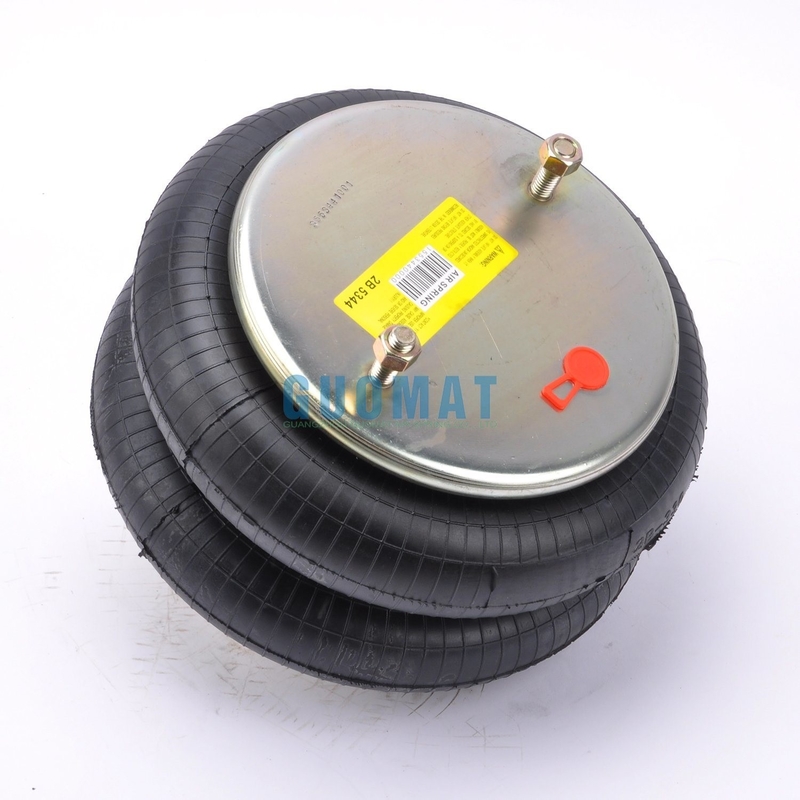

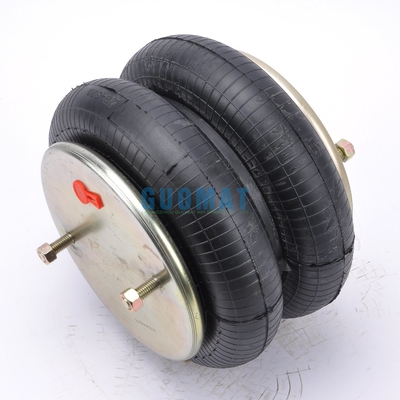

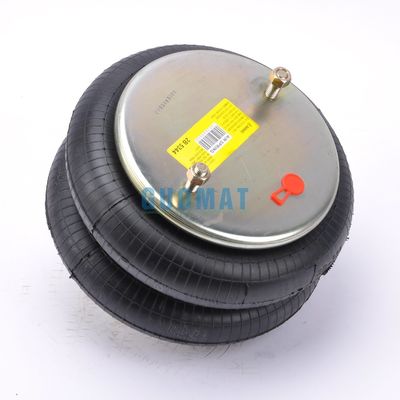

Goodyear Suspension Air Spring 2B12-300 Contitech Convoluted Rubber Air Bag FD330-22327

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7424

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD59.9-69.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Firestone:	W01-358-7424	Structure:	Double Convoluted
Condition:	Brand-New	Quality:	100% Tested
After-sales Service:	12 Months	Part:	Suspension Air Spring
Customization:	Available \| Customized Request	Contitech:	FD 330-22 327
Highlight:	FD330-22327 Suspension Air Spring , Contitech Convoluted Suspension Air Spring

Goodyear Suspension Air Spring 2B12-300/Contitech Convoluted Rubber Air Bag FD330-22327

Product Information
Cross OEM Original Equipment Manufacturer

Firestone
W01-358-7424

Contitech
FD 330-22 327

Goodyear
2B12-300

Triangle
6316/4327

Brake & Wheel
M3509

Dayton
3547424

Leland
Sc2024

Navistar
554785C1

Hendrickson
S13043

Ridewell
1003587424C

SAF Holland
Tc1442

Tuthill
6421

Watson & Chalin
As0009

Neway
90557014(AL-41&45)

R&S Truck &Body
1090215

Sauer
P10-755

V-olvo
3130504

Goodyear Air Spring Technical Data

Blind Nut
Top Cover Plate Screw (Nut) Tooth :2x1/2-13UNC
Screw Center Distance of Top Cover Plate:157.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2x1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm

Gas Hole/Air Hole/Air Inlet/Air Fitting
Gas Hole/Air Hole/Air Inlet:1/4NPT
Center Distance Between Air Inlet And Nut:73MM

Cover Plate
Top Cover Plate Diameter:231mm/9.00 inches
Bottom Cover Plate Diameter:231mm/9.00 inches

Rubber Bellows
Rubber Bellows MAX. Diameter:325mm/12.9 inches
Rubber Bellows Natural Diameter :298 mm/11.7 inches
The Working Stroke:MAX305mm to MIN 81mm
Maximum Height:305mm/12 inches
Minimum Height:81mm/4.12 inches
Compression Height:224mm/8.8 inches

About Air Spring

Air spring are being used in industrial applications as pneumatic actuators that play important roles in some of the most innovative modern machine design. Because of the Air spring actuators durability, resiliency in abrasive environments and overall performance, these can serve as replacements in applications using traditional pneumatic and hydraulic cylinders.

Company Information

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump.
