Black Tech Firestone Air Shocks W01-358-7180 Convoluted Air Rubber Bellows

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B7180

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Material:	Rubber And Steel	Air Spring Type:	Double Convoluted
Quality:	100% Tested	Origin:	Guangzhou, China
After-sales Service:	12 Months	Compressed Height:	3.2 Inches
Keywords:	Air Suspension Shock Absorber	Air Inlet:	1/4 NPT
Highlight:	Black Tech Firestone Air Shocks , Convoluted Firestone Air Shocks , Convoluted Air Rubber Bellows

Black Tech Firestone Air Shocks W01-358-7180 Convoluted Air Rubber Bellows

The Detailed Specifications

Top Cover Plate Diameter: 9 in.

Screw Center Distance of Top Cover Plate: 6.2 in.

Bottom Cover Plate Diameter: 9 in.

Screw Center Distance of Bottom Cover Plate: 6.2 in.

Top Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts

Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts

Gas Hole: 1/4 NPT

Rubber Bellow Dia: 12.9 in.

Min. Height: 3.2 in.

Max. Height: 12 in.

Product Technical Data

Dynamic Characteristics at 9.5 in. Design Height
Volume @ 100 PSIG = 782 in³			Natural Frequency
Gage Pressure (PSIG)	Load (Ibs.)	Spring Rate (Ibs./in.)	CPM	HZ
40	2050	729	112	1.86
60	3170	1036	107	1.79
80	4280	1373	106	1.77
100	5400	1668	104	1.74

OEM Number
Fire-stone:W01-358-7180
Fire-stone: W01 358 7180
Fire-stone: W013587180
Contitech: FD 330-22 363
Contitech: FD 330 22 363
Contitech: FD 33022363
Good Year: 2B12-425/311
Triangle: 6316/4363
Airkraft: 11506 1/3B-356
Vibracoustic: VSP2B22R7180
EI Rise: 8030190
Kwiklok/Todco(Jifflox)
Leland: Sc2075
Navistar: 1685179C1
Hendrickson: 1VA1816
Ridewell: 1003587180C
SAF Holland: 57007180
Watson&Chalinl: AS01541 G/01881F
Peerless: 0550 00001

Firestone Style 22 Other OEM Number

Blind nuts, 1/4 NPT

W01-358-7180, W01 358 7180, W013587180, WO1-358-7180, WO1 358 7180, WO13587180

Blind nuts, 1/4 NPT, bumper

W01-358-7400, W01 358 7400, W013587400, WO1-358-7400, WO1 358 7400, WO13587400

Blind nuts, 3/4 NPT

W01-358-7184, W01 358 7184, W013587184, WO1-358-7184, WO1 358 7184, WO13587184

Blind nuts, 3/4 NPT, bumper

W01-358-7185, W01 358 7185, W013587185, WO1-358-7185, WO1 358 7185, WO13587185

Countersunk steel bead rings, 1^5/8bolts, nuts, washers

W01-358-7431, W01 358 7431, W013587431, WO1-358-7431, WO1 358 7431, WO13587431

Rubber bellows only

W01-358-0226, W01 358 0226, W01350226, WO1-358-0226, WO1 358 0226, WO13580226

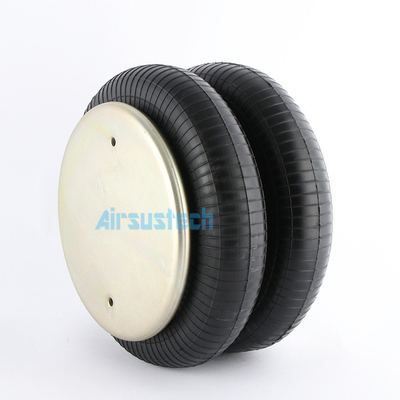

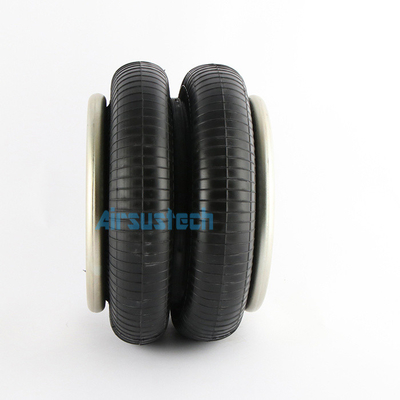

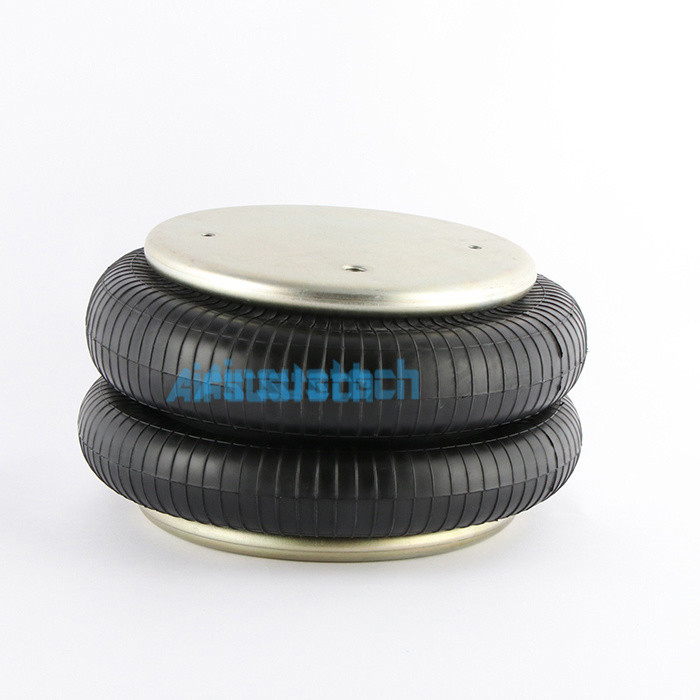

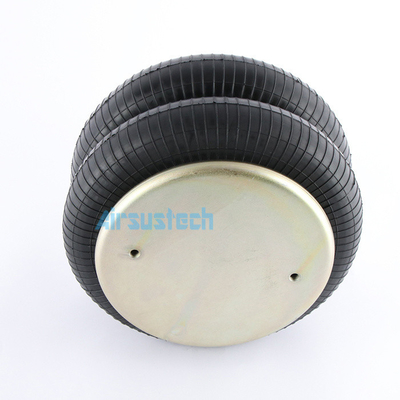

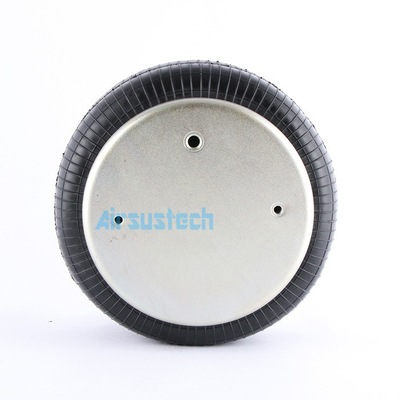

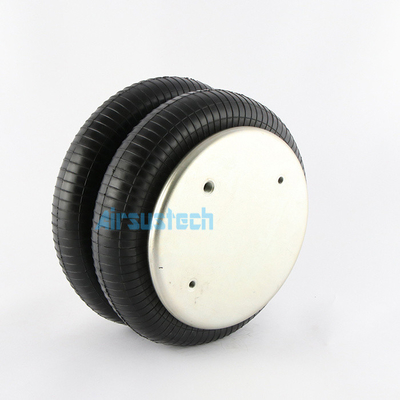

The Reated Picture

Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
