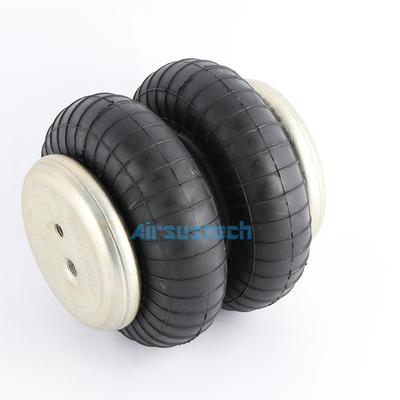

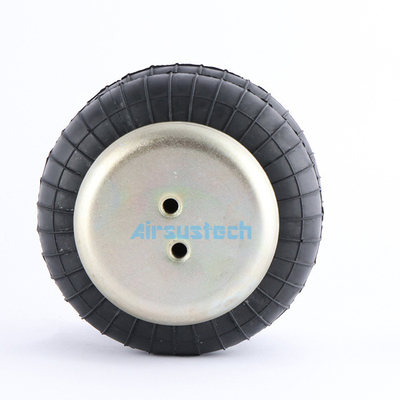

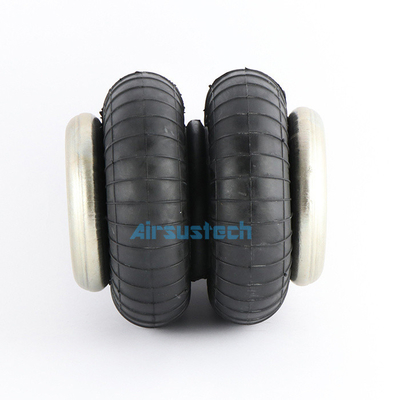

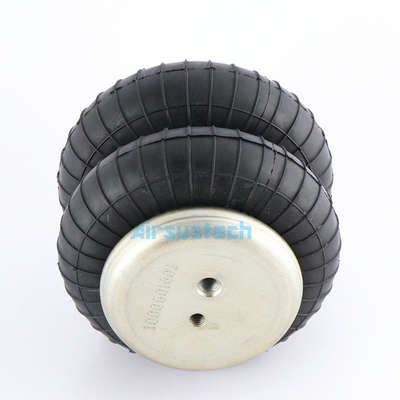

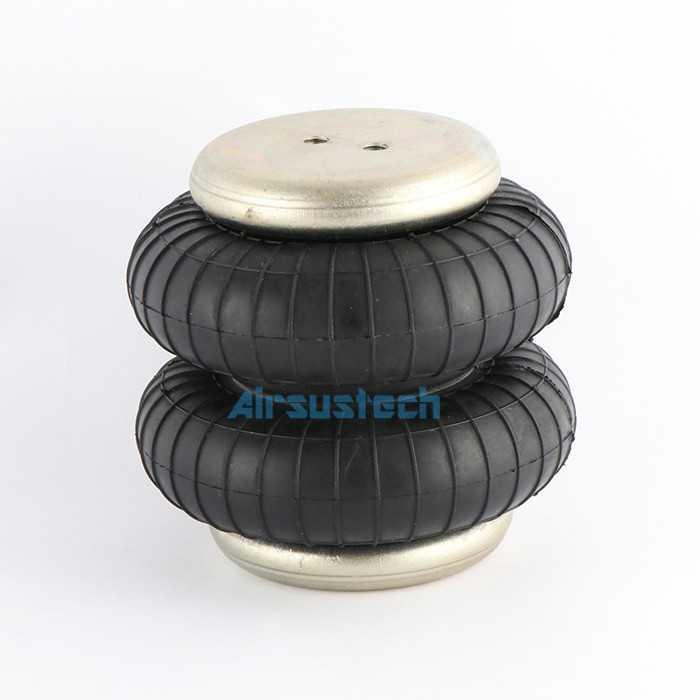

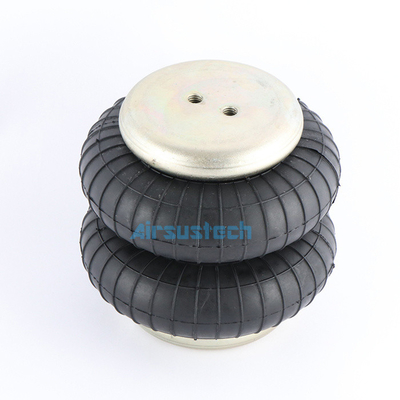

Contitech Dust Removal Equipment Double Convoluted Air Spring FD40-10 Air Spring

Contitech Dust Removal Equipment Double Convoluted Air Spring FD40-10 Air Spring

Product Specification

• Cover Plate

Top Cover Plate Diameter: 90 mm
Screw Center Distance of Top Cover Plate: 20 mm
Bottom Cover Plate Diameter: 90 mm
Screw Center Distance of Bottom Cover Plate: 20 mm

• Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: M8×15
Bottom Cover Plate Screw(Nut) Tooth: M8×15

• Gas Hole/Air Inlet/Air Fitting

Gas Hole: G 1/8

• Rubber Bellow

Rubber Bellow Dia: 145 mm
Min. Height: 70 mm
Max. Height: 170 mm

OEM Number

Double Convoluted Air Spring Other OEM Number

Industrial Equipment Overview

• Roll Tensioning Machines

Roll tensioning machines are used to maintain the appropriate tension in machinery that produces textiles, paper, and similar materials. They help to ensure that the material produced is of high quality. They can be manually controlled or automated, depending on the machinery.

• Clutch and Brake Systems

Clutch and brake systems are commonly used in production machinery to control the speed and direction of the machinery. They consist of a clutch that engages with the machinery and a brake that stops the machinery from rotating. Clutch and brake systems are used in machinery such as industrial drills, presses, and lathes.

• Textile Looms

Textile looms are used to produce fabrics. They consist of a frame, a warp beam, a cloth beam, and a shed. Different types of textile looms are used to produce a variety of fabrics, including silk, cotton, and polyester. The type of textile loom used depends on the desired final product.

• Paper Machines

Paper machines are used to produce paper from pulp. They consist of a headbox, a wire section, a press section, and a drying section. The pulp is first mixed with water and then fed into the headbox. From the headbox, the pulp is spread across a wire section where water is drained away, and the paper fibers begin to bond together. The press section removes more water from the paper, and the drying section removes the remaining water.

The Drawing Picture

Principle
The air spring is actually a carefully designed air bag composed of rubber and wire mesh layers, which contains a certain volume of compressed air cylinders. The rubber bladder itself does not provide force or support the load, but rather the air column within it carries the load.
GUOMAT has specialized in air spring more than 10 years. The brand named AIRSUSTECH air bags offer superior quality and performance.The AIRSUSTECH 2B 40-10 can replace the Contitech FD 40-10. They have the same performance.
