GUOMAT Air Spring 2B6910 Cross Firestone W01-358-6910 Double Convoluted Air Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	2B6910

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6910	Spring Material:	Rubber And Steel
Bellows Type:	Double Cylinder	Pressure Ability:	0.2-0.8 M PA
Air Inlet:	1/4NPTF	OEM Number:	W01-358-6910
Trademark:	GUOMAT	After-sales Service:	12 Months
Highlight:	Air Spring 2B6910 , W01-358-6910 Air Spring , W01-358-6910 Double Convoluted Air Bellow

GUOMAT Air Spring 2B6910 Cross Firestone W01-358-6910 Double Convoluted Air Bellow

Product Specification

Top Cover Plate Diameter	160 mm
Screw Center Distance of Top Cover Plate	89 mm
Bottom Cover Plate Diameter	160 mm
Screw Center Distance of Bottom Cover Plate	89 mm
Top Cover Plate Screw(Nut) Tooth	3/8-16 UNC
Bottom Cover Plate Screw(Nut) Tooth	3/8-16 UNC
Air Hole	1/4 NPTF
Rubber Bellow Dia	224 mm
Minimum Height	75 mm
Maximum Height	260 mm

OEM NO.

Firestone

W01-358-6910, W01 358 6910, W013586910

WO1-358-6910, WO1 358 6910, WO13586910

Taurus

KF218-6910, KF218 6910, KF2186910

Contitech

FD 200-19 320, FD 200 19 320, FD20019320

Triangle

6325, 4320

Brake&Wheel

M3501

Dina

A812719, AZ812719

Leland

Sc2011

Navistar

554783C1

Hendrickson

S8768, 458433

Ridewell

1003586910C

SAF Holland

57006910

Trailers De

133128

Tuthill

Watson&Chalin

AS-0001, AS-0156G

Supports And Services

From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.

Global Manufacturing and Sales Facilities offer our customers:
Highly Trained Distribution Network
State-of-the Art Engineering Capabilities
Custom Solution Development
Customer Service Specialists
Multiple Open Communication Channels

Through constant evaluation and testing, we bring our customers the most cost effective products with more features, greater performance and improved ease of use for every application requirement.

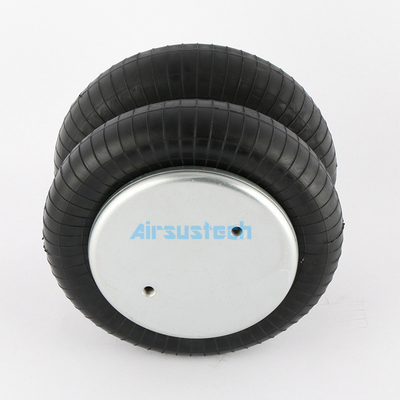

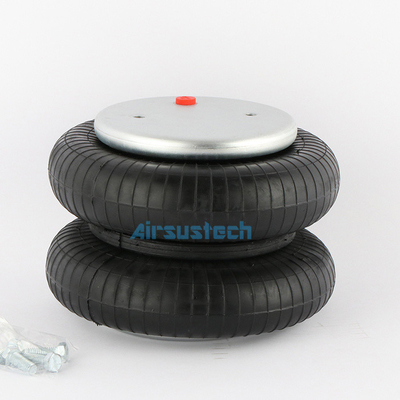

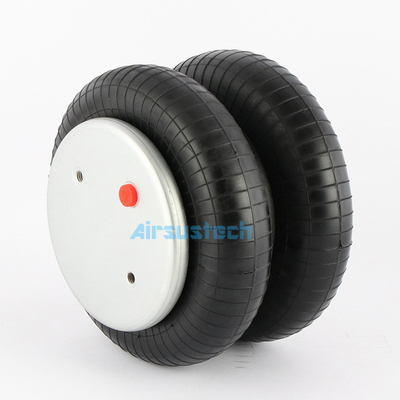

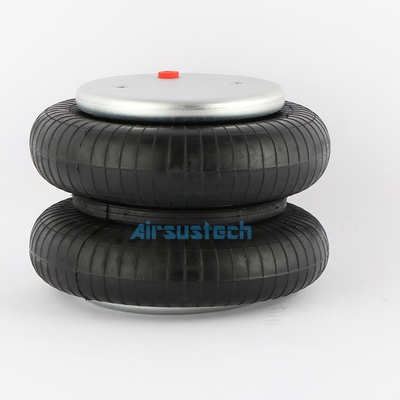

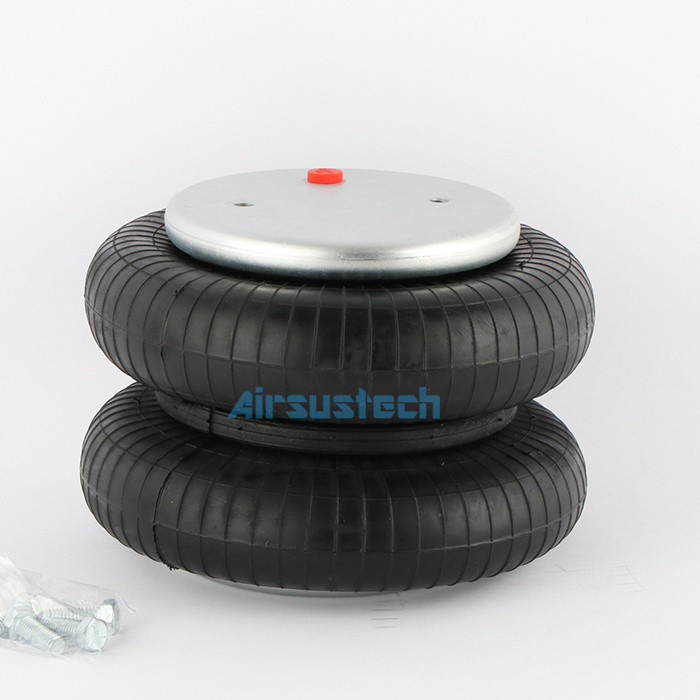

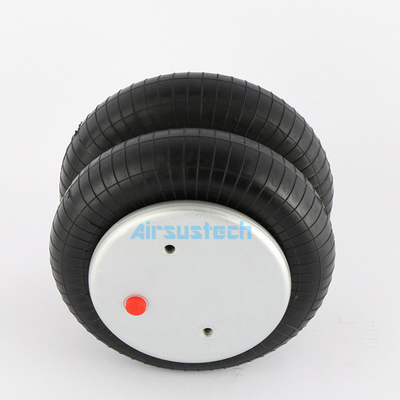

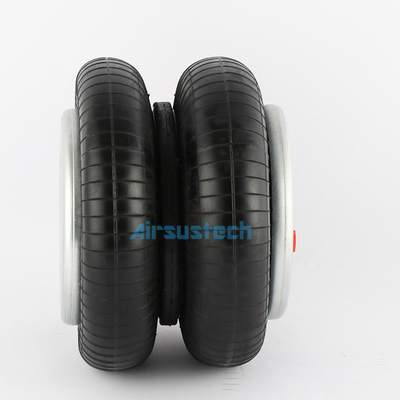

The Detailed Picture

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
