Rubber Tripricate Covoluted Air Spring No.3B 2300 Style Bags
3B2300 Tecnical Data
| Nut/blind nut |
| Top plate screw (nut) teeth | 2 x 3 / 8-16UNC |
| The screw center distance of the top cover plate | 44.5 mm |
| Screw (nut) teeth of the bottom cover plate | 2 x 1 / 2-13UNC |
| Screw center distance of bottom cover plate | MIDDLE |
| Air hole/air inlet/air fitting |
| Air hole/air inlet | 1/2-14NPT |
| Center distance between air inlet and nut | 22 mm |
| cover |
| Top plate diameter (width) | 113 mm |
| Diameter of bottom cover (width) | 113 mm |
| Natural diameter of rubber bellows | 125 mm |
| Maximum diameter of rubber bellows | 145 mm |
| Design height | 187mm |
| Bellows Number | 2300 |
| others |
| Bumper block/bumper block | No bumper
|
| Belt loop/Belt loop | two pieces |
The competitive advantage of the product
1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.
2. For products with the same price in the market, Gaomat strives for better quality. For products of the same quality, Gaomat strives for lower prices.
3. More than ten years of production technology, products cover the world.
Purpose of Suspension Air Springs
Suspension air springs, also known as air bags or air bellows, serve several important purposes in vehicle suspension systems. Here are the key points:
Smooth and Constant Ride Quality: The primary purpose of suspension air springs is to provide a smooth and constant ride quality for vehicles. Air springs are designed to absorb shocks and vibrations from the road, resulting in a more comfortable driving experience.
Self-Leveling: Many modern vehicles equipped with air suspension systems feature self-leveling capabilities. This means that the air springs automatically adjust the vehicle's ride height to maintain a level position, regardless of the load or weight distribution .
Load Support: Air springs are particularly useful in heavy vehicle applications, such as buses, trucks, and trailers. They provide load-carrying support by distributing the weight evenly across the suspension system . When the vehicle is loaded, the air springs compress and become stiffer, ensuring that the vehicle remains at a fixed height regardless of the load.
Adjustable Ride Height: Another advantage of air springs is their ability to adjust the ride height of the vehicle. By inflating or deflating the air springs, the driver can raise or lower the vehicle's suspension to adapt to different driving conditions or preferences .
Improved Control and Handling: Air springs can enhance vehicle control and handling by providing better absorption of bumps and cracks in the road surface. This allows for improved traction and stability, especially in off-road or uneven terrain situations.

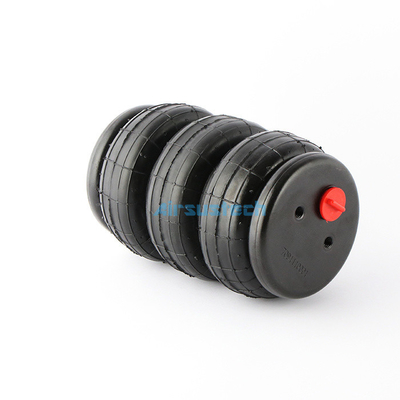

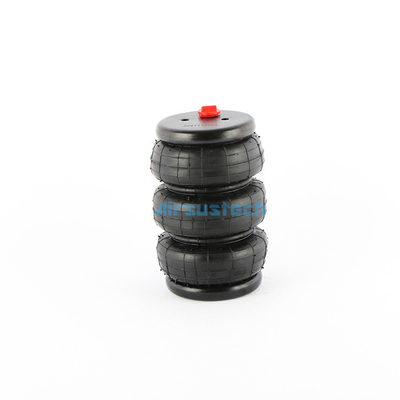

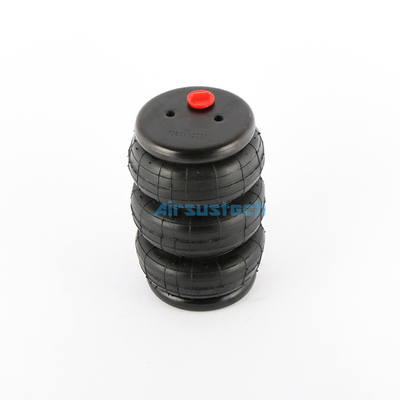

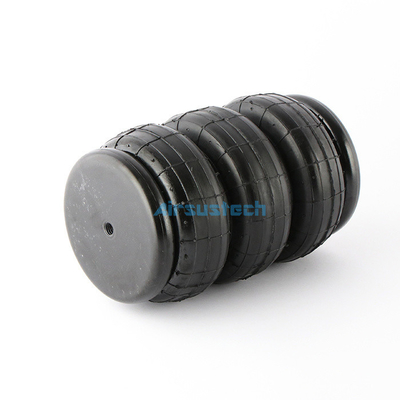

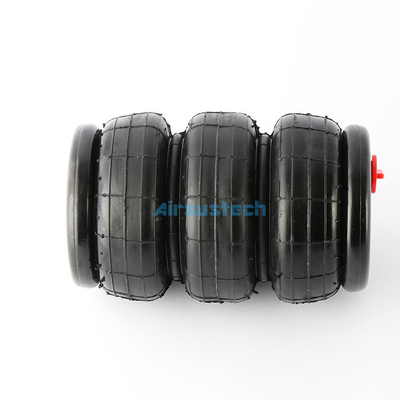

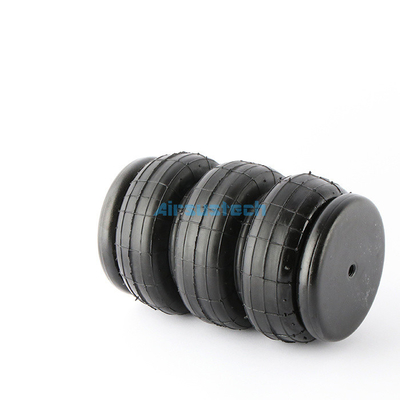

The Image
