W01-358-6943 Firestone Double Covoluted Style Rubber Air Spring FD 200-25 426 Contitech For Small Machine

W01-358-6943 Firestone Double Covoluted Style Rubber Air Spring FD 200-25 426 Contitech For Small Machine

  • W01-358-6943 Firestone Double Covoluted Style Rubber Air Spring  FD 200-25 426 Contitech For Small Machine
  • W01-358-6943 Firestone Double Covoluted Style Rubber Air Spring  FD 200-25 426 Contitech For Small Machine
  • W01-358-6943 Firestone Double Covoluted Style Rubber Air Spring  FD 200-25 426 Contitech For Small Machine
  • W01-358-6943 Firestone Double Covoluted Style Rubber Air Spring  FD 200-25 426 Contitech For Small Machine
  • W01-358-6943 Firestone Double Covoluted Style Rubber Air Spring  FD 200-25 426 Contitech For Small Machine
  • W01-358-6943 Firestone Double Covoluted Style Rubber Air Spring  FD 200-25 426 Contitech For Small Machine
W01-358-6943 Firestone Double Covoluted Style Rubber Air Spring  FD 200-25 426 Contitech For Small Machine
Product Details:
Place of Origin: Guangzhou,China
Brand Name: GUOMAT
Certification: ISO/Ts16949:2009
Model Number: 2B6943
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD59.9-69.9/PC
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-7 Working Days
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Contact Now
Detailed Product Description
Part Name: Air Spring Pressure Ability: 0.2-0.8 M PA
Key: Firestone W01-358-6943 HS Code: 8708809000
After-sales Service: 12 Months Position: Front/Rear
Convolutions: 2 Goodyear: 2B9-250
Highlight:

Double Covoluted Style Rubber Air Spring

,

W01-358-6943 Rubber Air Spring

W01-358-6943 Firestone Double Covoluted Style Rubber Air Spring FD 200-25 426 Contitech For Small Machine
2B6943 Tecnical Data


Nut/blind nut
Top plate screw (nut) teeth2 x 1/2-13UNC
The screw center distance of the top cover plate89 mm
Screw (nut) teeth of the bottom cover plate2 x 3/8-16UNC
Screw center distance of bottom cover plate89mm
Air hole/air inlet/air fitting
Air hole/air inlet1/4NPT
Center distance between air inlet and nut44.5 mm
cover
Top plate diameter (width)160 mm
Diameter of bottom cover (width)160 mm
Maximum height325mm
Minimum height79mm
Working strokeminimum79 mm to maximum 325 mm
others
Bumper block/bumper blockNo bumper

Belt loop/Belt loopone pieces

Cross OEM NO.

FirestoneW01-358-6943
FirestoneW01 358 6943
FirestoneW013586943
ContitechFD200 25 426
ContitechFD 200-25 426
ContitechFD200 25 426
Contitech161332
Goodyear2B9-250
Goodyear2B9 250
Goodyear578923206
Triangle6332
Watson&ChalinAS-0041
Neway/SAF90557237
Ridewell1003586943C
Tuthill6352





The competitive advantage of the product


1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.

2. For products with the same price in the market, Gaomat strives for better quality. For products of the same quality, Gaomat strives for lower prices.
3. More than ten years of production technology, products cover the world.





About GUOMAT Air Spring

Air springs are available in single, double and triple curl and reversible sleeve types,



GUOMAT manufactures a wide range of shock-absorbing air springs that can be replaced in almost all vehicle air suspension systems.



Although air springs may seem simple, they are actually a highly complex product. Even small changes in design, construction methods, or materials used can make a huge and noticeable difference in performance.



It makes sense to specify GUOMAT springs. The trade name on air springs guarantees you the benefit of the latest technological developments and improvements. This is your assurance that the product is not only engineered and performs flawlessly, but will also perform exceptionally well over the long term in real-world use.

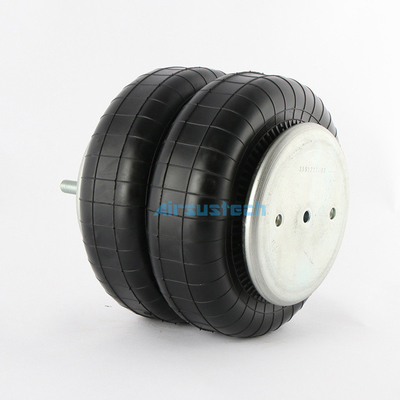

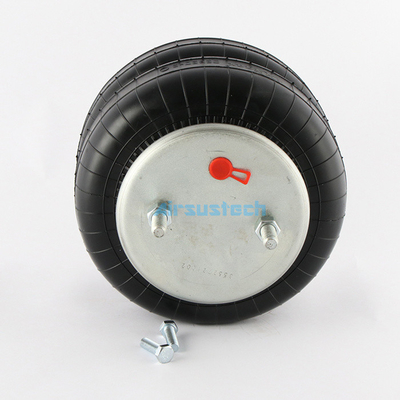

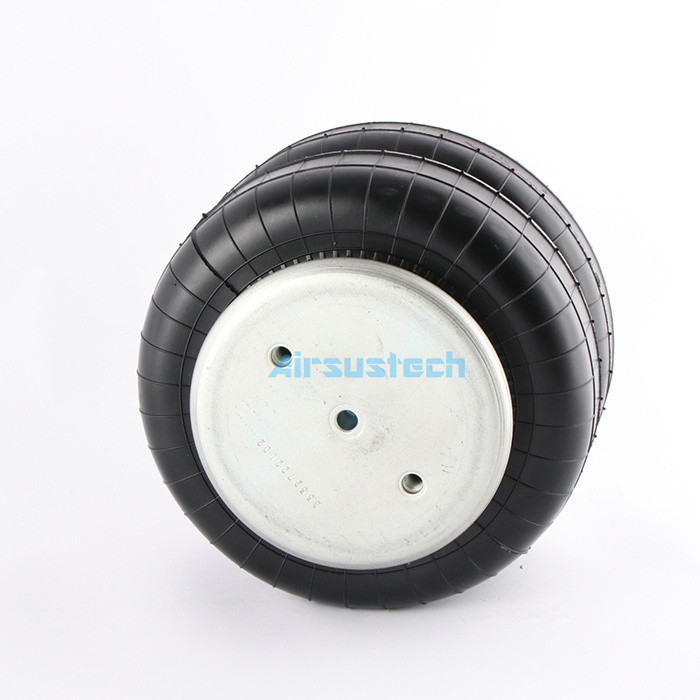

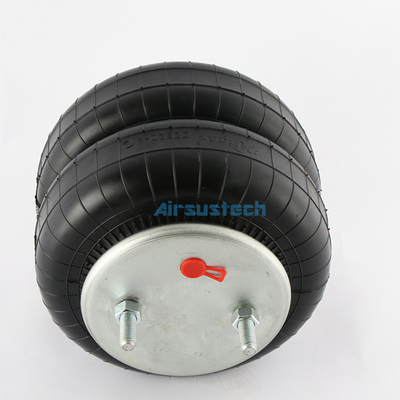

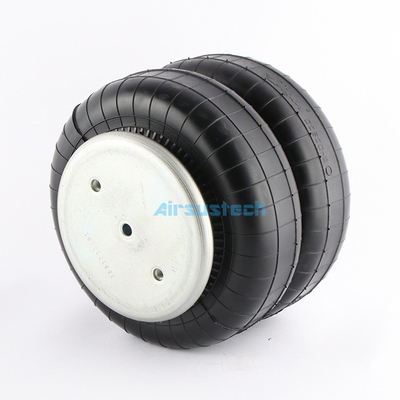

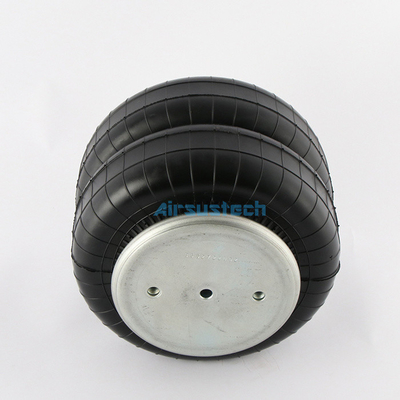

The picture of the product


W01-358-6943 Double Covoluted No. 2b6943 Style Rubber Air SpringW01-358-6943 Double Covoluted No. 2b6943 Style Rubber Air Spring
