Dunlop Single Convoluted Air Suspension SP2008 Industrial Lifting Air bags

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	1B4.5*1

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B4.5*1	Spring Material:	Rubber And Steel
Pressure Ability:	0.2-0.8 M PA	Key:	Dunlop SP2008
Trademark:	GUOMAT	Origin:	Guangzhou, China
Type:	Gas-Filled	Customization:	Available \| Customized Request
Highlight:	Single Convoluted Air Suspension SP2008 , Industrial Lifting Air bags , Industrial Lifting Air Suspension SP2008

Dunlop Single Convoluted Air Suspension SP2008 Industrial Lifting Air bags

1B4.5×1 Air Spring Specification

Operation mode: single action

Stroke length: 40 mm

Stomatal size: G3/8

Nominal diameter: 4×1/2"

Operation mode: single action

Working pressure: 0-8 bar

Stroke length: 80 mm

Theoretical power: 5750 N

Certification-REACH: available on request

Certification-RoHS compliant: available on request

Size-Diameter: 125.0 mm

Size-Length: 65.0 mm

Size-weight: 0.950 kg

Size-Unit of Measurement: EA

Other OEM Number

Airsustech	4.5×1
DUNLOP	4 1/2 X 1 \|
Dunlop	SP2008
Dunlop	SP 2008
Dunlop	4.5x1.Aluminuim
FIRE-STONE	W01R584043
FIRE-STONE	W01-R58-4043
FIRE-STONE	W01 R58 4043

Air Spring Characteristics

Low installation height

In comparison to conventional pneumatic cylinders, ContiTech air actuators contain no piston rod, making it possible to reduce
the design height considerably.This allows compact constructions to be made.

Angular movement

Depending on the type, GUOMAT air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.

Low purchase price

The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.

FAQ

Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.

Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

Q: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit;

2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.

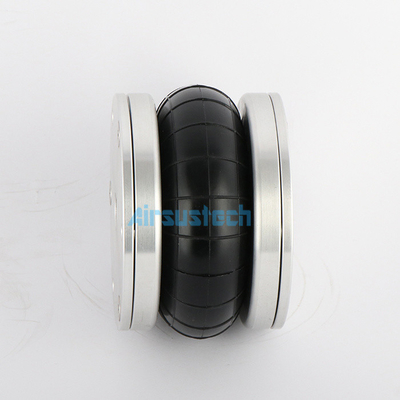

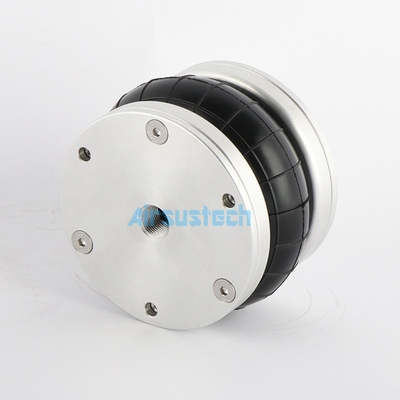

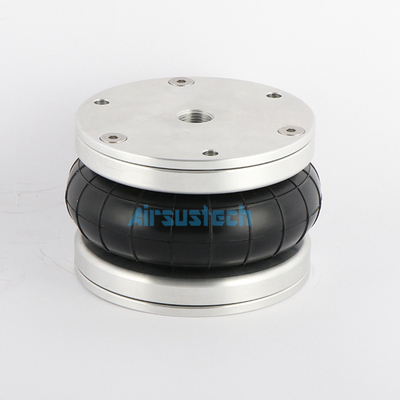

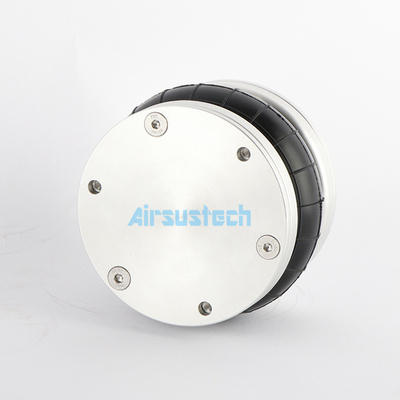

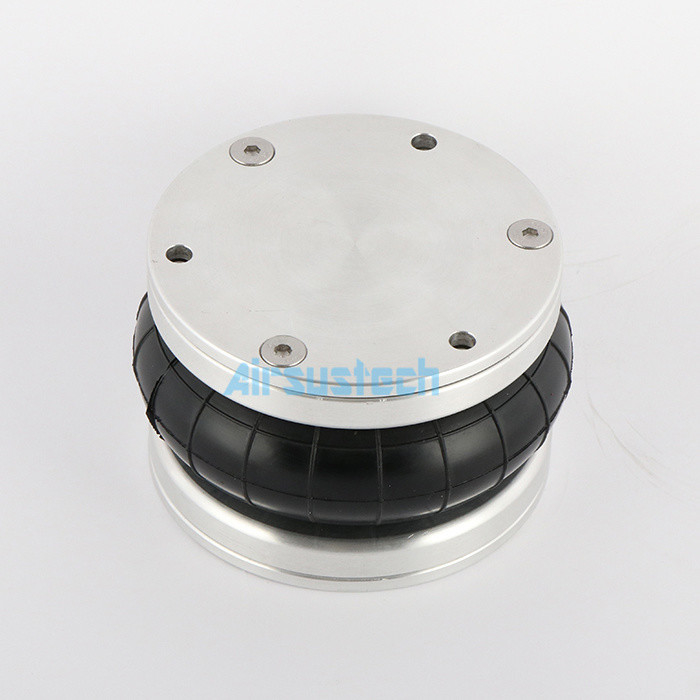

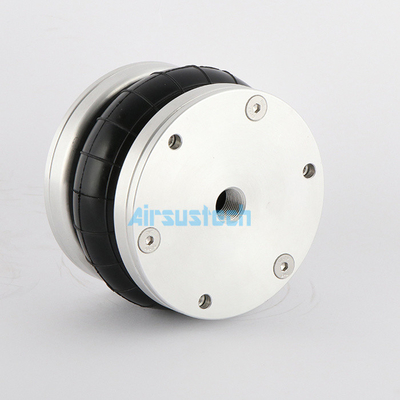

The Picture of The Product

Dunlop Single Convoluted Air Suspension SP2008 Industrial Lifting Air bags 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Dunlop Single Convoluted Air Suspension SP2008 Industrial Lifting Air bags 2

Factory workshop
