Air Shock Suspension FD138-18 Continental Bellows Style High Performance

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B8*2T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	Norgren M/31082	Bellows Structure:	Double Convoluted
Fuction:	Shock Absorption	Nut/Blind Nut Type:	4×M10
Brand Name:	Guomat	Operation Type:	Gas-Filled
Minimum Height:	75 MM	Maximum Height:	250 MM \| Customized Request
Highlight:	High Performance Air Shock Suspension , FD138-18 Air Shock Suspension

Air Shock Suspension FD138-18 Continental Bellows Style High Performance

2B8*2T Information

Nut/blind nut

Top plate screw (nut) teeth: 4×M10
The screw center distance of the top cover plate: 155.5mm
Screw (nut) teeth of the bottom cover plate: 4×M10
The screw center distance of the bottom cover plate: 155.5 mm

Air hole/air inlet/air fittings

Air hole/air inlet: G1/2

The screw center distance between the air hole and the nut: 72.75mm

Rubber Bellows

Maximum diameter of rubber bellows: 230 mm
Natural diameter of rubber bellows: 205 mm
Working stroke: minimum 75 mm to maximum 250 mm
Maximum height: 250 mm
Minimum height: 75 mm
Stroke height: 175 mm

Bottom Cover Plate

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 155.5 mm
Bottom Plate Diameter: 184 mm
Bottom Plate Hole Quantity: 4
Bottom Plate Type: Steel

Top Cover Plate

Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 155.5 mm
Top Plate Diameter: 184 mm
Top Plate Hole Quantity: 5
Top Plate Type: Steel

2B8*2T Refer OEM Number

ORIA D SERIES	FIRESTONE	DUNLOP PNEURIDE	DUNLOP SPRINGRIDE	CONTITECH	NORGREN	PARKER
8''×2	W01-R58-4055	8''×2	SP1490	FD 138-18 DS	M/31082	9109011
8'×2	W01 R58 4055	8'×2	SP 1490	FD 138 18 DS	M 31082
8×2	W01R584055	8×2		FD138-18 DS	M31082
	WO1-R58-4055			FD 138-18DS
	WO1 R58 4055			FD13818DS
				FD138-18DS

2B8*2T Technical Data

Force @ 5 bar at stroke of 100 mm [kN]: 13.7

Force @ 5 bar at stroke of 150 mm [kN]: 10.1

Force @ 5 bar at stroke of 200 mm [kN]: 6.68

Force @ 5 bar at stroke of 220 mm [kN]: 5.16

Six Reasons to Choose Us

Hight stability
In situ installation
Ride comfort
Safe and durable
Effective shock absorption
Reduce the sound

FAQ

Q: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, you can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.

Q: When will make delivery ?
A: Delivery time is 3-8woring days.

Q: After-sales service?
A: One year warranty for all kinds of products. If you have any questions after receiving the goods, please feel free to contact me, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

Q: What's your transportation?
A: Transportation by DHL, UPS, EMS, Fedex, Air freight, Sea freight.

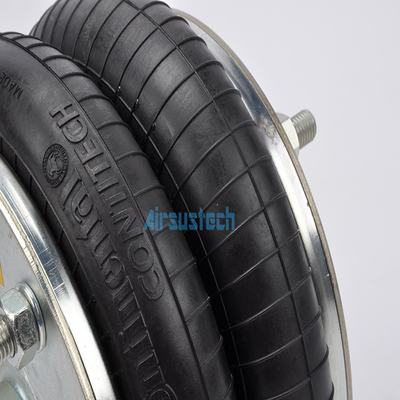

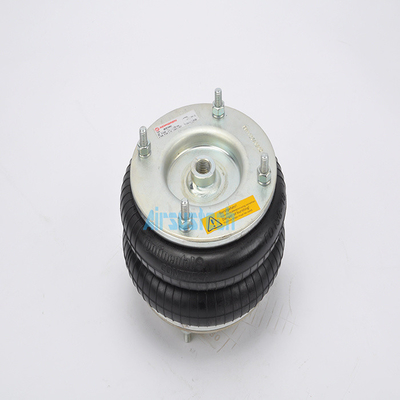

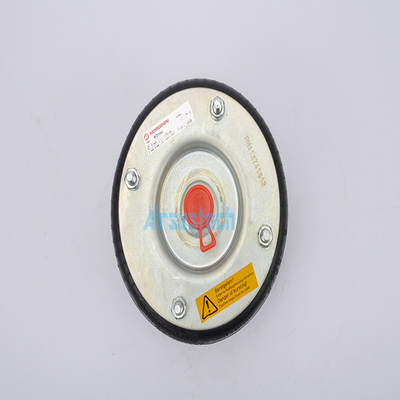

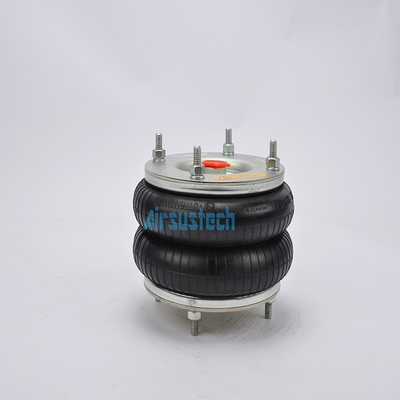

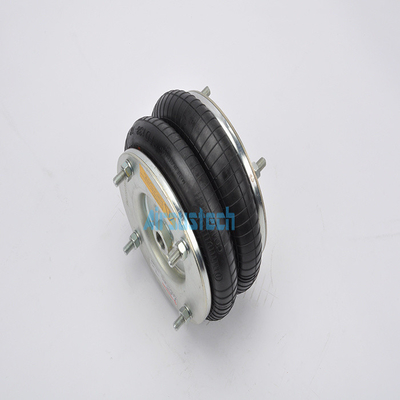

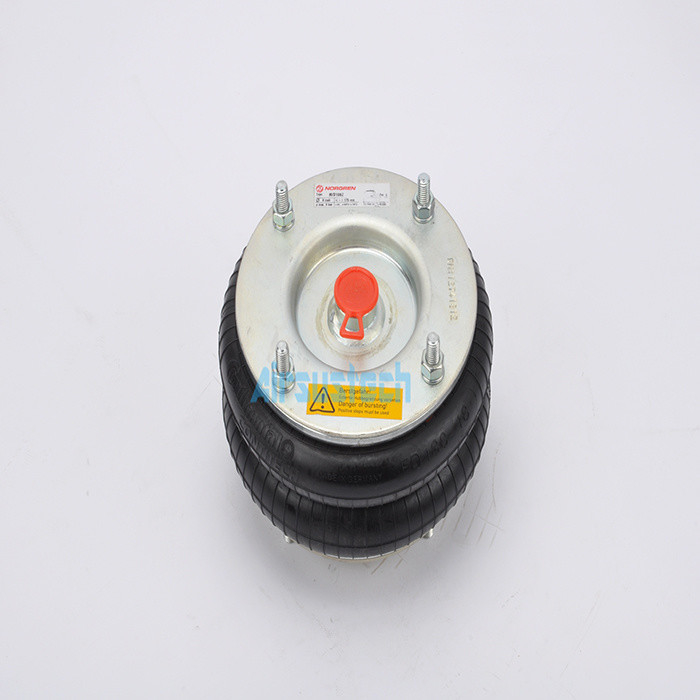

2B8*2T Air Spring Images
