S-240-2r Yokohama Double Convoluted Bellows Type With Hoop Air Shocks Absorption

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-240-2

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item Number:	F-240-2	Structure:	Double Convoluted
Quality:	100 % Tested	Fuction:	Reduce Shock
Yokohama:	S-240-2r	Trademark:	GUOMAT
After-sales Service:	12 Months	Design Height:	98 MM
Highlight:	Yokohama Double Convoluted Bellows , S-240-2r Yokohama Double Convoluted Bellows , Double Convoluted Bellows Type With Hoop

S-240-2r Yokohama Double Convoluted Bellows Type With Hoop Air Shocks Absorption

F-240-2 Air Spring Specification

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Reference No.	Design Height(mm)	Maximum Height(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
F-240-4	S-240-4	206	316	111	±80	300
F-240-3	S-240-3	152	232	82	±60	300
F-240-2	S-240-2	98	148	53	±40	300
F-240-1	S-240-1	72	110	40	±30	340

Other Air Spring Type Technical Data

GUOMAT NO.	Reference No.	Standard Height,Internal Pressure 0.49 M pa When The General Value					Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
GUOMAT NO.	Reference No.	Effective Area (Cm2)	Volume(L)	Load (K n)	Dynamic Spring Parameters (N/Min)	Vibration Frequency (Hz)	Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
F-240-4	S-240-4	450	10.1	22.2	235	1.6	0.88	2.9-3.9
F-240-3	S-240-3	450	7.3	22.2	324	1.9	0.88	2.9-3.9
F-240-2	S-240-2	450	4.4	22.2	520	2.4	0.88	2.9-3.9
F-240-1	S-240-1	450	3.5	22.2	765	2.9	0.69	2.9-3.9

Refer No.

Model NO.	OEM NO.
F-350-4/S-200-3	YOKOHAMA S-350-4/S-200-3/S-100-3/S-90-3
F-240-4R	YOKOHAMA S-240-4R
M-120-2	YOKOHAMA S-120-3R
MB-90-3	MB-90-3
4B4001	100, 4B400
F-350-3	YOKOHAMA S-350-3R
F-120-2	YOKOHAMA S-120-2R
F-120-3	YOKOHAMA S-120-3R
F-100-3	YOKOHAMA S-100-3R
F-100-2	YOKOHAMA S-100-2R
F-200-2	YOKOHAMA S-200-2R
F-240-3	YOKOHAMA S-240-3R
F-450-4	YOKOHAMA S-450-4R
F-200-3	YOKOHAMA S-200-3R
F-160-4	YOKOHAMA S-160-4R
F-160-3	YOKOHAMA S-160-3R
F-160-2	YOKOHAMA S-160-2R
F-240-2	YOKOHAMA S-240-2R
F-300-3	YOKOHAMA S-300-3R
F-300-4	YOKOHAMA S-300-4R
F-350-2	YOKOHAMA S-350-2R
F-400-3	YOKOHAMA S-400-3R
F-400-4	YOKOHAMA S-400-4R
F-400-5	YOKOHAMA S-400-5R
F-450-3	YOKOHAMA S-450-3R
F-450-4	YOKOHAMA S-450-4R
F-500-2	YOKOHAMA S-500-2R
F-500-3	YOKOHAMA S-500-3R
F-500-4	YOKOHAMA S-500-4R
F-500-5	YOKOHAMA S-500-5R
F-600-4	YOKOHAMA S-600-4R
F-600-5	YOKOHAMA S-600-5R

Air Bellows Characteristics

Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators.
Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model.
They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional
pneumatic cylinders.
All models are single acting only. The return stroke is provided in part by the natural spring action of the bellows but more usually by the load itself.
The simplicity of construction provides an extremely long, virtually maintenance-free service life even under arduous
conditions.
Air bellows are suitable for vibration applications i.e. device feeders at high frequency

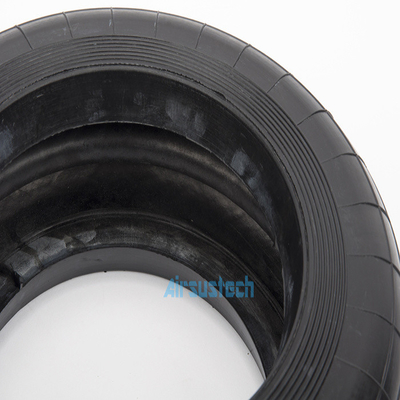

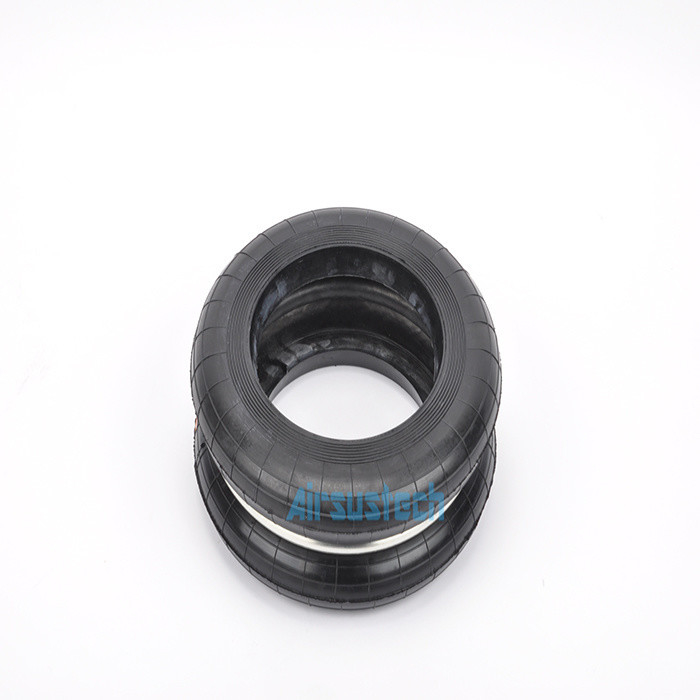

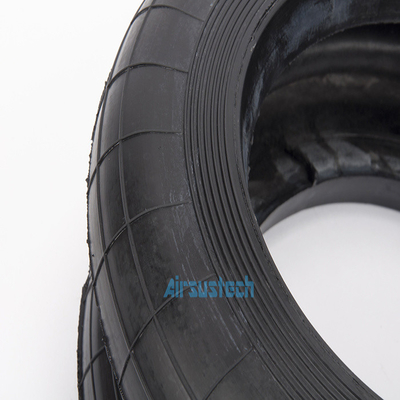

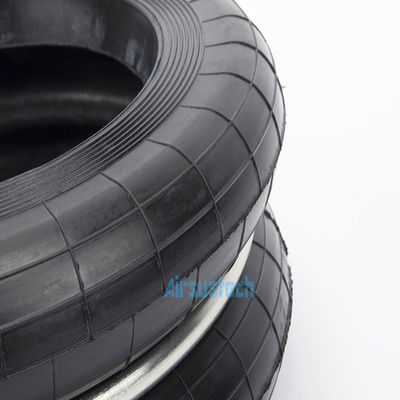

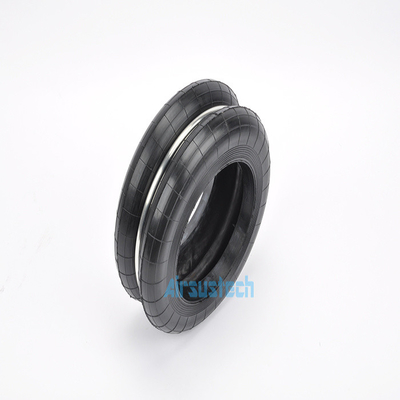

F-240-2 Air Spring Images

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
S-240-2r Yokohama Double Convoluted Bellows Type With Hoop Air Shocks Absorption 2

Factory Workshop
