Brand New Convoluted Suspension Air Spring GF400/215-2 Rubber Bellows Only

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	GF400/215-2

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	GF400/215-2	Material:	Rubber
Condition:	100% Brand-New	Key:	GF400/215-2
Brand:	GUOMAT Air Spring	Compressed Height:	81 MM
Expanded Height:	325 MM	Air Spring Type:	Double Convoluted
Highlight:	Rubber Bellows Suspension Air Spring , GF400/215-2 Suspension Air Spring , Brand New Suspension Air Spring

Brand New Convoluted Suspension Air Spring GF400/215-2 Rubber Bellows Only

GF400/215-2 Rubber Bellows Specification

Rubber Bellows MAX Diameter	262 mm
Rubber Bellows Natural Diameter	225 mm / 8.88 inches
The Working Stroke	MAX 325mm to MIN 81 mm
Maximum Height	325 mm
Minimum Height	81 mm / 3.12 inches
Stroke Height	224 mm

Other Air Spring OEM Number

Model	Design size (DO mm)	The largest diameter (mm)	The end diameter (φo mm)	Design height (H mm )	Convolutions number (N)	Whole trip ( L mm)	01-0.7 MPA bearing capacity (Kg)
GF40/60-1	40	80	80	60	1	40-70	50-88
GF100/140-2	100	150	145	140	2	68-168	314-550
GF100/166-2	100	160	160	176	2	74-200	314-550
GF120/102-1	120	188	180	102	1	50-118	452-792
GF150/206-2	150	230	220	216	2	74-250	707-1237
GF150/298-3	150	230	220	316	3	98-350	707-1237
GF200/206-2	200	280	280	218	2	74-250	1257-2199
GF200/298-3	200	280	280	320	3	98-350	1257-2199
GF230/206-2	230	310	310	218	2	74-250	1662-2908
GF230/298-3	230	310	310	320	3	110-350	1662-2908
GF250/206-2	250	330	330	218	2	74-250	1964-3436
GF250/298-3	250	330	330	320	3	110-350	1964-3436
GF280/206-2	280	360	360	218	2	74-250	2463-4311
GF280/298-3	280	360	360	320	3	110-350	2463-4311
GF300/218-2	300	380	380	226	2	85-270	2828-4948
GF300/316-3	300	380	380	330	3	120-370	2828-4948
GF320/120-1	320	400	400	120	1	60-150	3217-5629
GF320/215-2	320	400	400	226	2	85-270	3217-5629
GF320/310-3	320	400	400	330	3	120-370	3217-5629
GF400/215-2	400	480	480	228	2	90-270	5026-8796
GF400/310-3	400	480	480	334	3	130-370	5026-8796
GF440/215-2	440	520	520	215	2	82-248	6082-10644
GF440/310-3	440	520	520	310	3	120-360	6082-10644
GF500/220-2	500	580	580	220	2	92-252	7854-13744
GF500/320-3	500	580	580	320	3	128-370	7854-13744
GF500/420-4	500	580	580	420	4	155-500	7854-13744
GF580/262-2	580	680	680	262	2	92-305	10568-18495
GF580/384-3	580	680	680	384	3	124-448	10568-18495

Product Advantages

Frictionless operation
No maintenance or lubrication
Ideal for short stroke, high-force applications
High vibration isolation level
Simple to install

Support and Services

The Suspension Air Springs product technical support and services include:
Expert troubleshooting assistance to diagnose and resolve technical issues
Guidance on proper installation and maintenance procedures
Product documentation, including user manuals and technical specifications
Product training and education for customers and service technicians
Warranty and repair services, including replacement parts and exchange programs
Customer support for urgent technical issues or service needs

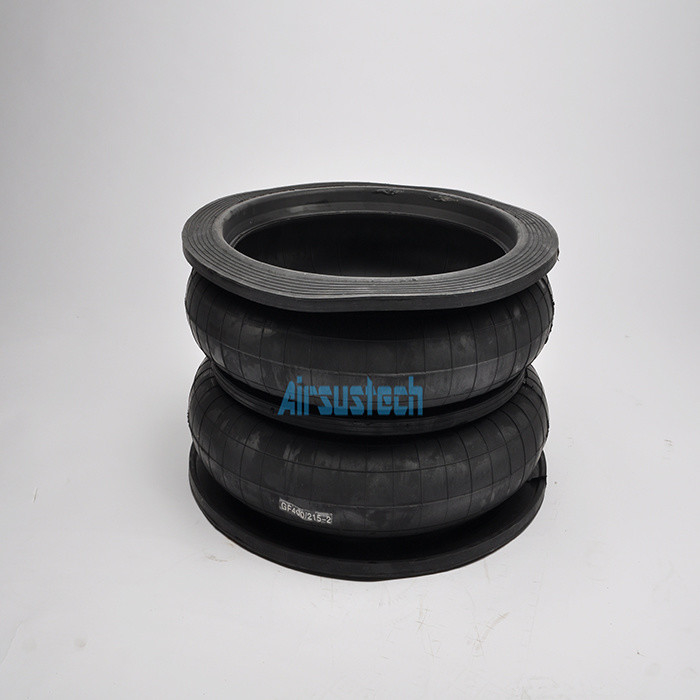

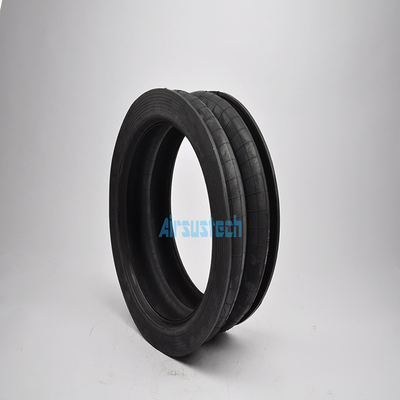

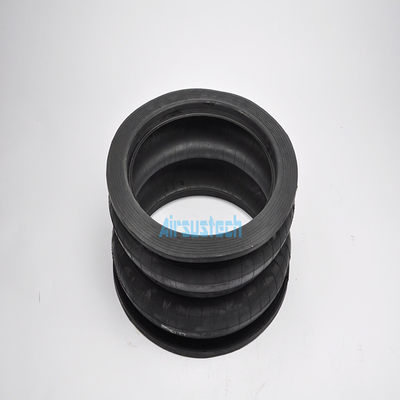

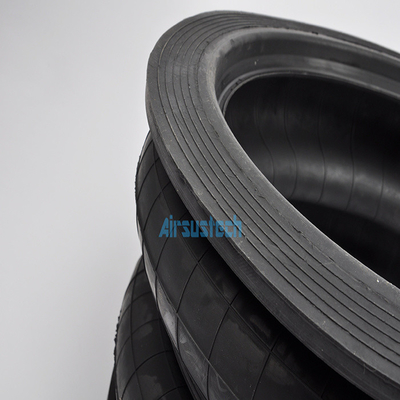

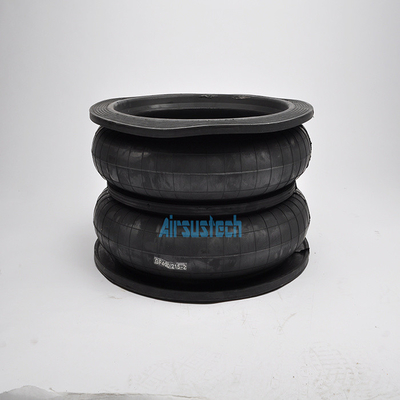

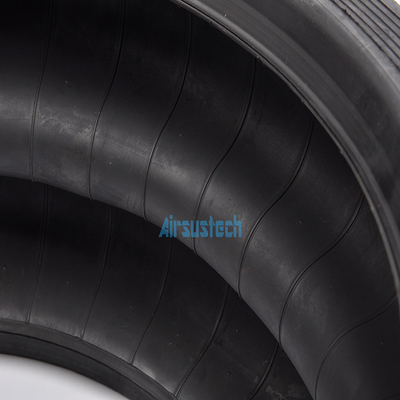

GF400/215-2 Air Spring Real Photos

Brand New Convoluted Suspension Air Spring GF400/215-2 Rubber Bellows Only 0
