Mitsubishi 03362-33000 Double Convoluted Air Suspension One Year Quality Assurance

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B5371

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Number:	2B5371	Bellows Structure:	Double Convoluted
Quality:	100 % Tested	Fuction:	Reduce Shock
Trademark:	GUOMAT	Type:	Gas-Filled
Compatibility:	Universal	Other OEM Number:	HINO 03362-33000 \| Customized Request
Highlight:	03362-33000 Double Convoluted Air Suspension , Mitsubishi Double Convoluted Air Suspension

Mitsubishi 03362-33000 Double Convoluted Air Suspension One Year Quality Assurance

Rubber Bellow Specification

Rubber Bellows Design Diameter	192mm
Rubber Bellows MAX Diameter	119 mm
Minimum Height	90 mm
Rubber Bellows Natural Height	192 mm
Top Opening Mouth Diameter	198 mm
Bottom Opening Mouth Diameter	89.3 mm

Refer No.

HINO Air Spring

03362-33000, 03362 33000, 0336233000

Mitsubishi Air Spring

03362-33000, 03362 33000, 0336233000

Other Air Springs OEM Number

GUOMAT Number	Assembly Number	Max OD @100 PSIG (Inches)	Design Load Range (pounds)	Design Height Range (Inches)	Usable Stroke (Inches)	Min Comp Height (Inches)	Max Ext Height (Inches)	Bumper Included	Approximate Isolation Percent				Air Fitting Size (Inches)
									For a Distributing Frequency Of:
									435 CPM	870 CPM	1160 CPM	1750 CPM
2B6 530	2B6-530	6.5	180 - 2,000	4.5 - 6.5	4.9	2.8	7.7	NO	85	96	97	99	1/4 C
2B6 531	2B6-531	6.5	180 - 2,000	4.5 - 6.5	4.9	2.8	7.7	NO	85	96	97	99	1/4 OS
2B6 532	2B6-532	6.5	180 - 2,000	4.5 - 6.5	4.3	3.4	7.7	YES	85	96	97	99	1/4 OS
2B6 535	2B6-535	7	300 - 2,200	5.0 - 7.0	6.3	2.8	9.1	NO	92	97	98	99	1/4 OS
2B6 536	2B6-536	7	300 - 2,200	5.0 - 7.0	5.7	3.4	9.1	YES	92	97	98	99	1/4 OS
2B7 540	2B7-540	8	230 - 2,500	6.0 - 8.0	6.5	2.5	9	NO	91	97	98	99	1/4 C
2B7 541	2B7-541	8	230 - 2,500	6.0 - 8.0	6.5	2.5	9	NO	91	97	98	99	1/4 OS
2B7 542	2B7-542	8	230 - 2,500	6.0 - 8.0	5.7	3.3	9	YES	91	97	98	99	1/4 OS
2B7 546	2B7-546	8	230 - 2,500	6.0 - 8.0	6.5	2.5	9	NO	91	97	98	99	3/4 C
2B8 550	2B8-550	8.8	440 - 2,700	7.0 - 8.0	7.2	2.9	10.1	NO	93	97	98	99	1/4 C
2B8 552	2B8-552	8.8	440 - 2,700	7.0 - 8.0	7.2	2.9	10.1	NO	93	97	98	99	3/4 C
2B8 553	2B8-553	8.8	440 - 2,700	7.0 - 8.0	7.2	2.9	10.1	NO	93	97	98	99	1/4 OS
2B8 554	2B8-554	8.8	440 - 2,700	7.0 - 8.0	6.6	3.5	10.1	YES	93	97	98	99	1/4 OS
2B9 200	2B9-200	10.3	340 - 3,700	8.0 - 9.0	7.6	3.2	10.8	NO	92	97	98	99	1/4 OS
2B9 201	2B9-201	10.3	340 - 3,700	8.0 - 9.0	7	3.8	10.8	YES	92	97	98	99	1/4 OS
2B9 204	2B9-204	10.3	340 - 3,700	8.0 - 9.0	7.6	3.2	10.8	NO	92	97	98	99	1/2 OS
2B9 205	2B9-205	10.3	340 - 3,700	8.0 - 9.0	7	3.8	10.8	YES	92	97	98	99	1/2 OS
2B9 208	2B9-208	10.3	340 - 3,700	8.0 - 9.0	7	3.8	10.8	YES	92	97	98	99	3/4 OS
2B9 216	2B9-216	10.3	340 - 3,700	8.0 - 9.0	7.6	3.2	10.8	NO	92	97	98	99	3/4 OS
2B9 250	2B9-250	10.3	540 - 3,800	8.0 - 9.0	8.7	3.5	12.2	NO	93	98	99	99	1/4 OS
2B9 251	2B9-251	10.3	540 - 3,800	8.0 - 9.0	8.4	3.8	12.2	YES	93	98	99	99	1/4 OS
2B9 253	2B9-253	10.3	540 - 3,800	8.0 - 9.0	8.4	3.8	12.2	YES	93	98	99	99	1/4 OS
2B9 255	2B9-255	10.3	540 - 3,800	8.0 - 9.0	8.4	3.8	12.2	YES	93	98	99	99	1/4 OS
2B9 256	2B9-256	10.3	540 - 3,800	8.0 - 9.0	8.7	3.5	12.2	NO	93	98	99	99	1/4 OS
2B9 263	2B9-263	10.3	540 - 3,800	8.0 - 9.0	8.7	3.5	12.2	NO	93	98	99	99	1/2 OS
2B9 275	2B9-275	10.3	540 - 3,800	8.0 - 9.0	8.7	3.5	12.2	NO	93	98	99	99	3/4 OS

FAQ

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.

Q: Can I use my own logo?
A: Sure. We can do as per the customer's requirements.

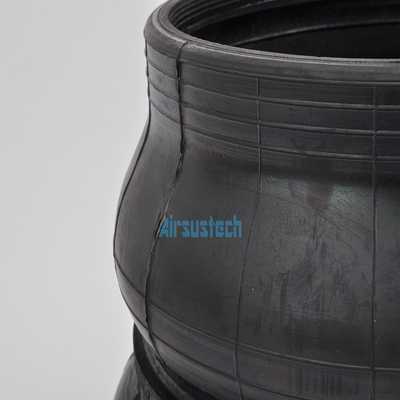

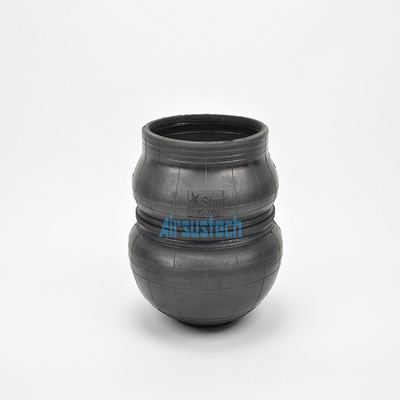

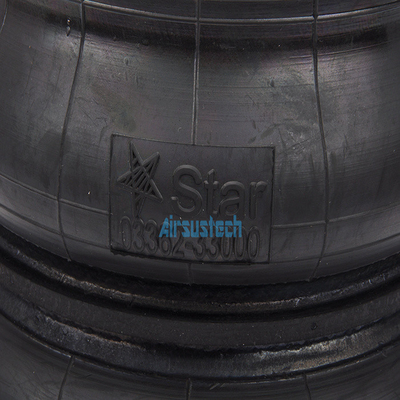

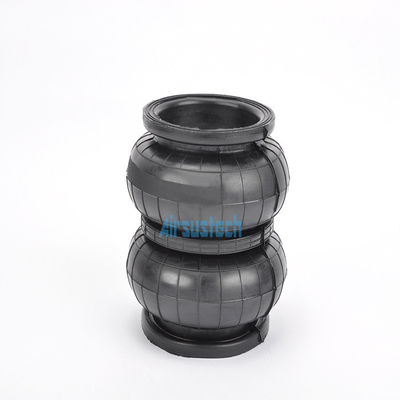

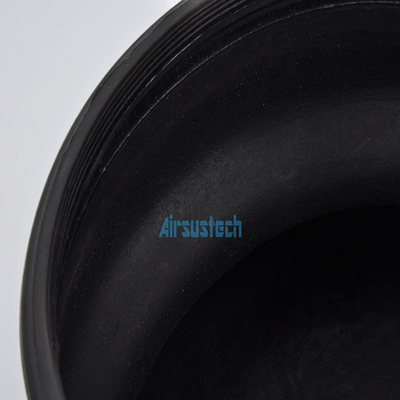

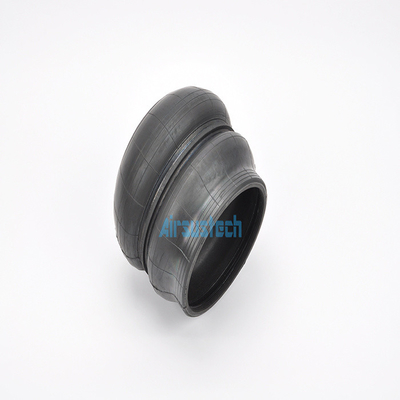

The Real Picture of 2B5371

Mitsubishi 03362-33000 Double Convoluted Air Suspension One Year Quality Assurance 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Mitsubishi 03362-33000 Double Convoluted Air Suspension One Year Quality Assurance 3
