Suspension Air Spring W01-358-6910 Firestone Double Convoluted Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6910P34

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product NO.:	2B6910P34	Quality:	100 % Tested
Fuction:	Reduce Shock	Key:	Fire Stone W01-358-6910
Trademark:	GUOMAT	Origin:	Guangzhou, China
After-sales Service:	12 Months	Ships To:	Worldwide
Highlight:	Suspension Air Spring W01-358-6910 , Suspension Air Spring Double Convoluted , Firestone Double Convoluted Air Spring

Suspension Air Spring W01-358-6910 Firestone Double Convoluted Air Spring

Product Information

Air hole/air inlet/air fittings

Air hole/air inlet: G3/4
The distance between the air hole and the screw: 38mm

Top plate screw (nut) teeth: 2XM8×1.25
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2XM8×1.25
The screw center distance of the bottom cover plate: 89 mm

Cover plate

Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm

Bell rubber bellows

Rubber Bellow Diameter: 224mm
Max Diameter: 251mm
Stroke: from 72mm to 260mm

Bumper block/bumper block

No bumper block

Belt loop/Belt loop

With belt loop: one piece of belt loop

Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 3.2kg

Refer Number

Firestone Bellows Number: 20
Goodyear Part Number: 2B9-200, 2B9200
Goodyear Bellows Number: 578-92-3-202
ContiTech Number: 161008, 64267, FD 200-19 320
ContiTech Bellows Number:FD 200-19
Granning Number: 1371, 2726
Hendrickson Number: 45843003, 45843-003, 458433, 45843-3, B458433, B8768, S458433, S8768, S-8768
Hendrickson Trailer Number: S-8768
Hendrickson Truck Number: 45843-3
IHC Number: 554783C1
Loadguard Number: SC2011
Neway Number: 57006910
Ridewell Number: 1003586910C
Taurus Number: AS2186910
Triangle Part Number: 4320
Triangle Bellows Number: 6325
Volvo Number: 3918343
Watson & Chalin #: AS-0001, AS0001
Note: Diesel Nacional AX-8127-19
UPC: 767555002988
MPN: W013586910

Other Types Of Firestone Air Spring

Single Convoluted
Fire stone : W01-358-7731	Fire stone : W01-M58-6165
Fire stone : W01-358-7564	Fire stone : W01-358-7598
Fire stone : W01-M58-6374	FIRE STONE FLEX 115
FIRE STONE W01-358-0118	Fire stone : W01-358-7008
Fire stone: W01-358-7009	Fire stone. W01-358-7103
Fire stone. W01-358-7112
Double Convoluted
FIRE STONE W01-095-0111	FIRE STONE W01-358-7325
FIRE STONE W01-358-7327	Fire stone : W01-358-7325
Fire stone : W01-M58-6353	FIRE STONE W01 M58 7894
Fire stone : W01-358-6926	Fire stone : W01-358-6910
Fire stone : W01-358-6902	Fire stone : W01-358-6927
Fire stone : W01-358-6943	Fire stone : W01-358-6946
Fire stone : W01-358-6945	Fire stone : W01-M58-7679/20C2
Fire stone:W01-358-6948	FIRE STONE W01-358-6951
FIRE STONE W01-358-6952	Fire stone:W01-M58-6944/20-2
Fire stone:W01-M58-6891/20-2	Fire stoneW01-358-7180/22
FIRE STONE W01 358 0226	FIRE STONE 22T3 095 .0257
FIRE STONE fole 210 095.008	Fire ston:W01-358-7400/22
Fire stone:W01-358-7405	Fire stone:W01-358-7406
Fire stone:W01-358-7424	Fire stone:W01-358-7545
Fire stone:W01-358-7550	Fire stone:W01-358-7555
Fire stone : W01-358-7136	FIRE STONE W01-358-7146
FIRE STONE W01-358-7143	Fire stone:W01-358-7557
Fire stone:W01-358-7781	Fire stone:W01-095-0289
Fire stone. W01-095-0508	Fire stone.W01-358-9529
Fire stone Style 21D-2
Triple Convoluted
Fire stone:W01-358-8008	Fire stone:W01-358-8010
Fire stone:W01-358-8027/38	Fire stone:W01-358-8029
Fire stone:W01-358-8030/38	FIRE STONE W01 358 8006
FIRE STONE FLEX 38R/38D	FIRE STONE W01-358-7808
FIRE STONE W01-358-7798	FIRE STONE FLEX 313D
FIRE STONE FLEX 313D	FIRE STONE W01-358-7800
FIRE STONE W01-358-7818	FIRE STONE FLEX 313D

Supports And Services

Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

The Related Pictures

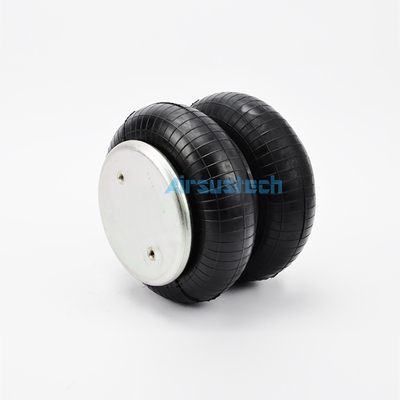

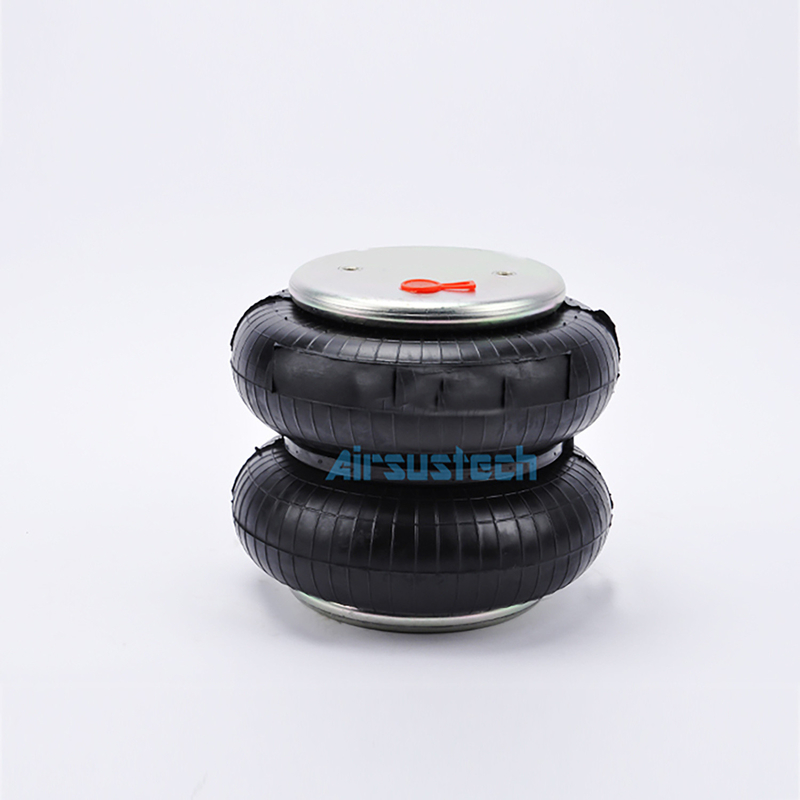

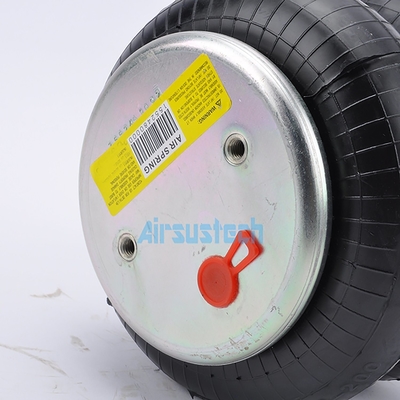

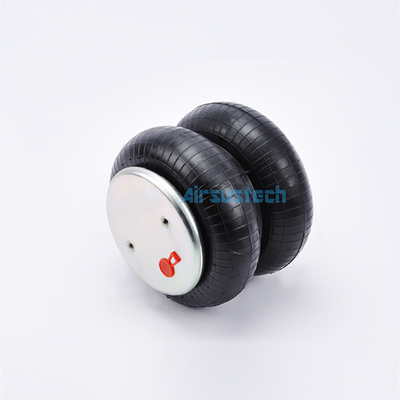

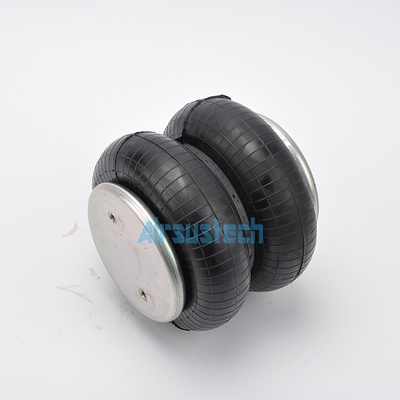

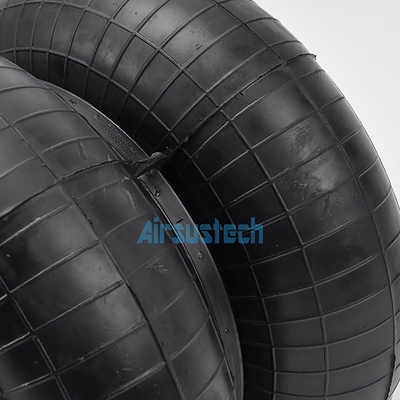

Suspension Air Spring W01-358-6910 Firestone Double Convoluted Air Spring 0
