Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring

Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring

  • Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring
  • Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring
  • Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring
  • Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring
  • Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring
  • Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring
Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring
Product Details:
Place of Origin: Guangdong, China
Brand Name: GUOMAT
Certification: ISO/TS16949, ISO9001
Model Number: 2B5231
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 5-8 Working Days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000PCS/Week
Contact Now
Detailed Product Description
Item NO.: 2B5231 Air Spring Type: Double Convoluted
Brand Name: GUOMAT Condition: Brand-New
Function: Reduce Shock Ships To: Worldwide
Goodyear: 2B9-218 Production Process: Vulcanization
Highlight:

Firestone Suspension Air Spring

,

W01-358-5231 Suspension Air Spring

,

Cross Contitech 161336 Air Spring

Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring





Product Specification



Nut/blind nut Top plate screw (nut) teeth 1pcsX 3/8-16UNC; 1pcsX 3/4-16UNF
Screw (nut) teeth of the bottom cover plate 2pcsX3/8-16UNC
The screw center distance of the bottom cover plate 86 mm
Air hole/air inlet/air fittings Air hole/air inlet 1/4 NPTF
Cover plate Top plate diameter 160 mm
Diameter of the bottom cover 160 mm
Bell rubber bellows Rubber Bellow Natural Diameter 205 mm
Max Diameter 235mm
The Working Stroke from 85mm to 280mm





Alternative Items OEM Number

  • Firestone Air Spring

W01-358-5231, W01 358 5231, W01358523

WO1-358-5231, WO1 358 5231, WO1358523

  • Contitech Air Spring

200-25 453, 200 25 453, 20025453

  • Goodyear Air Spring

2B9-218, 2B9 218, 2B9218

578923206/2

  • Triangle Air Spring

6332, 4453

  • Leland Air Spring

Sc2072

  • SAF Holland Air Spring

57006927

  • Tuthill Technology Air Spring

1290601

  • Reyco Air Spring

12906-01





Other Types Of Convoluted Air Spring



Single Convoluted
Fire stone : W01-358-7731 Fire stone : W01-M58-6165
Fire stone : W01-358-7564 Fire stone : W01-358-7598
Fire stone : W01-M58-6374 FIRE STONE FLEX 115
FIRE STONE W01-358-0118 Fire stone : W01-358-7008
Fire stone: W01-358-7009 Fire stone. W01-358-7103
Fire stone. W01-358-7112
Double Convoluted
FIRE STONE W01-095-0111 FIRE STONE W01-358-7325
FIRE STONE W01-358-7327 Fire stone : W01-358-7325
Fire stone : W01-M58-6353 FIRE STONE W01 M58 7894
Fire stone : W01-358-6926 Fire stone : W01-358-6910
Fire stone : W01-358-6902 Fire stone : W01-358-6927
Fire stone : W01-358-6943 Fire stone : W01-358-6946
Fire stone : W01-358-6945 Fire stone : W01-M58-7679/20C2
Fire stone:W01-358-6948 FIRE STONE W01-358-6951
FIRE STONE W01-358-6952 Fire stone:W01-M58-6944/20-2
Fire stone:W01-M58-6891/20-2 Fire stoneW01-358-7180/22
FIRE STONE W01 358 0226 FIRE STONE 22T3 095 .0257
FIRE STONE fole 210 095.008 Fire ston:W01-358-7400/22
Fire stone:W01-358-7405 Fire stone:W01-358-7406
Fire stone:W01-358-7424 Fire stone:W01-358-7545
Fire stone:W01-358-7550 Fire stone:W01-358-7555
Fire stone : W01-358-7136 FIRE STONE W01-358-7146
FIRE STONE W01-358-7143 Fire stone:W01-358-7557
Fire stone:W01-358-7781 Fire stone:W01-095-0289
Fire stone. W01-095-0508 Fire stone.W01-358-9529
Fire stone Style 21D-2
Triple Convoluted
Fire stone:W01-358-8008 Fire stone:W01-358-8010
Fire stone:W01-358-8027/38 Fire stone:W01-358-8029
Fire stone:W01-358-8030/38 FIRE STONE W01 358 8006
FIRE STONE FLEX 38R/38D FIRE STONE W01-358-7808
FIRE STONE W01-358-7798 FIRE STONE FLEX 313D
FIRE STONE FLEX 313D FIRE STONE W01-358-7800
FIRE STONE W01-358-7818 FIRE STONE FLEX 313D




FAQ



Q: I can not find out the items what i want from your website, can you offer the products i need?
A: YES.One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.



Q:Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.



Q: Can I use my own logo and design on products?
A: YES,OEM is welcomed.

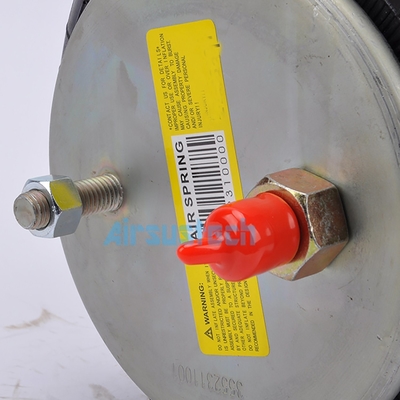

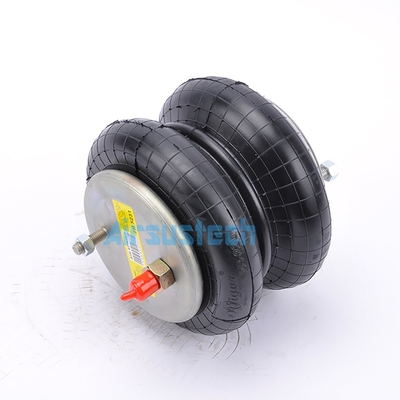

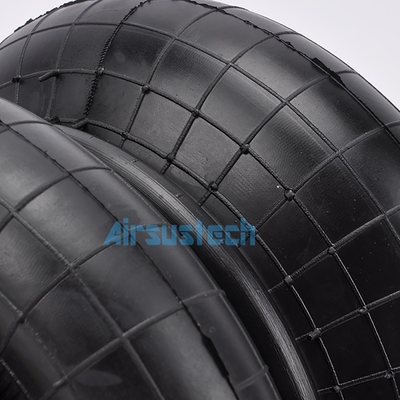

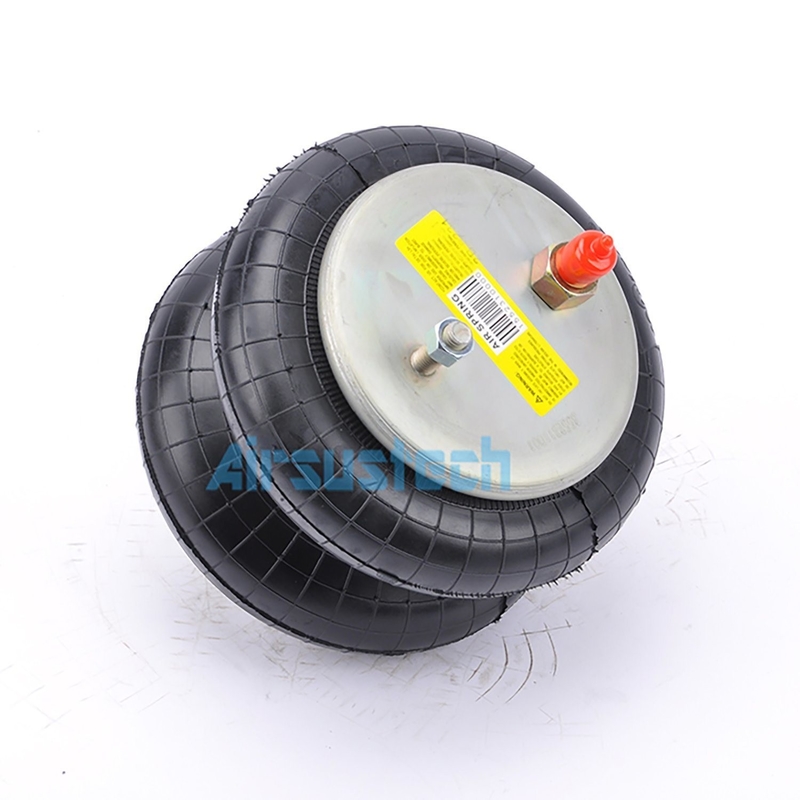

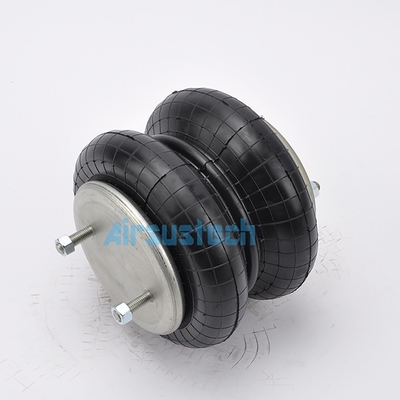

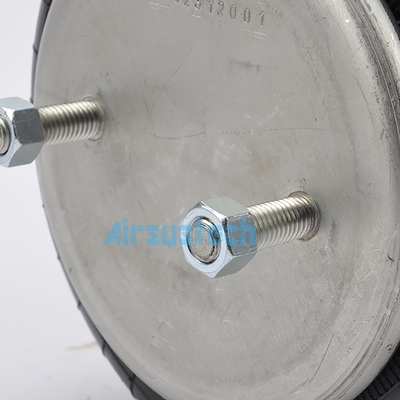

2B5231 Detailed Pictures

Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring 0


Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring 1


Factory Workshop


Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring 2Firestone Suspension Air Spring W01-358-5231 Cross Contitech 161336 Air Spring 3
