Flange Air Spring Dunlop FR SP256NB Air Shock Suspension Extend Service Life

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B12×2

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product NO.:	2B12×2	Bellows Type:	Double Convoluted
Quality:	100 % Tested	Fuction:	Reduce Shock
Contitech:	FD 412-18 S	Trademark:	GUOMAT
Operation:	Gas-Filled	Custom Description:	Pneumatic Air Spring
Highlight:	Dunlop FR SP256NB Flange Air Spring , Flange Air Spring Suspension

Flange Air Spring Dunlop FR SP256NB Air Shock Suspension Extend Service Life

Product Information

Rubber Bellow Diameter: 300mm

Design Height: 186mm

Bumper block: Without

Belt loop/Girdle Hoop: One piece

Screw Center Distance: 232 mm

Air Hole/Air Inlet/Gas Hole: Rp 1/2

Nut/Blind Nuts Type: M8

Min. pressure: 0 bar

Return force to min.height: ≤300N

Overall weight with clamped plates: 4.8kg

Product Technical Data Sheet

Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	240	10.0	13.3	16.7	20.6	24.1	27.6	12.3
	220	11.3	15.2	18.9	23.1	26.9	30.8	11.6
	200	12.5	16.7	20.8	25.3	29.5	33.8	10.8
	180	13.6	18.2	22.7	27.5	32.0	36.5	9.9
	160	14.6	19.4	24.3	29.5	34.3	39.1	8.9
	140	15.4	20.5	25.5	31.1	36.3	41.3	7.8
	120	16.3	21.4	26.7	32.7	38.2	43.4	6.7
	100	16.8	22.1	27.8	34.1	39.8	45.0	5.5

Cross References

Contitech FD 412-18S

Dunlop FR SP 256 NB, SP 1541 NB, SP 1025 NB, SP 2665 NB(12×2)

Firestone Fole 210 095.008

Airkraft 113301, 113300, 113305

Grat T291, 2B-300, 2B 300, 114300

Granning 15603

Kaiser A06030616

Product Applications

Gate Valve Operator
Glue Coating Machine
Web Tightening Tool
Stripper
Tool Spring Driver
Quenching Drain Driver
Paper Mill
Pickling Tank Driver

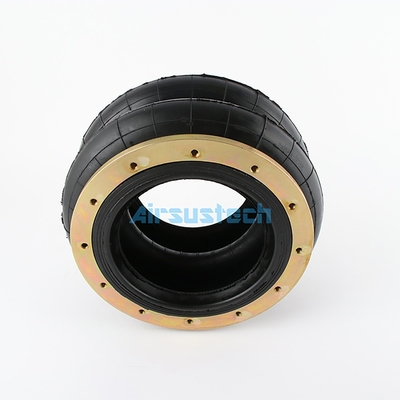

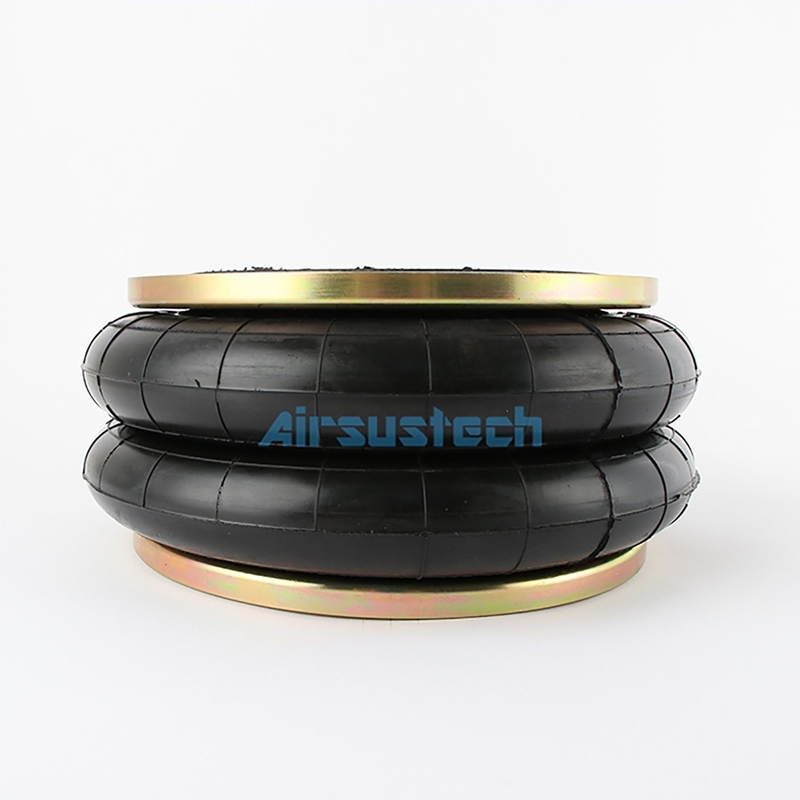

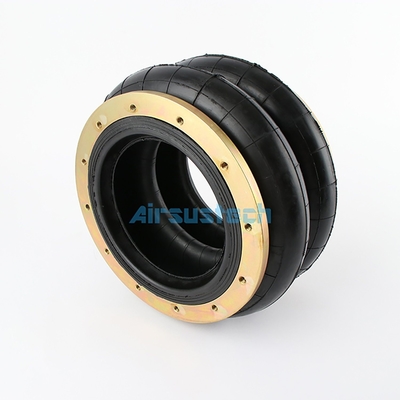

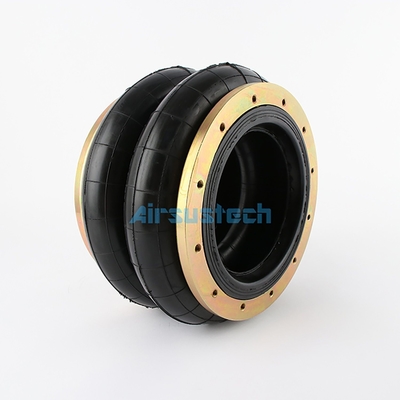

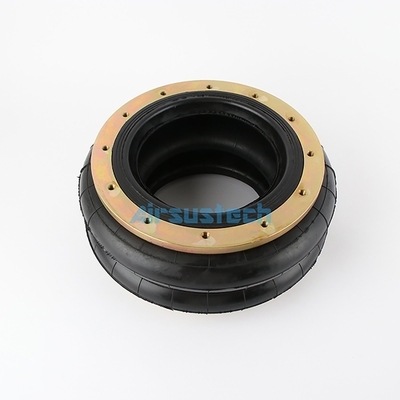

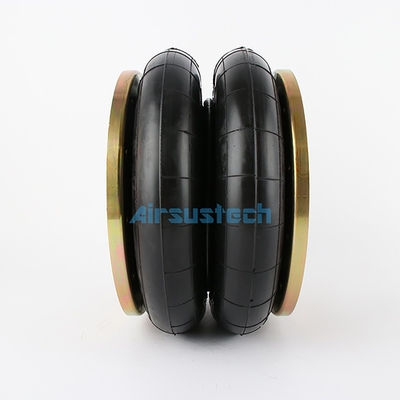

The Related Picture of 2B12×2

Flange Air Spring Dunlop FR SP256NB Air Shock Suspension Extend Service Life 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Flange Air Spring Dunlop FR SP256NB Air Shock Suspension Extend Service Life 2

Factory Workshop
