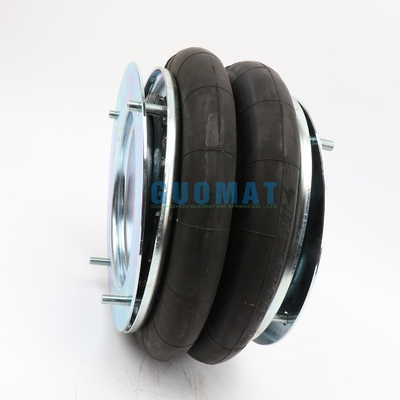

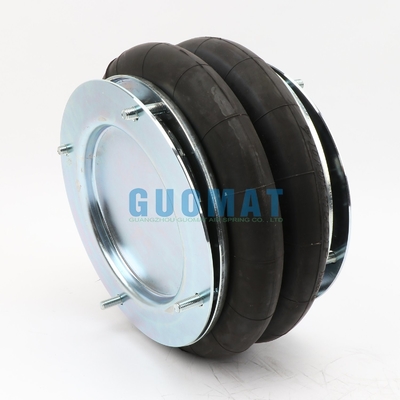

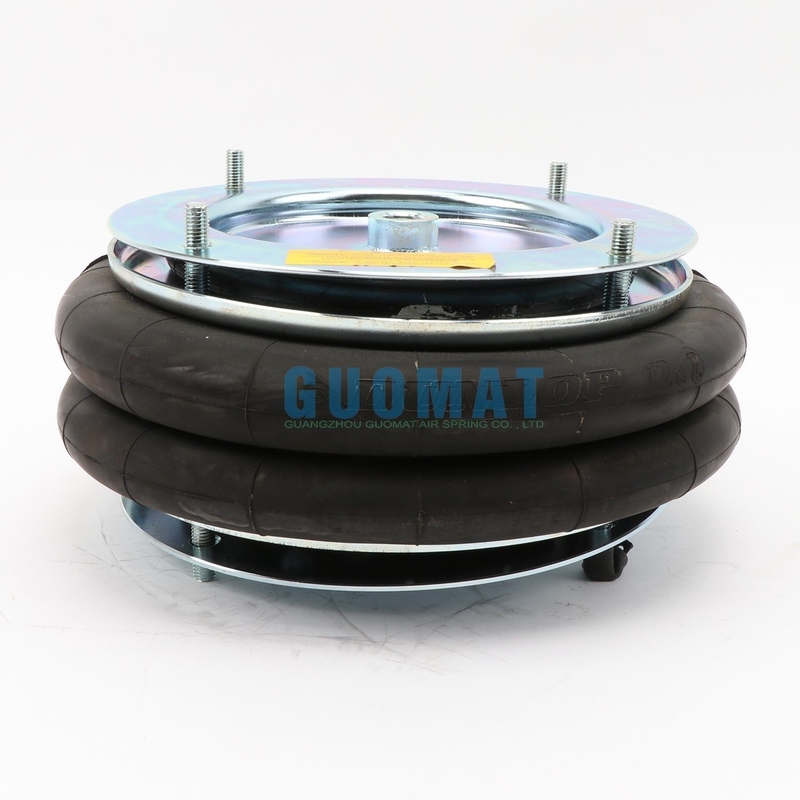

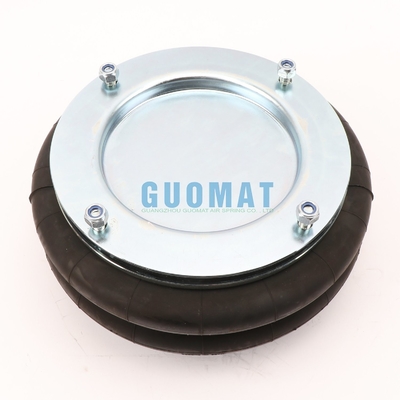

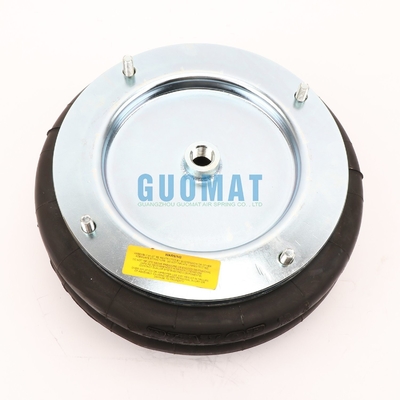

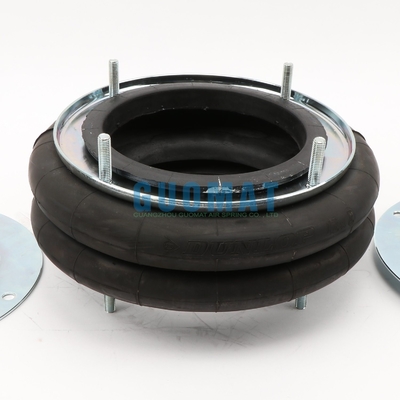

Double Convoluted Air Suspension Dunlop SP 1541 Air Shocks For Trailer Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B12X2T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B12X2T	Material:	Rubber And Steel
Structure:	Double Convoluted	Damping Force Direction:	Bidirectional
Function:	Reduce Shock	Manufacturer:	GUOMAT
Maximum Diameter:	330 MM	Total Stroke:	166 MM
Highlight:	Double Convoluted Air Suspension , Double Convoluted Trailer Air Spring

Double Convoluted Air Suspension Dunlop SP 1541 Air Shocks For Trailer Air Spring

Product Introduction

Suspension Air Springs are precision-engineered air shocks, meticulously designed to offer unparalleled quality, robust durability, and exceptional load-bearing capabilities across a variety of automotive applications. Constructed from superior-grade rubber and steel materials, these air shocks are built to withstand and perform optimally in extreme temperature conditions, ranging from -40℃ to +70℃. Boasting an outstanding load capacity and unmatched durability, these air shocks are the perfect choice for vehicles of every size, shape, and type. Their advanced design ensures superior shock absorption and stability, culminating in a ride that is both smoother and safer. Furthermore, their user-friendly installation process and minimal maintenance requirements make them an excellent option for any vehicle owner seeking reliability and performance.

Product Details

Model Number	12X2
Cover Plate Diameter	260mm
Min.Height	74mm
Max.Height	240mm
Total Stroke	166mm
Static Height	160mm
Distance Between Studs	232mm
Space Envelope	345mm
Weight	5.85 kg
Air Inlet	1/2 BSP

Cross Reference

Firestone Air Spring

W01-R58-4061, W01 R58 4061, W01R584061

WO1-R58-4061, WO1 R58 4061, WO1R584061

Dunlop Air Spring

12''X2, 12'X2, 12X2

SP1541, SP 1541

Contitech Air Spring

FD412-22 DS, FD 412-22 DS, FD 412 22 DS

FD 41222 DS, FD412 22 DS, FD41222 DS

Norgren Air Spring

M/31122, M 31122, M31122

Parker Air Spring

9109041

GUOMAT Air Spring Features

1. Constant Operating Height
Our Air Springs are pressurized to maintain a set height, regardless of the load. There is no static spring deflection as with other spring elements. A user-friendly, automatic control system guarantees a constant operating height even under varying loads.

2. Lateral Stability
Depending on the type of air spring used, their latteral stiffness can reach up to a 100% of the vertical stiffness.

3. Low Frequency, Load-Independent
Air Springs enable a very low resonant frequency from approximately 1 Hz to 4 Hz. Here, the resonant frequency is virtually independant of the load-bearing capacity. The excellent insulating effect remains virtually constant even under changing loads.

4. Compact Component Height
Our air springs offer a compact component height. There is no static spring deflection.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
