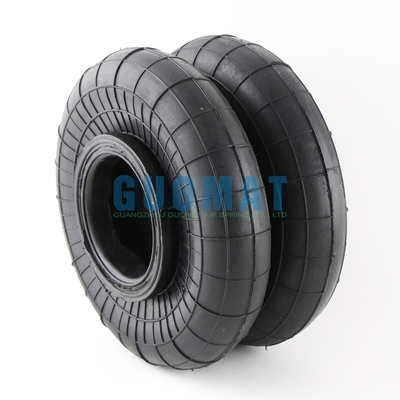

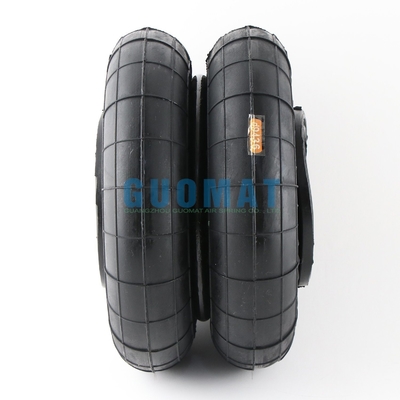

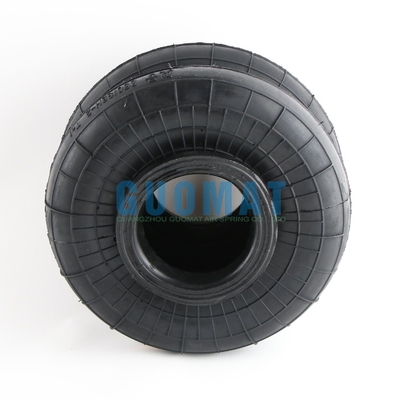

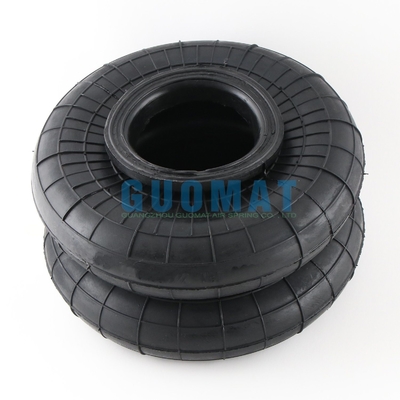

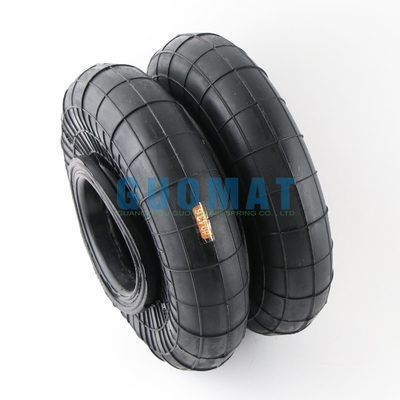

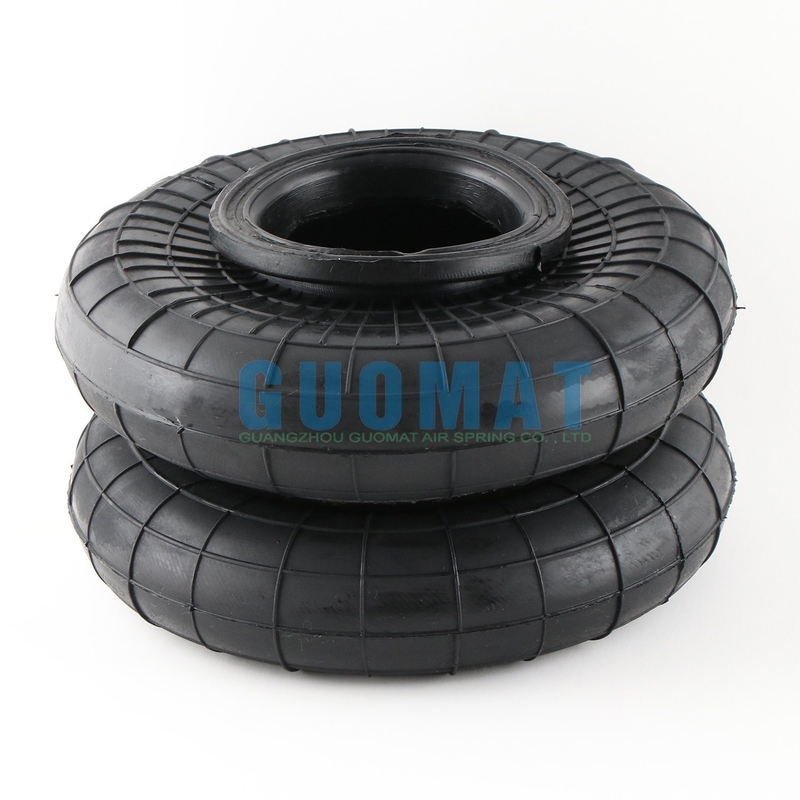

Double Convoluted Air Rubber Bellow 250185H-2 1/2 Air Connection For Excavator

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	250185H-2

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Number:	250185H-2	Rubber Material:	Natural Rubber
Structure:	Double Convoluted	Condition:	Brand New
OEM NO.:	250185H-2	Trademark:	GUOMAT
Applications:	Industrial Machine	Type:	Gas-Filled
Highlight:	Double Convoluted Air Rubber Bellow , Air Rubber Bellow 250185H-2

Double Convoluted Air Rubber Bellow 250185H-2 1/2 Air Connection For Excavator

250185H-2 Tchnical Data

Maximum Height: 195mm

Minimum Height: 80mm

Working Stroke: 115mm

Diameter Plates: 178mm

Max. load at 8 bar: 7.8 kN

Air connection: G 1/2=25Nm

Mounting thread: M8=12Nm

Material plates: aluminum

Temperature range: -40 to + 85°C

Rubber: CR elastomer

Rubber Bellow Max Diameter: 152.5mm

The Distance of Mounting thread: 127mm

Number of Mounting thread: 4 pieces

Required Installation Space: 195mm

Min Pressure : 0 bar

Cross References

GUOMAT:250185H-2
ContiTech: FD 210-22 1/2 M10
ContiTech: FD 210-22 DS G1 / 2
ContiTech: FD 210-22 DS G1 / 2 M10
ContiTech: FD 210-22 DS G1 / 2 CR
ContiTech: FD 210-22 DS CR G1 / 2
ContiTech: FD 210-22 DS / FD210-22DS / FD21022DS
ContiTech leather bags: FD 210-22 / FD210-22 / FD21022
CONTITECH FD 210-22 1/2 M10
DUNLOP FR SP 1538 (10x2)
NORGREN M/31102 (10x2)
WEFORMA WBZ-G 450
GRANNING 15807
SAMRO H 250-0021

Features of Rubber Air Suspension

Long service life. The self-sealing type has excellent durability due to less rubber deformation during expansion and contraction.
Maintenance is very simple. There is no friction and sliding part, so no lubricating oil is required.
The installation height can be reduced. Compared with other springs, the installation height can be reduced, effectively increasing the stroke.
The spring parameters with elasticity and softness can be obtained, with large load and elasticity and excellent vibration resistance.
The output of the load-bearing capacity is variable, and the load-bearing capacity can be changed within a wide range by changing the internal pressure.
The height can be controlled. If used in conjunction with the height adjustment valve, a constant height can be maintained for different loads.
It has a damping effect. If used in conjunction with the auxiliary air chamber and the throttle valve, excellent

FAQ

Q: How do you correctly identify the products you need?
A: Supply part number,we can check directly.
Engine and gearbox parts;if you don't know part code,try to found engine or gear model and number.

Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Q:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
