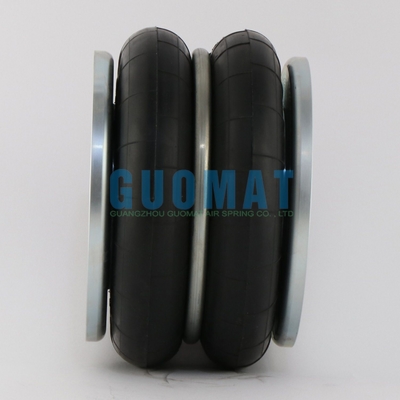

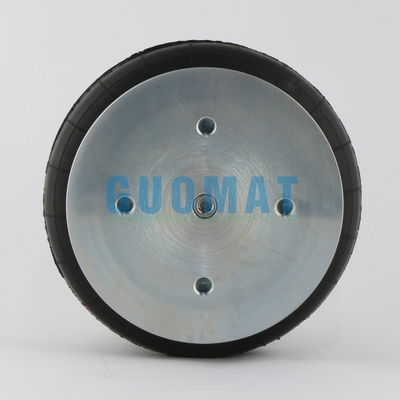

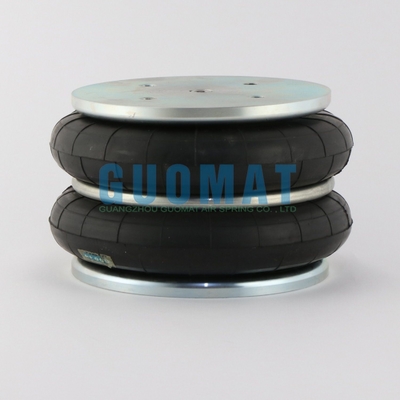

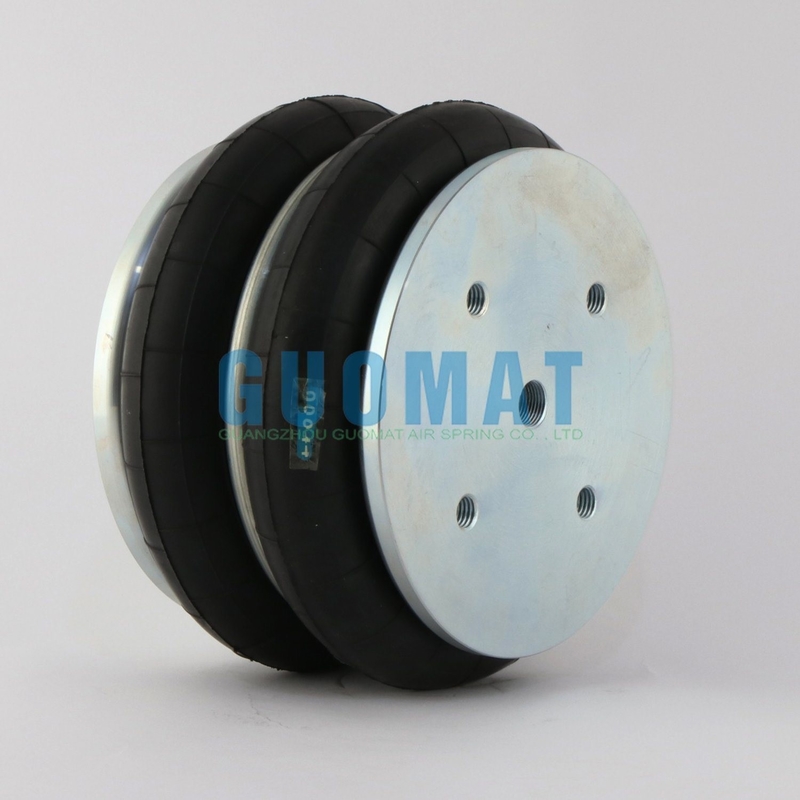

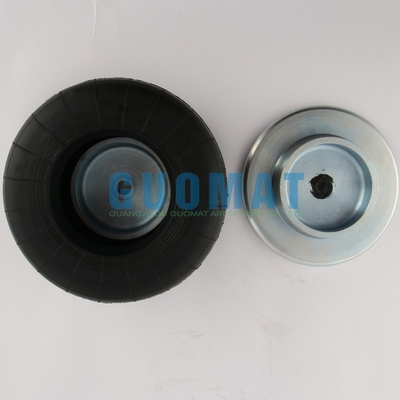

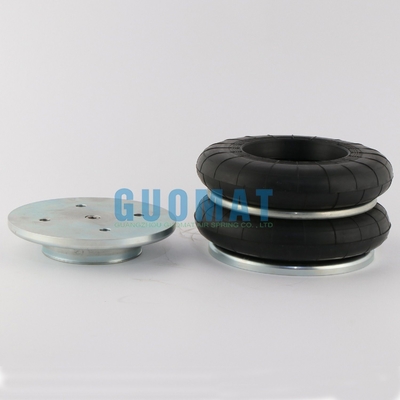

Yokohama S-160-2 Air Suspension GUOMAT NO. F-160-2 Double Convoluted Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-160-2

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	F-160-2	Material:	Rubber
Structure:	Double Convoluted	Function:	Reduce Shock
Condition:	Brand New	Max Height:	148 MM
Minimum Height:	53 MM	Production Process:	Vulcanization
Highlight:	F-160-2 Double Convoluted Air Spring , Yokohama S-160-2 Double Convoluted Air Spring

Yokohama S-160-2 Air Suspension GUOMAT NO. F-160-2 Double Convoluted Air Spring

Product Technical Data

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
F-160-1	S-160-1	72	102	40	±25	220
F-160-2	S-160-2	98	148	53	±35	220
F-160-3	S-160-3	152	227	82	±53	220
F-160-4	S-160-4	206	306	111	±70	220

YOKOHAMA Rubber Air Spring

GUOMAT No.	Reference No.	GUOMAT No.	Reference No.
F-600-1	S-600-1	F-500-2	S-500-2
F-600-2	S-600-2	F-500-3	S-500-3
F-600-3	S-600-3	F-500-4	S-500-4
F-600-4	S-600-4	F-500-5	S-500-5
F-600-5	S-600-5	F-450-1	S-450-1
F-550-2	S-550-2	F-450-2	S-450-2
F-550-3	S-550-3	F-450-3	S-450-3
F-400-2	S-400-2	F-450-4	S-450-4
F-400-3	S-400-3	F-450-5	S-450-5
F-400-4	S-400-4	F-350-1	S-350-1
F-400-5	S-400-5	F-350-2	S-350-2
F-300-1	S-300-1	F-350-3	S-350-3
F-300-2	S-300-2	F-350-4	S-350-4
F-300-3	S-300-3	F-240-4	S-240-4
F-300-4	S-300-4	F-240-3	S-240-3
F-220-4	S-220-4	F-240-2	S-240-2
F-220-3	S-220-3	F-240-1	S-240-1
F-220-2	S-220-2	F-200-1	S-200-1
F-160-1	S-160-1	F-200-3	S-200-3
F-160-2	S-160-2	F-200-4	S-200-4
F-160-3	S-160-3	F-120-4	S-120-4
F-160-4	S-160-4	F-120-3	S-120-3
		F-120-2	S-120-2

GUOMAT Air Spring Features

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.

1. The products features low cost, wide use and easy operation.

2. It achieves long service life, and requires no maintenance and lubrication.

3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.

4. It comes with no friction and soft medium.
