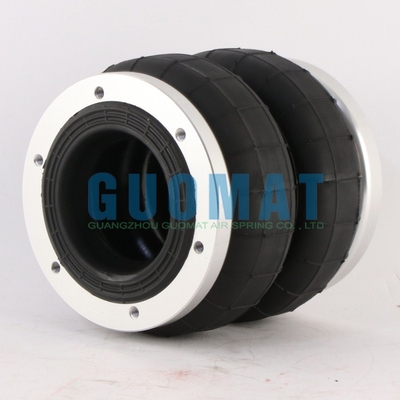

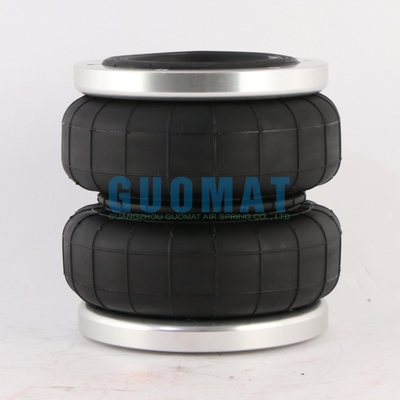

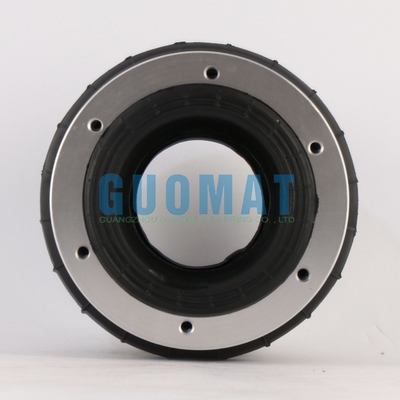

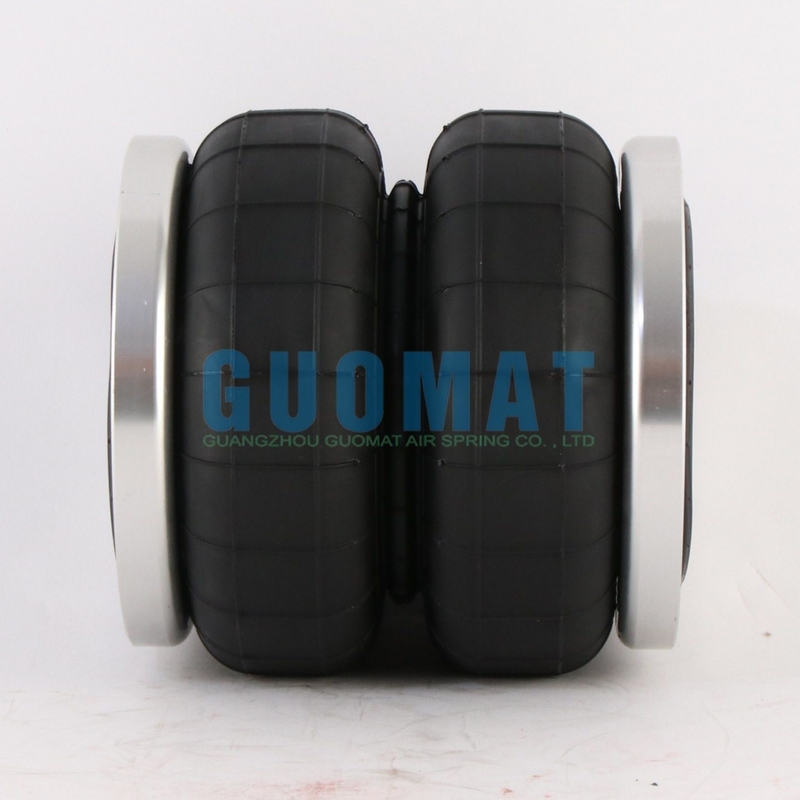

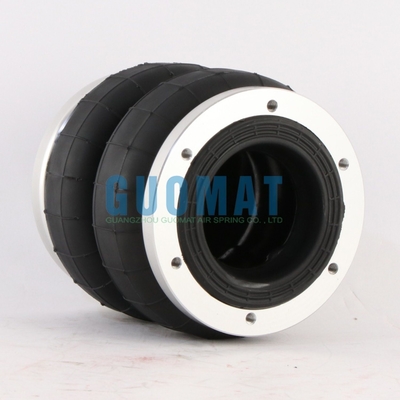

2S70-13F Suspension Air Spring Double Convoluted Air Shocks With Open Flange

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2S70-13F

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2S70-13F	Spring Material:	Rubber And Aluminum
Air Spring Structure:	Double Convoluted	Quality:	100% Tested
Condition:	Brand New	Vibration Frequency:	2.7 Hz
Operation:	Gas-filled	Air Shocks:	Provide Comfort And Support
Highlight:	2S70-13F Suspension Air Spring , Suspension Air Spring With Open Flange

2S70-13F Suspension Air Spring Double Convoluted Air Shocks With Open Flange

2S70-13F Air Spring Technical Data

Weight	1.35kg
Load Bearing	2.88kN 3.0 bar
The Screw Hole	6 pieces X1/4

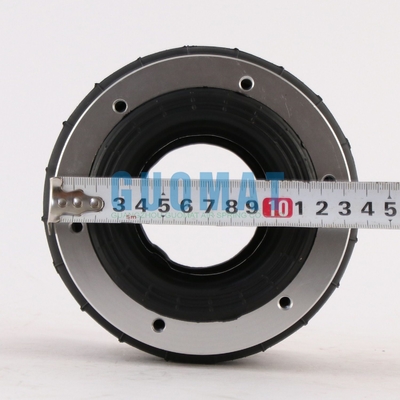

Flange Width	134mm
Distance Between Screw Holes	114.5mm
Design Height	153 mm
Minimum Height	65 mm
Maximum Height	175 mm
Stroke	110 mm
The Rubber Bellow Diameter	146mm
Flange Thickness	15mm

Product Applications

Gate Valve Operator
Glue Coating Machine
Web Tightening Tool
Stripper
Tool Spring Driver
Quenching Drain Driver
Paper Mill
Pickling Tank Driver

Flange Air Spring Introduction

First, flange air springs are adjustable. By controlling the pressure of compressed air, the height and hardness of the vehicle can be adjusted. This allows the driver to adjust the vehicle's suspension system according to road conditions and personal needs, providing a more comfortable and stable driving experience. Whether driving on city roads or rugged mountain roads, flange air springs can provide optimal suspension adjustment.
Second, flange air springs have excellent shock absorption performance. Due to the compressibility of air, flange air springs can better absorb and disperse road vibrations, reducing the vibration of vehicles and passengers. This allows drivers to feel less bumps and vibrations during driving, improving driving comfort and stability. At the same time, flange air springs can also automatically adjust the air pressure according to the load conditions of the vehicle, so that the vehicle always maintains the best suspension state.
Third, flange air springs have high reliability and durability. It is made of high-strength rubber and metal materials with good wear resistance and corrosion resistance. This allows flange air springs to withstand greater pressure and loads and have a longer service life. In addition, flange air springs can also be monitored and adjusted in real time through automatic control systems to ensure their normal operation and safety performance.
Finally, flange air springs have low maintenance costs and are easy to install. Due to their simple structure and no need for lubrication, flange air springs require almost no maintenance. At the same time, their installation is relatively simple, and they only need to be connected to the vehicle's suspension system. This allows vehicle manufacturers and car owners to enjoy the advantages and convenience of air suspension systems more conveniently.
In summary, flange air springs are an ideal choice for air suspension systems. They have the advantages of adjustability, excellent shock absorption performance, reliability and durability, low maintenance costs and easy installation. In the future design and manufacturing of vehicles, flange air springs will have a wider range of applications and provide drivers with a more comfortable, stable and safe driving experience.
