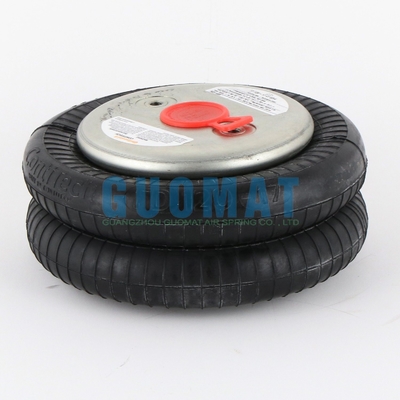

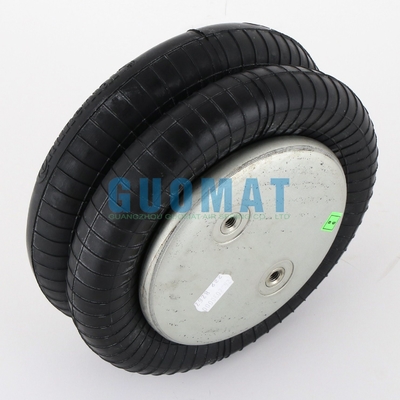

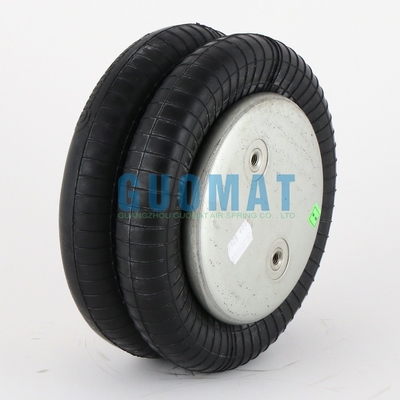

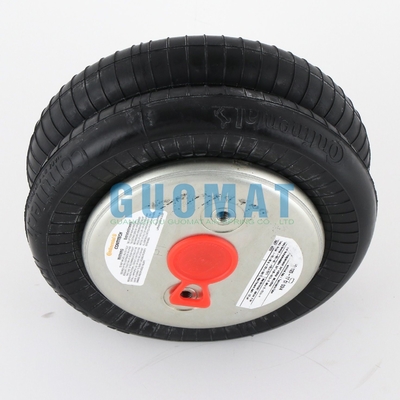

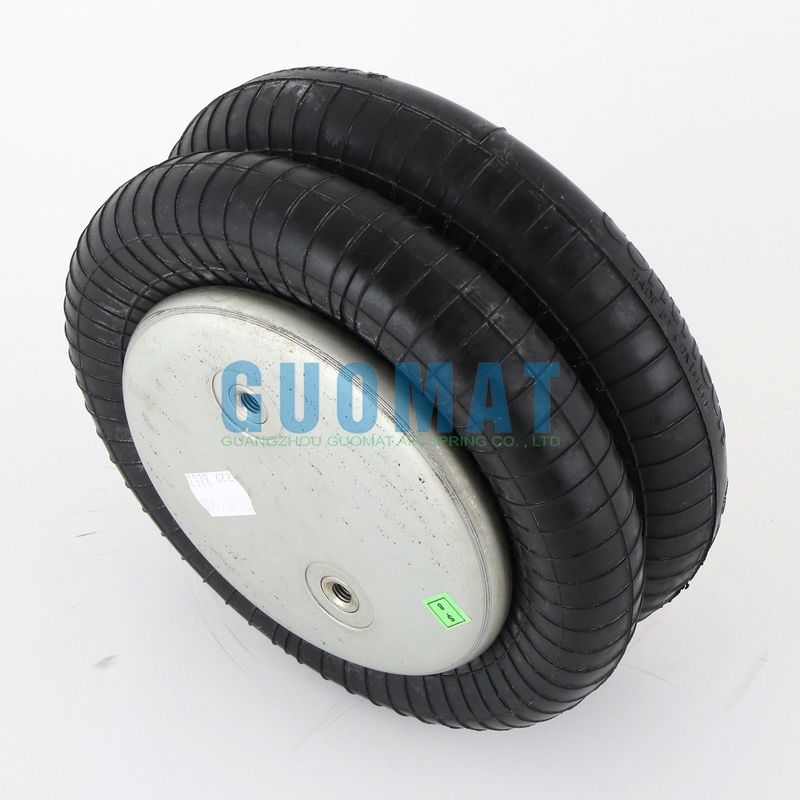

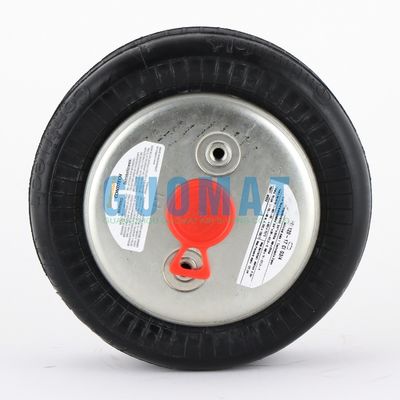

FD120-17 Contitech Pneumatic Air Spring 2B-181 Double Convoluted Air Actuator

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B120-17

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B120-17	Material:	Rubber And Steel
Function:	Reduce Shock	Condition:	Brand New
OEM:	FD 120-17	Brand Name:	GUOMAT
Operation:	Gas-Filled	Working Temperature:	-40℃+70℃
Highlight:	FD120-17 Contitech Pneumatic Air Spring , 2B-181 Pneumatic Air Spring , Double Convoluted Air Actuator

FD120-17 Contitech Pneumatic Air Spring 2B-181 Double Convoluted Air Actuator

Technical Data

Top Cover Plate Diameter	Ø135mm
Bottom Cover Plate Diameter	Ø135mm
Top Cover Plate Screw (Nut) Tooth	2XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth	2XM8X1.25
Screw Center Distance Of Top Cover Plate	Ø70mm
Screw And Gas Hole Distance Of Bottom Cover Plate	Ø70mm
Air Inlet	1/4NPTF
Rubber Bellow MAX Diameter	215mm
The Natural Height	167mm
The Working Stroke	MAX 230mm to MIN 75mm

Force F [kN]

Pressure p	[bar]	3	4	5	6	7	8
Height H [mm]	200	3.4	4.75	5.9	7.25	8.5	9.7
	180	4.18	5.65	7.05	8.6	10.1	11.5
	160	4.9	6.5	8.13	9.85	11.5	13.1
	140	5.48	7.24	9.05	10.9	12.7	14.5
	120	5.98	7.93	9.9	11.9	13.9	15.8
	100	6.43	8.54	10.7	12.9	15.1	16.9
	80	6.8	9.05	11.3	13.7	15.9	17.9

Product Details

CONTITECH OEM Number: FD120-17
CONTITECH OEM Number: FD 120-17
CONTITECH OEM Number: FD120 17
CONTITECH OEM Number: FD 120 17
AIRKRAFT OEM Number: 2B-181
AIRKRAFT OEM Number: 2B 181

Air Suspension Applications

Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as

Flexibility (no angle or alignment problem)
Compactness
Power / price ratio
No maintenance or lubrication required
Durability
Reliability
Resistance to aggressive or hot conditions
