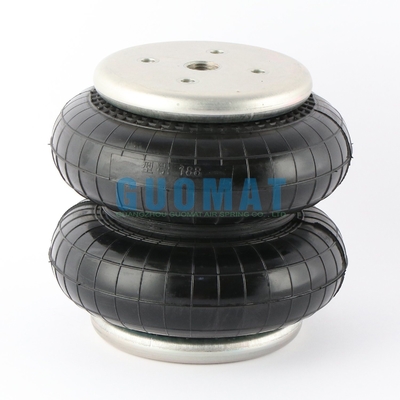

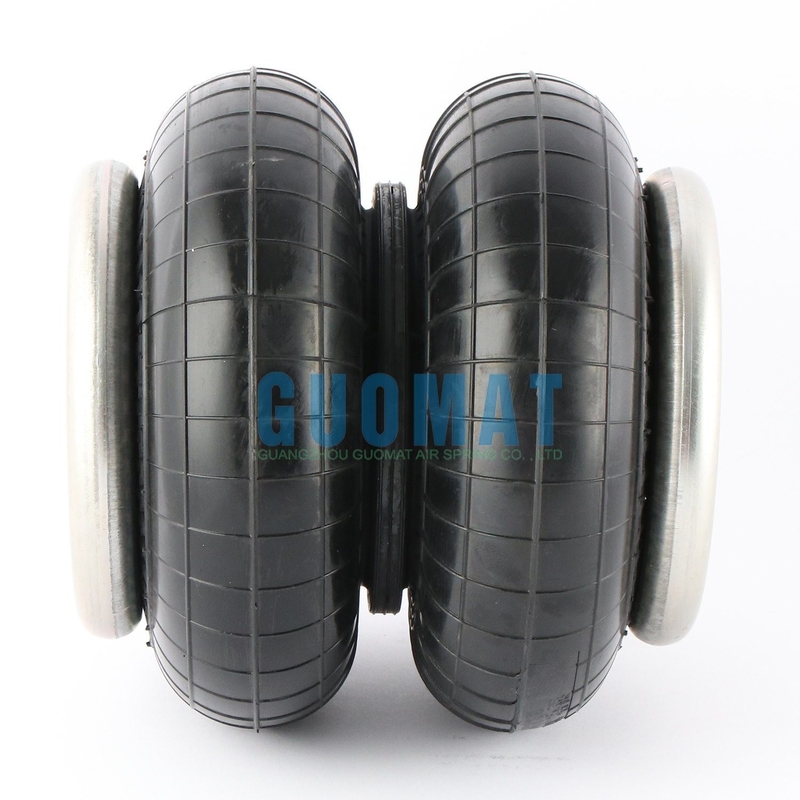

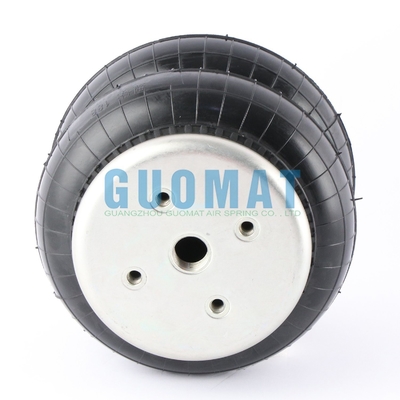

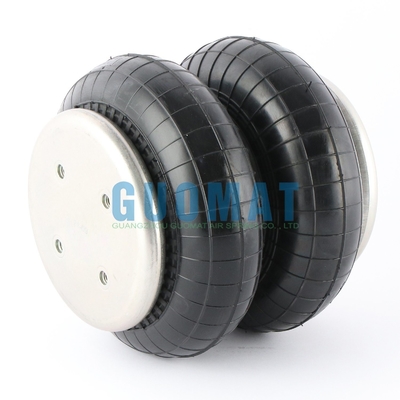

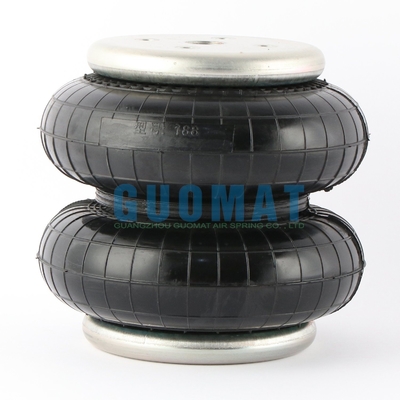

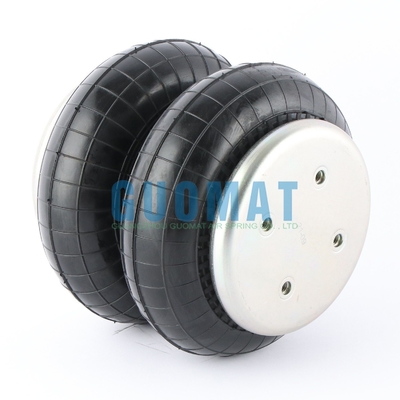

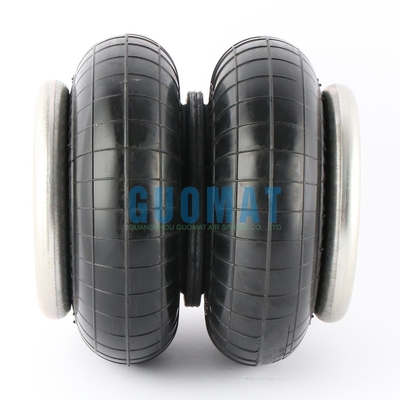

2B188168 Double Convoluted Air Suspension G 1/4 Air Hole For Press Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B188168

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B188168	Structure:	Double Convoluted
Damping Force Direction:	Bidirectional	Quality:	100% Tested
Color:	Black	Trademark:	GUOMAT
Warranty:	1 Year	Type:	Gas-Filled
Highlight:	Double Convoluted Air Suspension , 2B188168 Double Convoluted Air Suspension

2B188168 Double Convoluted Air Suspension G 1/4 Air Hole For Press Equipment

Product Specifications

Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth	4 pcs X M8X1.25
Screw and Air Inlet Distance of Top Cover Plate	70mm
Bottom Cover Plate Screw (Nut) Tooth	4 pcs X M8X1.25
Screw Center Distance of Bottom Cover Plate	70mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet	G1/4
Cover Plate
Top Cover Plate Diameter	135mm
Bottom Cover Plate Diameter	135mm
Rubber Bellow
Rubber Bellows Natural Diameter	189mm
Rubber Bellow Natural Height	177mm
Compressed Height	79mm
Design Height	178mm-203mm
Maximum Diameter	218mm

Cross References Number

Contitech Number: 603N	Contitech Number: 603 N	Fire-stone Number: W01-358-0142
Fire-stone Number: W01 358 0142	Fire-stone Number: W013580142	Fire-stone Flex Number: 26
Phoenix Number: 2B07R	Phoenix Number: 2B07 R	Phoenix Number: 2B 07 R
Contitech Number: FD120-17	Contitech Number: FD 120-17	Goodyear Number: 2B7-540
Goodyear Number: 2B 7-540	PIRELLI 26	AIRKRAFT 114050
BOS-CH 822419042	DUNLOP 2682 030000	DUNLOP (FR) SO 8201
FE-STO EB-215-155	NORGREN PM/31082 (8x2)	PIRELLI T26 84181
TAURUS KF 218	WEFORMA WBZ 300-E1	AIRKRAFT 113053

Product Applications

Applications
Scissor lift
Hopper vibration and damping
Mechanical handling stop
Quick lock device
Reel tensioning
Machine isolation
Direct force
Impact absorbtion
Roller tensioning
Platform lift
Short stroke mechanical linkage
Hot foll stamping press

Support and Services

The Suspension Air Springs product technical support and services include:
Expert troubleshooting assistance to diagnose and resolve technical issues
Guidance on proper installation and maintenance procedures
Product documentation, including user manuals and technical specifications
Product training and education for customers and service technicians
Warranty and repair services, including replacement parts and exchange programs
Customer support for urgent technical issues or service needs

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
