Firestone Air Rubber Bellow W01-M58-6105 1/4 BSP Air Inlet Transfer Station Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6015

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6015	Material:	Rubber And Steel
Function:	Reduce Shock	Condition:	Brand New
Trademark:	GUOMAT	Air Hole:	1/4 BSP
Minimum Height:	76 MM	Maximum Height:	203 MM
Highlight:	Air Rubber Bellow W01-M58-6105 , Firestone Air Rubber Bellow

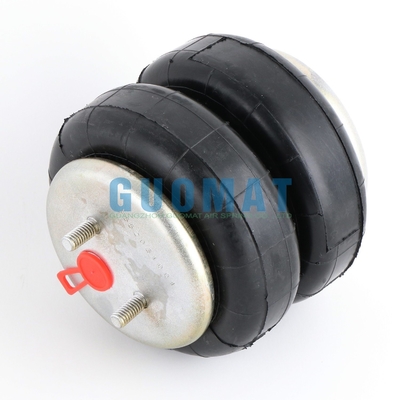

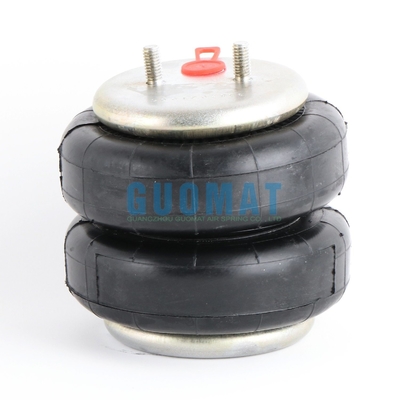

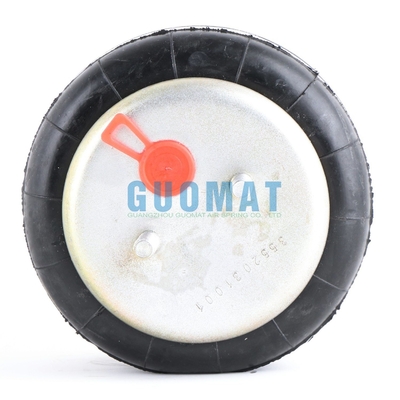

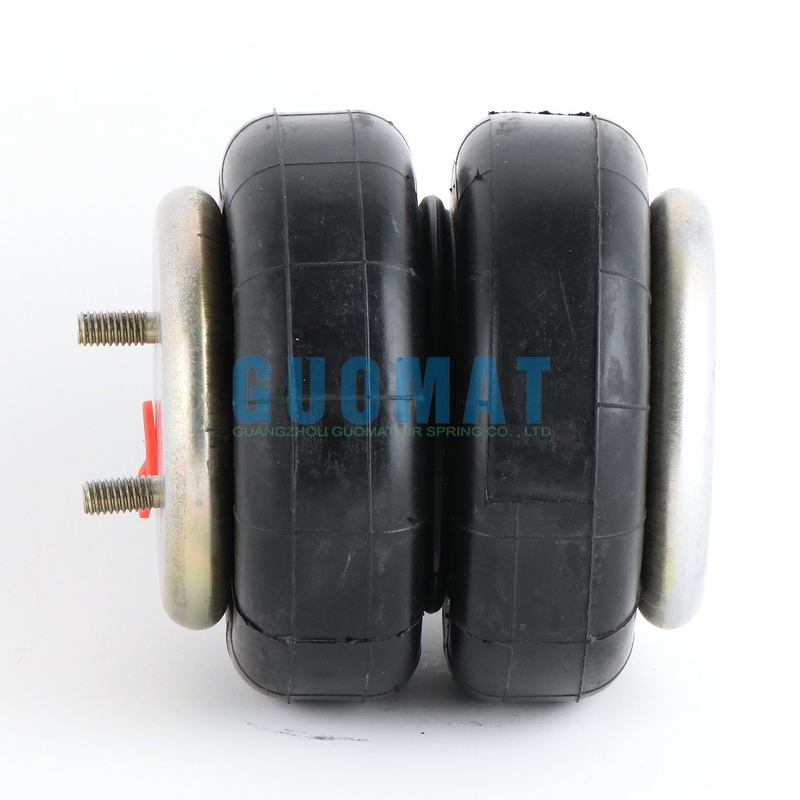

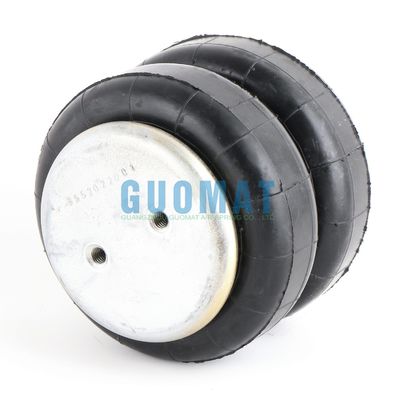

Firestone Air Rubber Bellow W01-M58-6105 1/4 BSP Air Inlet Transfer Station Machine

Product Introduction

Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.

Product Information

Number of screws on the top cover: 3
Number of bottom cover screws: 2
Top cover plate screw (nut) tooth: M8
Top cover screw center distance: 93mm
Screw (nut) teeth of the bottom cover plate: M8
Center distance of bottom cover plate screw: 44 mm
Air hole/air inlet/air connector
Air hole/air inlet: 1/4 BSP
Top cover diameter: 114 mm
Diameter of bottom cover: 114 mm
Rubber Bellow Max. Dia.: 163 mm
Buffer block/buffer block
Unbuffered block
Waist ring/waist ring
Strap ring: no strap ring

OEM Number

W01-M58-6105	W01M586105	W01 M58 6105
W01-m58-6105	WO1-M58-6105	WO1M586105
W01m586105	255-1.5	WO1 M58 6105

Firestone Style 255-1.5 We Can Supply

Blind nuts, 1/4 BSP

W01-M58-6405, W01 M58 6405, W01M586405

WO1-M58-6405, WO1 M58 6405, WO1M586405

Socket head aluminum bead rings(bolts, nuts, washers not included, use cap screws)

W01-358-6833, W01 358 6833, W013586833

WO1-358-6833, WO1 358 6833, WO13586833

Rubber bellows only

W01-358-0048, W01 358 0048, W013580048

WO1-358-0048, WO1 358 0048, WO13580048

What Are The Advantages of Our Shock Absorbers

Increase driving comfort
Effectively eliminate abnormal sound,noise in the driving process,jitter,make driving more comfortable
Lower fuel consumption and longer life
Reduce fuel consumption,prolong the life of car related chassis parts,reduce the cost of car maintenance
High stability
In the sharp turn,winding road,pothole road,automatic adjutment of the body constant height,to ensure comfort,maintain stability

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
