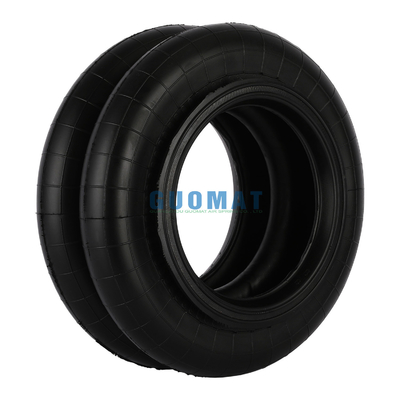

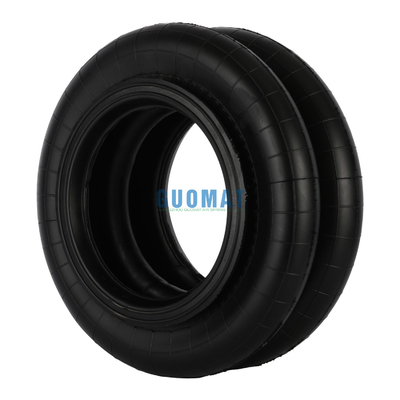

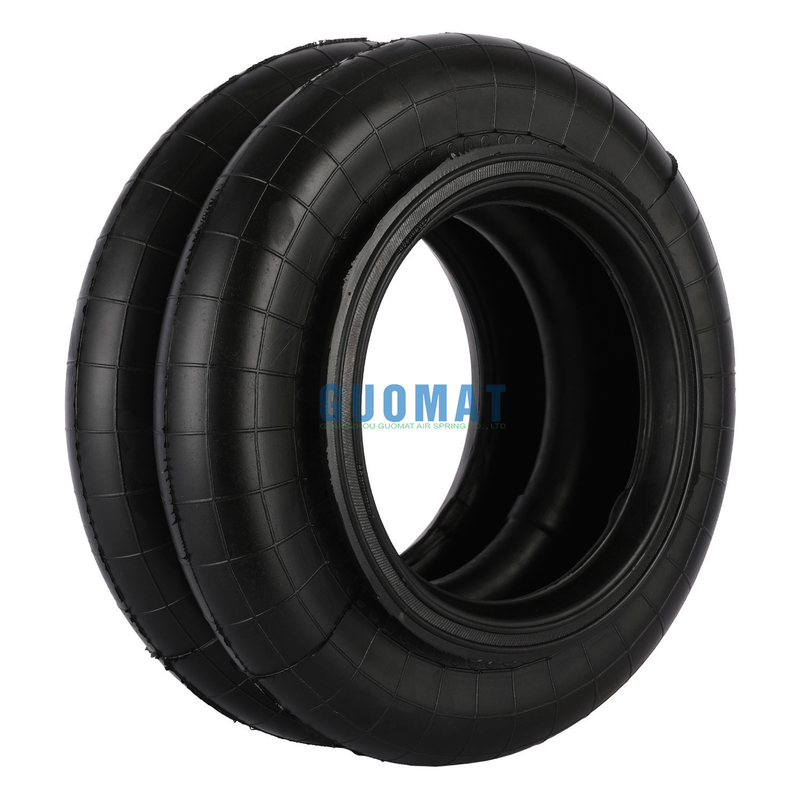

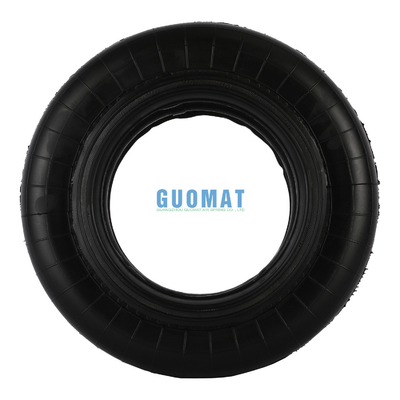

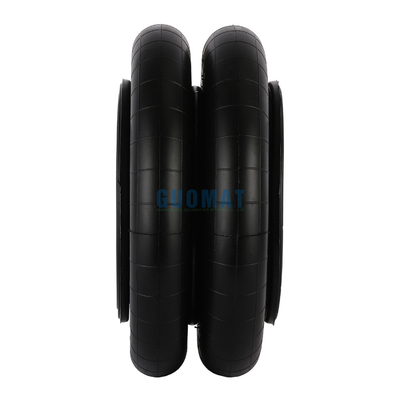

Dunlop Suspension Air Spring 12X2 Rubber Bellows Only Truck Suspension Air Lift

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	12×2

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product NO.:	12X2	Material:	Natural Rubber
Bellows Type:	Double Convoluted	Quality:	100% Tested
Condition:	Brand New	OEM:	Firestone W01-R58-4044
Manufacturer:	GUOMAT	Working Temperature:	-40℃+70℃
Highlight:	Dunlop Suspension Air Spring , Truck Suspension Air Spring

Dunlop Suspension Air Spring 12X2 Rubber Bellows Only Truck Suspension Air Lift

Product Introduction

Suspension Air Springs are air shocks designed to provide superior quality, durability and load capacity for a range of automotive applications. Made with high-grade rubber and steel, they are engineered to provide superior performance in temperatures ranging from -40℃ to +70℃. With their superior load capacity and durability, these air shocks are ideal for vehicles of all sizes, shapes and types. They are designed to provide superior shock absorption and stability, resulting in a smoother and safer ride. In addition, they are easy to install and require minimal maintenance, making them a great choice for any vehicle.

Product Specification

Rubber Bellow Diameter	304mm
Min.Height	68mm
Nominal Diameter	177mm

Other OEM NO.

Bellow Number	12×2
Firestone Air Spring	4044
Firestone Air Spring	W01-R58-4044
Firestone Air Spring	W01 R58 4044
Firestone Air Spring	W01R584044
Firestone Air Spring	WO1-R58-4044
Firestone Air Spring	WO1 R58 4044
Firestone Air Spring	WO1R584044
Firestone Air Spring	w01-r58-4044
Firestone Air Spring	w01 r58 4044
Firestone Air Spring	w01r584044
Dunlop Air Spring	SP 256NB
Dunlop Air Spring	SP256NB

Knowledge of GUOMAT Air Spring

An air spring is a carefully designed rubber/fabric bellows which contains a column of compressed air. The rubber bellows itself does not provide force or support load. This is done by the column of air. GUOMAT air springs are highly engineered elastomeric bellows with specially designed metal end closures. Our standard two ply air spring bellows is actually made up of four layers:

a. An inner liner of calendered rubber.
b. One ply of fabric reinforced rubber.
c. A second ply of fabric-reinforced rubber (with the cords at
a specific bias angle to the first ply).
d. An outer cover of calendered rubber.

Many of our air springs are also available in high strength construction for higher pressures. In this case, there are four plies of fabric-reinforced rubber, with an inner liner and outer cover.
