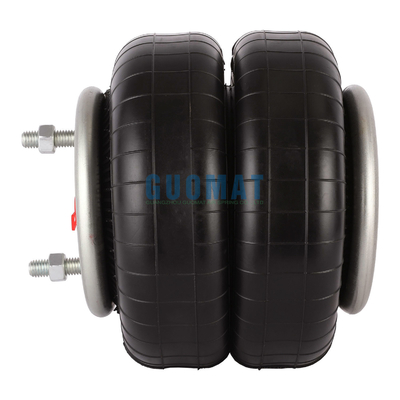

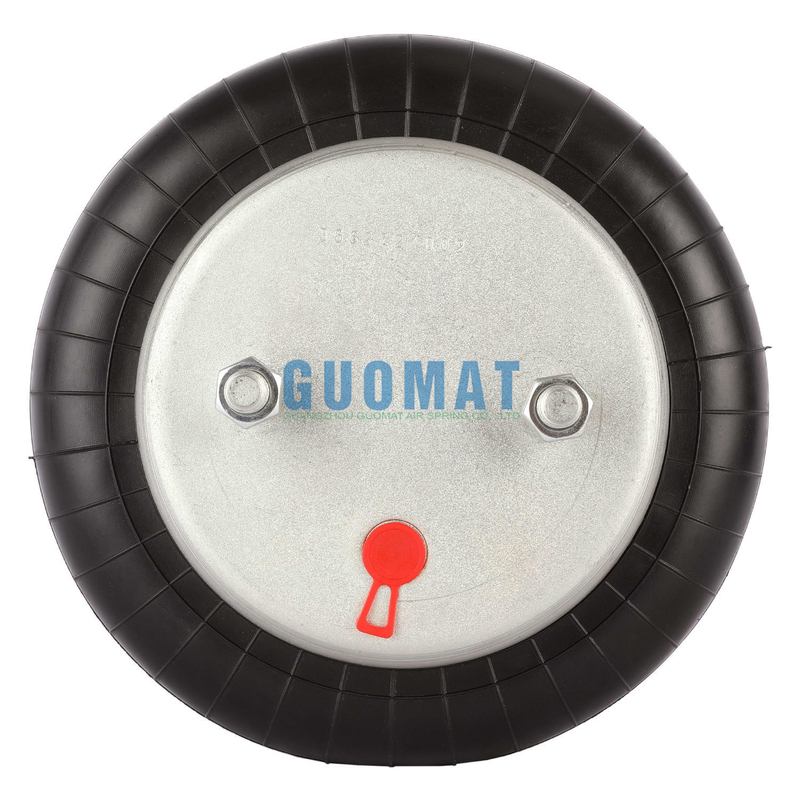

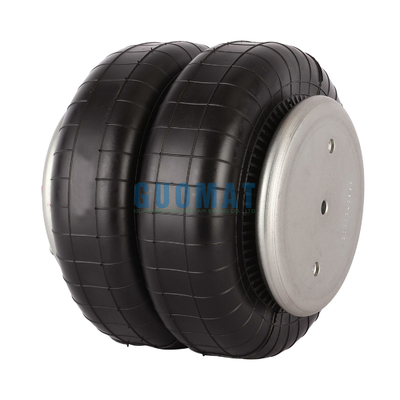

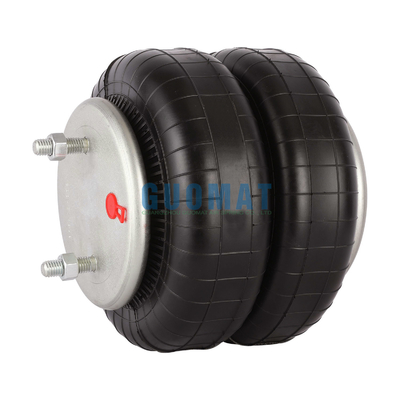

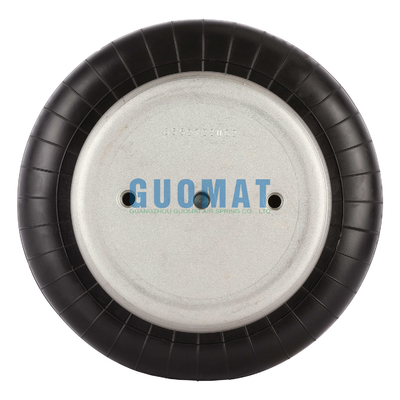

FD200-25 426 Contitech Suspension Air Spring M8 Nuts Air Actuator 100% Tested

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6943

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6943	Spring Material:	Rubber And Steel
Structure:	Double Convoluted	Function:	Reduce Shock
Fire-Stone:	W01-358-6943	Goodyear:	2B9-250
Trademark:	GUOMAT	Warranty:	1 Year
Highlight:	FD200-25 426 Contitech Suspension Air Spring , Rubber And Steel Suspension Air Spring , Suspension Air Spring W01-358-6943

FD200-25 426 Contitech Suspension Air Spring M8 Nuts Air Actuator 100% Tested

Air Spring Introduction

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

Product Specifications

Bottom Plate Alignment: Parallel

Bottom Plate Center To Center Diameter: 89 mm

Bottom Plate Diameter: 161 mm

Bottom Plate Hole Quantity: 2

Bottom Plate Type: Steel

Top Plate Alignment: Parallel

Top Plate Center To Center Diameter: 89 mm

Top Plate Diameter: 161 mm

Top Plate Hole Quantity: 3

Top Plate Type: Steel

Bellow Maximum Diameter: 260 mm

Expanded Height: 325 mm

Compressed Height: 77 mm

Spring Type: Double Convoluted

Air Inlet: G 1/4

Nut/Blind Nuts Type: M8

Manufacturer Part Number

Fire-stone W01-358-6943
Contitech FD 200-25 426
Contitech 161332
Goodyear 2B9-250
Goodyear 578923206
Triangle 6332/4426
Watson&Chalin AS-0041
Neway/SAF 90557237
Ridewell 1003586943C
Tuthill 6352
V-Steer II(Lift Bag)
Van Raden

GUOMAT Air Spring Advantages

Long service life
Maintenance-free
Highly operational safety
Frictionless
Lateral misalignment possible
Chemical resistance
