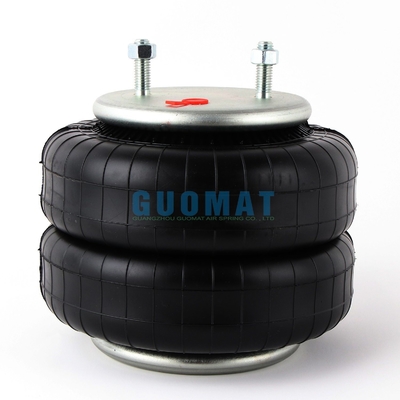

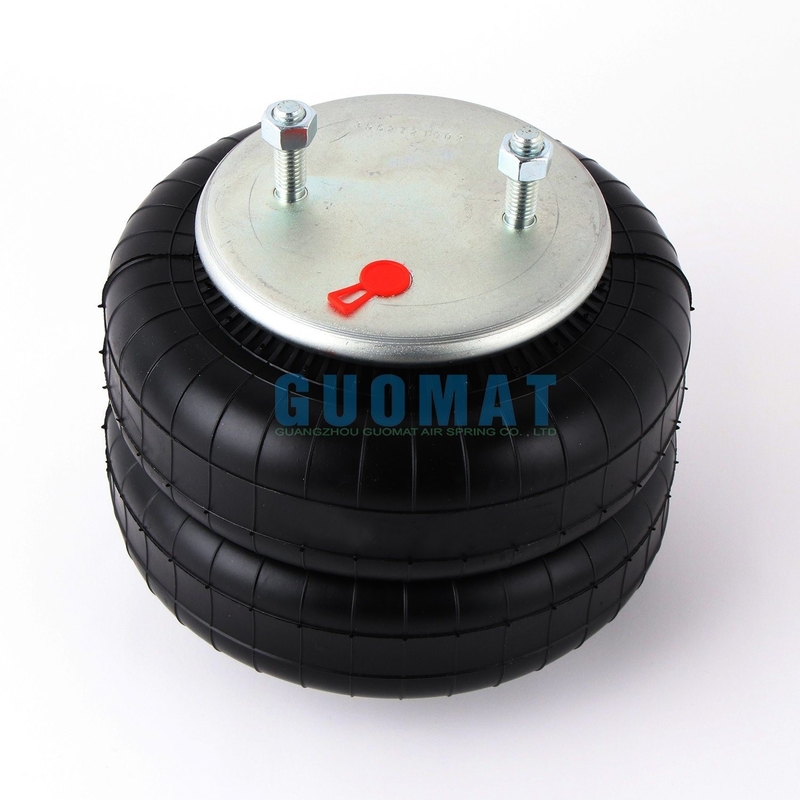

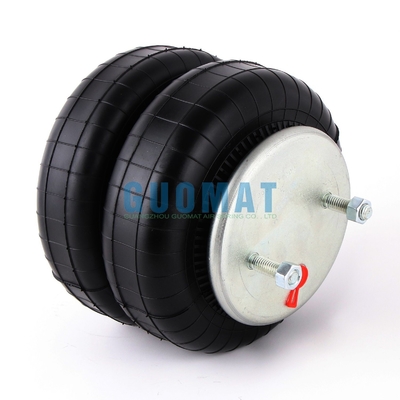

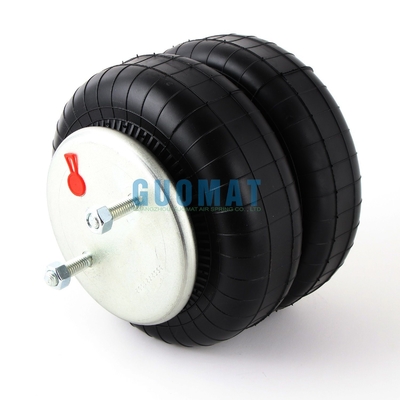

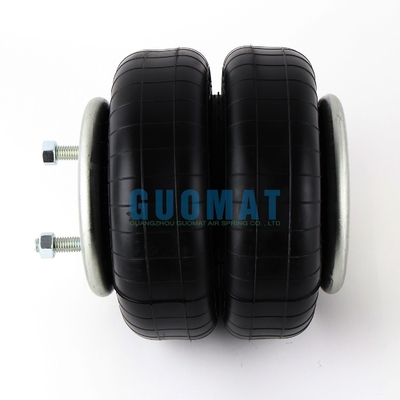

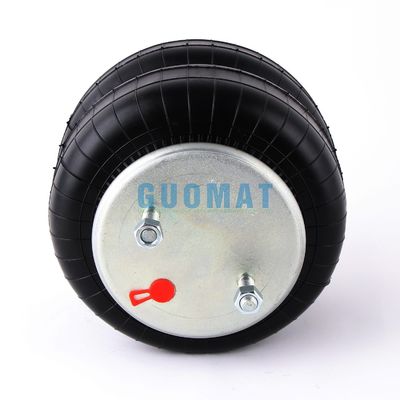

Double Convoluted Air Spring Firestone W01-358-6943 Goodyear 2B9-250

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6943

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6943	Damping Force Direction:	Bidirectional
Function:	Reduce Shock	Watson&Chalin:	As-0041
Position:	Industrial Machine	Air Inlet:	1/4-18 NPT
Design Height:	231 MM	Rubber Bellow Max. Dia.:	225 MM
Highlight:	2B9-250 Double Convoluted Air Spring , W01-358-6943 Double Convoluted Air Spring

Double Convoluted Air Spring Firestone W01-358-6943 Goodyear 2B9-250 Best Warranty

Product Details

Body Dia.[Max]: 125 mm
Compressed Height: 65 mm
Temperature Range [Min]: -30℃
Air Inlet Type: Imperial
Stroke Length [Max]: 80mm
Pressure [Max]: 0-8 bar
Height [Max]: #
Height [Min]: #
Air Inlet: 1/4-18 NPT
Nut/Blind Nuts: 1/2-13 UNC
Center to Center Distance: 89 mm
Distance Air Hole Betweeen Screw: 44 mm

Cross References

AUTOMANN	SP2B12RA-6943, SP2B12RA 6943
CONTITECH	FD 200-25 426 / 161 332, FD200-25 426 / 161 332, FD20025 426 / 161 332 FD 20025 426 / 161 332, FD 200 25 426 / 161 332, FD200 25 426 / 161 332
FIRESTONE	W01-358-6943, W01 358 6943, W013586943 WO1-358-6943, WO1 358 6943, WO13586943
FLEETPRIDE	AS6943
GOODYEAR	2B9-250, 2B 9-250, 2B9 250, 2B9250, 2B 9 250 578 9 2 3206, 578923206
TRP	AS69430

OEM References

GRANNING	63502
LEYLAND	RC2122
LOADGUARD	SC2122
NEWAY	90557237
RIDEWELL	1003586943C
SAF HOLLAND	905-57-237
SPRING VALLEY	AS-4426
SUSPENSIONS INC	200835
TRIANGLE	4426
WATSON & CHALIN	AS-0041

Support And Services

Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
