2B6X6 Air Spring Double Convoluted Air Rubber Bellow For Pneumatic Accessory

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6X6

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6X6	Spring Material:	Rubber
Structure:	Double Convoluted	Damping Force Direction:	Bidirectional
Function:	Reduce Shock	Quality:	100% Tested
Trademark:	GUOMAT	Warranty:	1 Year
Highlight:	2B6X6 Air Spring , Double Convoluted Air Spring

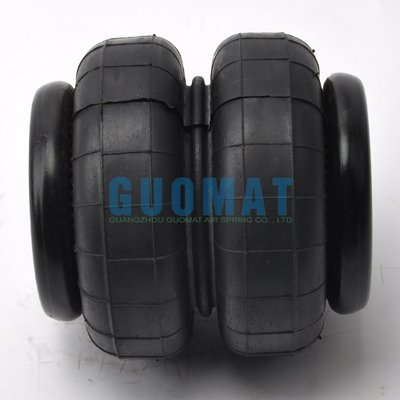

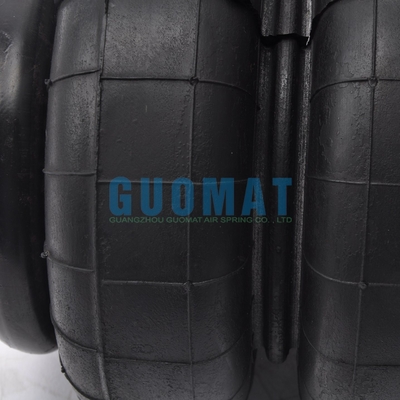

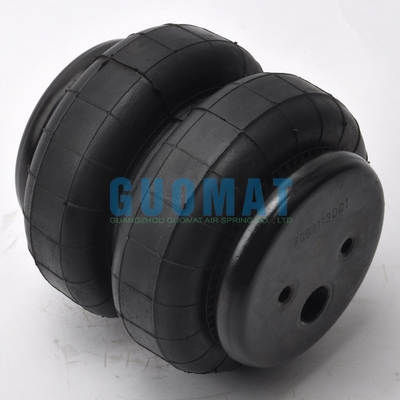

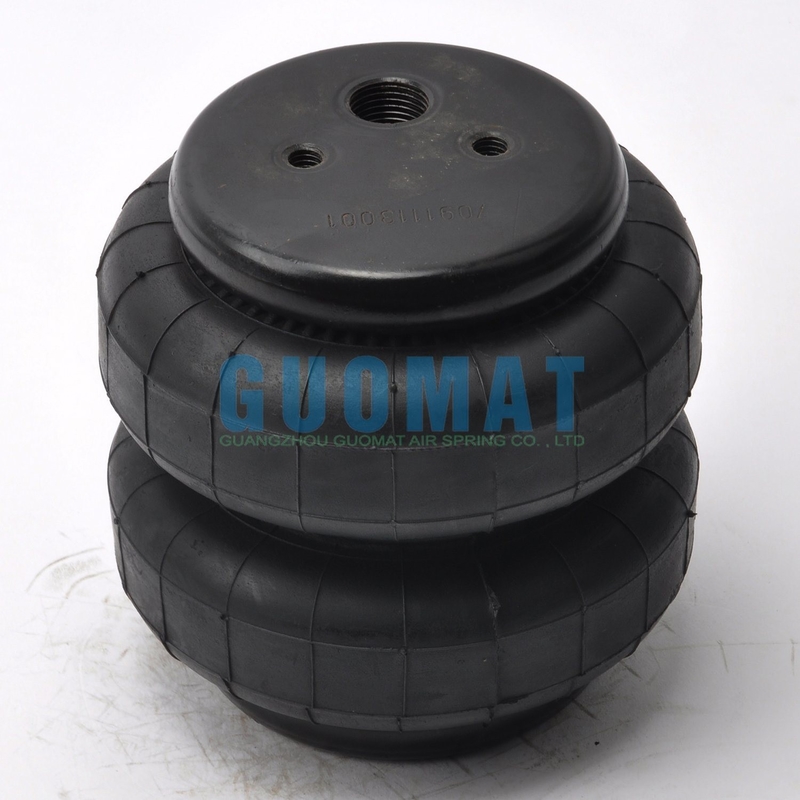

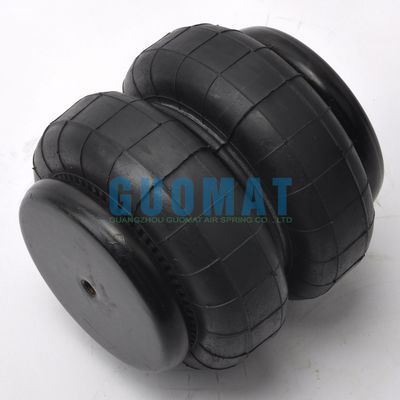

2B6X6 Air Spring Double Convoluted Air Rubber Bellow For Pneumatic Accessory

Product Description

The GUOMAT Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air suspensions provide superior quality and performance. We offers a variety of air shock absorber types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.

Product Technical Data

Type	single 1/2" port
Top Fastener	3/8″-16
Design height	152mm
Deflection Height min	65 mm
Deflection Height max	175 mm
Loading cap. at 3.0bar	2.88kn
Loading cap. at 7.0bar	7.23kn

Double Convoluted Air Springs We Can Offer

FD 40-10 CI	FD 70-13 CI	FD 110-15 CI	FD 120-17 CI	FD 120-20 CI	FD 200-19 CI	FD 200-22 CI
FD 200-25 CI	FD 330-22 CI	FD 330-30 CI	FD 530-22 CI	FD 530-35 CI	FD 960-22 CI	FD 1330-25 CI

Product Applications

Off-highway vehicles such as construction equipment, agricultural machinery, and mining equipment, where air springs are used for suspension and to improve ride comfort and stability.
Press equipment and part extraction, where air springs are used as actuators.
Test equipment and motion simulators , where air susupensions are used as vibration isolators and to reduce shock and noise.
Precision equipment and machinery, such as printing presses, where air shocks are used for vibration isolation and leveling.
Textile machinery, where air bags are used to provide a smooth and stable ride, improve the quality of the finished product, and reduce the wear and tear on machinery.
Paper mill machinery, where air shock absorptions are used for suspension, levelling and vibration isolation.
Cheese and dairy industry machines

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
