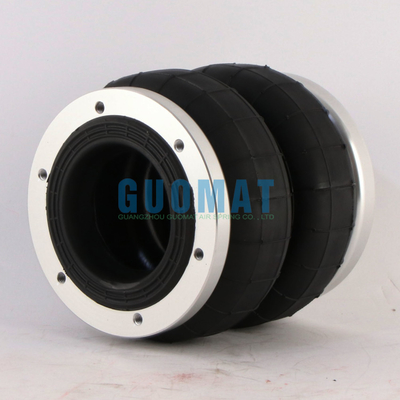

2S70-13F Airride Flange Air Suspension Double Convoluted Air Shocks Max. H. 175MM

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2S70-13F

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2S70-13F	Function:	Reduce Shock
Trademark:	GUOMAT	Position:	Industrial Machine
Type:	Gas-Filled	Material:	Rubber And Steel
Working Temperature:	-40°C Bis +70°C	Flange Width:	134 MM
Highlight:	2S70-13F Airride Flange Air Suspension , Double Convoluted Airride Flange Air Suspension

2S70-13F Airride Flange Air Suspension Double Convoluted Air Shocks Max. H. 175MM

Air Spring Introduction

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

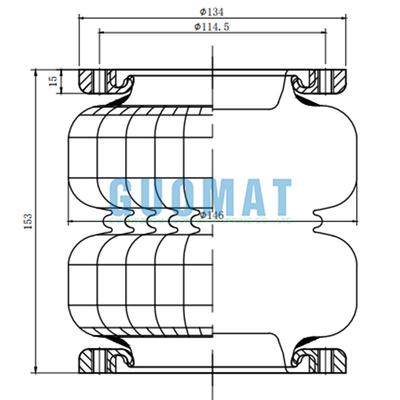

2S70-13F Air Spring Technical Data

Weight	1.35kg
Load Bearing	2.88kN 3.0 bar
The Screw Hole	6 pieces X1/4
Flange Width	134mm
Distance Between Screw Holes	114.5mm
Design Height	153 mm
Minimum Height	65 mm
Maximum Height	175 mm
Stroke	110 mm
The Rubber Bellow Diameter	146mm
Flange Thickness	15mm

Common Applications for Air Bags

Primary Trailer Suspension Air Springs provide outstanding cargo protection while reducing maintenance problems caused by road shock and 'trailer hop' when empty. Trailers last longer and can be used to haul a wider variety of cargo, reducing expensive empty trailer miles.
Lift Axle Air Springs allow you to lift the axle without ever leaving the cab. Saves tire wear under empty or partial load conditions and lets you negotiate tight corners with spread tandems.
Drive Axle Air Springs substantially improve the ride and handling of the tractor, resulting in greater driver comfort and safety, less tractor maintenance, longer tire wear and higher trade-in value. They require little maintenance and last more than twice as long as steel springs.
Front Axle Air Springs significantly improve steering and handling while improving tire wear and reducing problems caused by cab vibration.
Cab Mount Air Springs eliminate most problems experienced with standard cab mounts and help reduce damaging cab vibration.
Seat Air Springs increase driver comfort and help alleviate hazardous driver fatigue.
