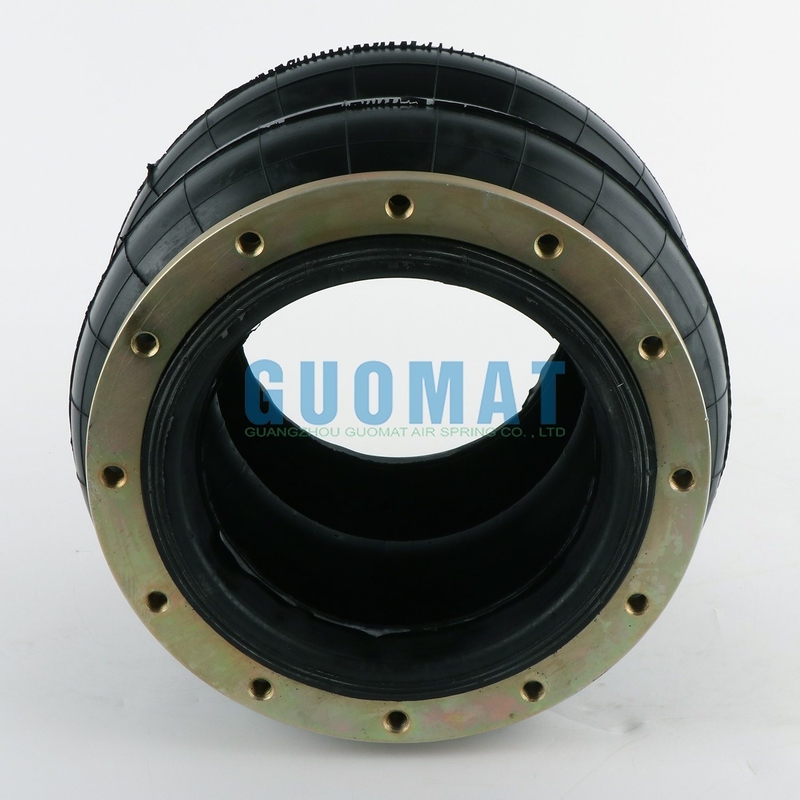

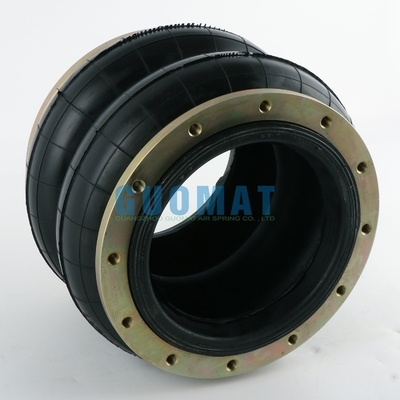

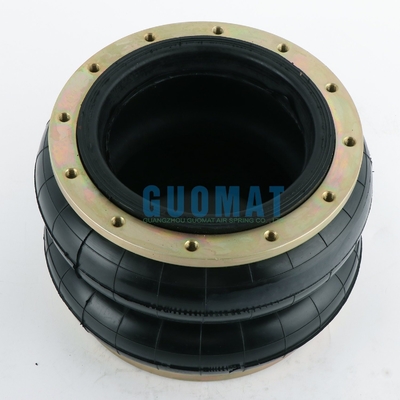

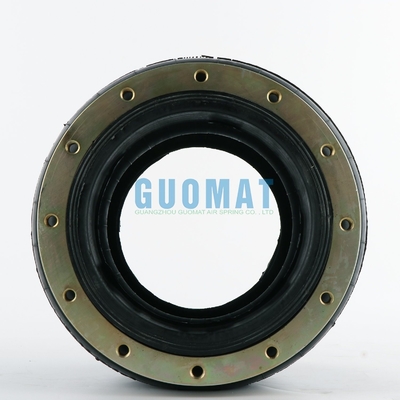

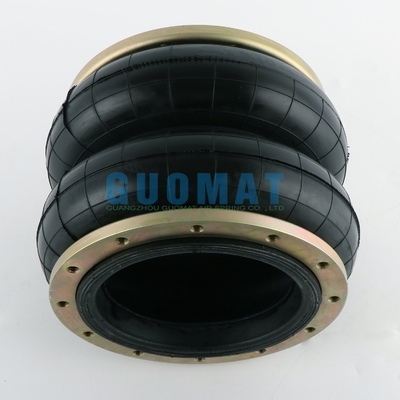

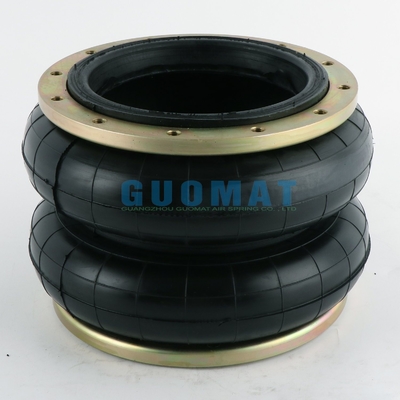

Lhf200/212-2 Double Convoluted Flange Air Suspension Spring For Pneumatic Applications

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	LHF200/212-2

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	LHF200/212-2	Structure:	Double Convoluted
Car Make:	Universal	Function:	Shock Absorber
Quality:	100% Tested	Trademark:	GUOMAT
Part:	Suspension Air Spring	Type:	Gas-Filled
Highlight:	Double Convoluted Flange Air Suspension Spring , Lhf200/212-2 Air Suspension Spring

Lhf200/212-2 Double Convoluted Flange Air Suspension For Pneumatic Applications

Product Technical Data

Design diameter: 200mm
Maximum outer diameter: 280mm
Front outer diameter: 208mm
Design height: 224mm
Stroke: 90mm-250mm
Effective area: 314.2cm2
Bearing capacity: 1257KG-2199KG (0.4-0.7Mpa)

Refer No.

LHF200212-2
LHF 200212-2
LHF200/212-2
LHF 200/212-2

Other Type Air Spring OEM Number

2B6-530	2B6-531	FD 40-10 CI	SP2907
2B6-532	2B6-535	FD 70-13 CI	SP2441
2B6-536	2B7-540	FD 110-15 CI	SP2917
2B7-541	2B7-542	FD 120-17 CI	SP1482
2B7-545	2B7-546	FD 120-20 CI	SP1490
2B8-550	2B8-552	FD 200-19 CI	SP1538
2B8-553	2B8-554	FD 200-22 CI	SP1541
2B9-200	2B9-201	FD 200-25 CI	SP2782NB
2B9-204	2B9-205	FD 330-22 CI	SP1556
2B9-216	2B9-250	FD 330-30 CI	SP1557
2B9-251	2B9-253	FD 530-22 CI	SP1408
2B12-309	2B12-218	FD 530-35 CI	SP2342
2B12-425	2B12-429	FD 960-22 CI
2B12-437	2B12-416	FD 1330-25 CI
2B14-352	2B14-353
2B14-354	2B14-355
2B14-362	2B14-363
2B14-452	2B15-375
2B15-376	2B15-377
2B15-378	2B19-8433
2B22-8539

Support and Services

The Suspension Air Springs product technical support and services include:
Expert troubleshooting assistance to diagnose and resolve technical issues
Guidance on proper installation and maintenance procedures
Product documentation, including user manuals and technical specifications
Product training and education for customers and service technicians
Warranty and repair services, including replacement parts and exchange programs
Customer support for urgent technical issues or service needs

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
