FD120-17 Contitech Suspension Air Spring Double Convoluted Air Shock Absorber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B7X7P01

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B7X7P01	Structure:	Double Convoluted
Function:	Shock Absorber	Trademark:	GUOMAT
Type:	Gas-Filled	Minimum Height:	3.0 Inches
Maximum Height:	9.1 Inches	Fitment Type:	Direct Replacement
Highlight:	FD120-17 Contitech Suspension Air Spring , Double Convoluted Contitech Suspension Air Spring

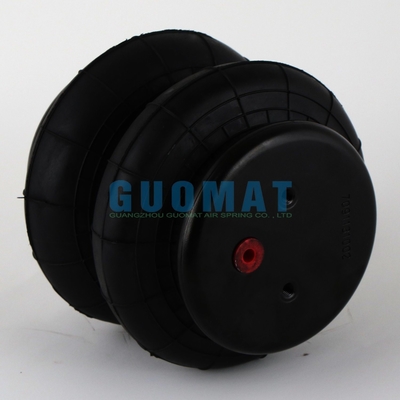

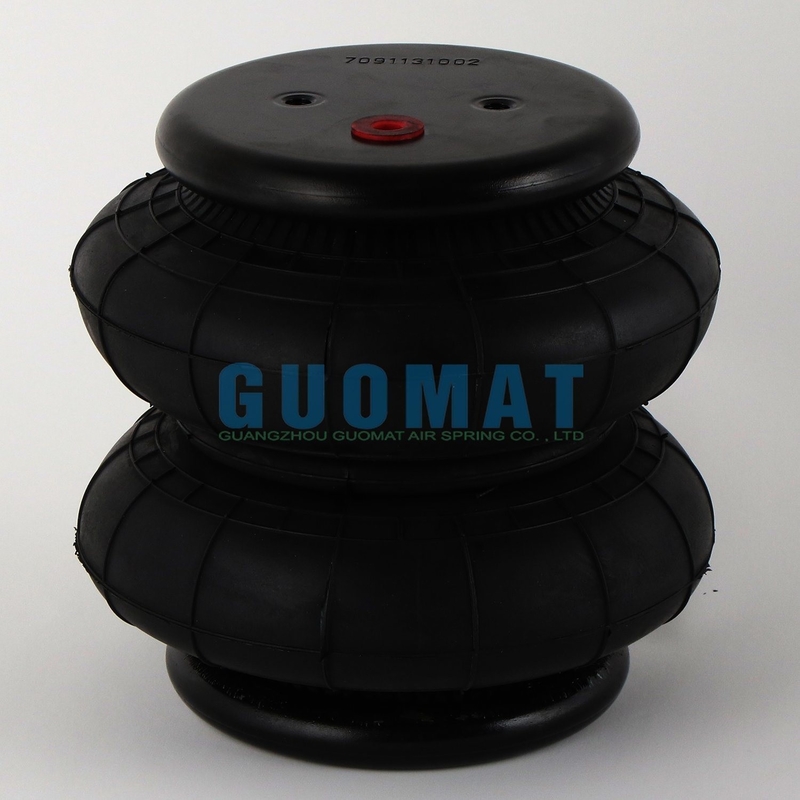

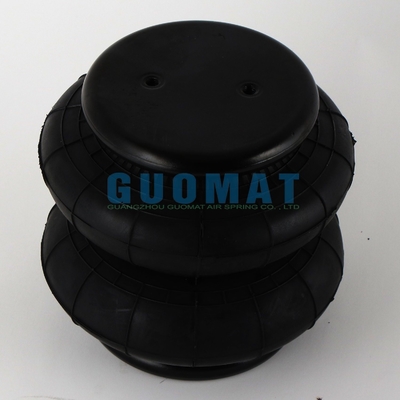

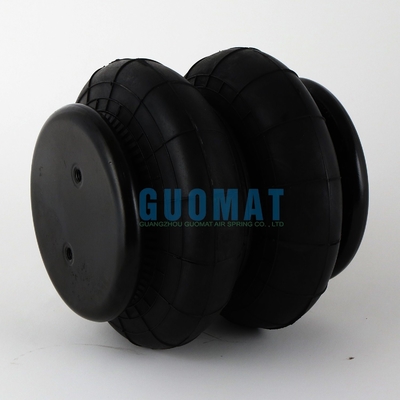

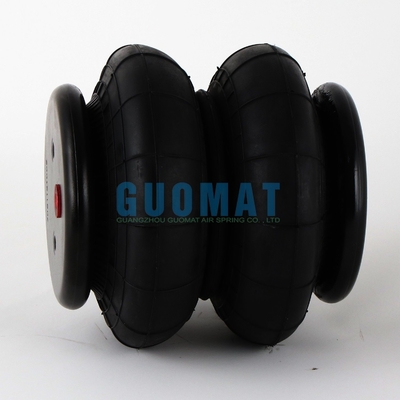

FD120-17 Contitech Suspension Air Spring Double Convoluted Air Shock Absorber

GUOMAT Air Spring Introduction

Air springs are exceptionally robust, meticulously designed, and highly economical, making them ideal for a broad spectrum of motion control and vibration suppression applications. With their tried-and-tested architecture, fabric-reinforced neoprene or natural rubber diaphragms, and corrosion-resistant end fittings, these air actuators deliver unparalleled reliability and efficiency.
Functioning as vibration isolators, air springs significantly mitigate the adverse effects of oscillations. They offer the dual benefit of vibration dampening and load height adjustment, ensuring consistent vibration control across varying load capacities.

Product Details

Nut/Blind nuts
Nut length: 25 mm
Number of screws on the top cover: 2
Number of bottom cover screws: 2
Top cover plate screw (nut) tooth: 2×3/8UNC
Top cover screw center distance: 2.76 Inches
Screw (nut) teeth of the bottom cover plate: 2×3/8UNC
Center distance of bottom cover plate screw: 2.76 Inches

Air hole/air inlet/air connector
Air hole/air inlet: 3/4 NPT

Cover
Top cover diameter: 5.55 Inches
Diameter of bottom cover: 5.55 Inches

Rubber bellows
Maximum diameter of rubber bellows: 8.46 Inches
Buffer block/buffer block
Unbuffered block
Waist ring/waist ring
Strap ring: no strap ring

OEM Number

GUOMAT 2B7x7P01
GUOMAT 2B7x7 P01
CONTITECH FD 120-17
CONTITECH FD120-17

Contitech Double Convoluted Type Air Spring

FD 40-10 CI	FD 70-13 CI
FD 110-15 CI	FD 120-17 CI
FD 200-19 CI	FD 200-22 CI
FD 200-25 CI	FD 330-22 CI
FD 330-30 CI	FD 530-22 CI
FD 530-35 CI	FD 960-22 CI
FD 1330-25 CI	FD 120-20 CI

FAQ

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.
