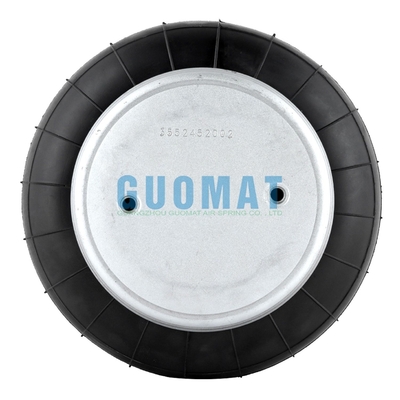

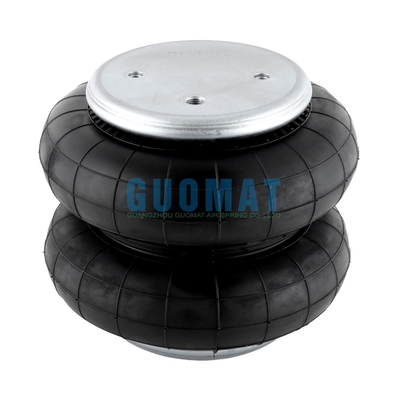

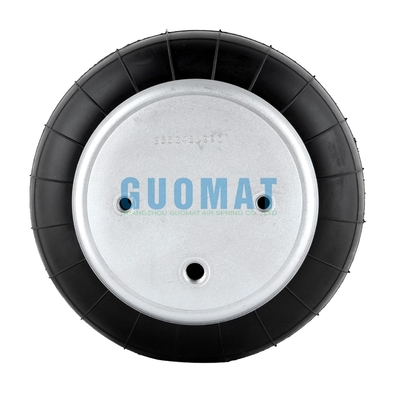

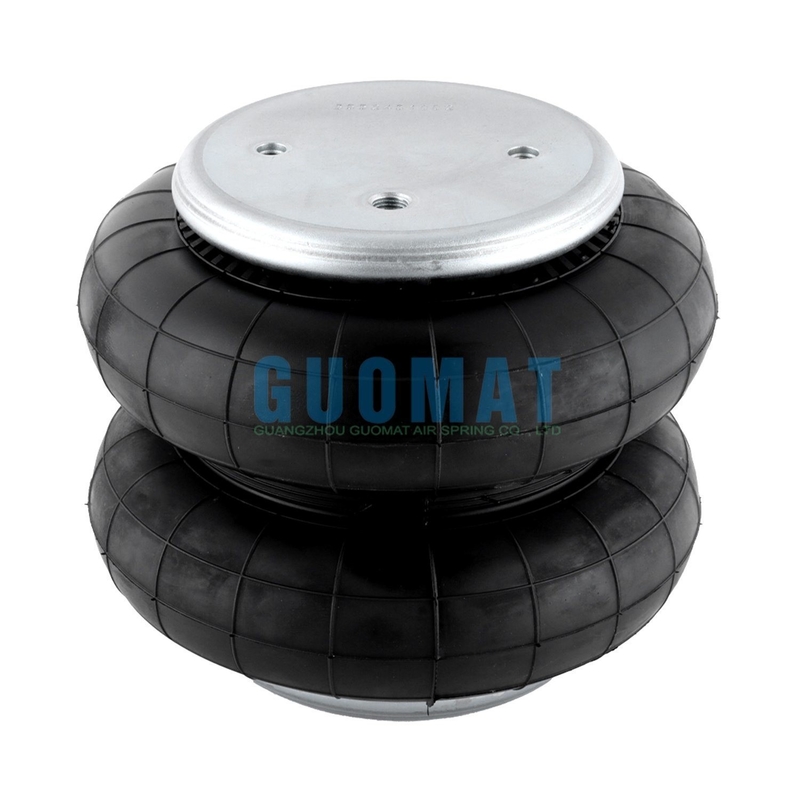

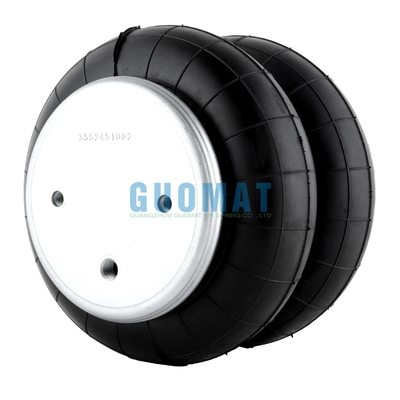

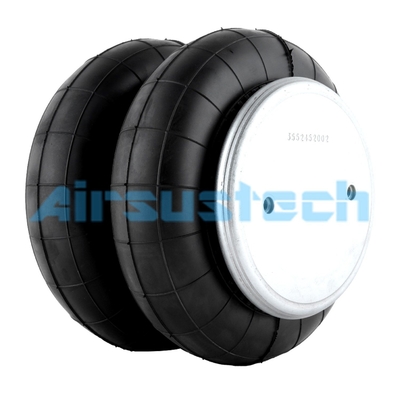

Goodyear Suspension Air Spring 2B9-200 Double Convoluted Air Shocks 2B9-202

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6910

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6910	Spring Material:	Rubber
Structure:	Double Convoluted	Damping Force Direction:	Bidirectional
Function:	Reduce Shock	OEM:	FD 200-19 320
Trademark:	GUOMAT	After-sales Service:	1 Year
Highlight:	Suspension Air Spring 2B9-200 , Suspension Air Spring Double Convoluted , Goodyear Suspension Air Spring

Goodyear Suspension Air Spring 2B9-200 Double Convoluted Air Shocks 2B9-202

Product Description

Suspension air springs are advanced air shock systems meticulously crafted to ensure exceptional durability, reliability, and load-handling capacity across a variety of automotive applications. Fabricated with premium-grade rubber and reinforced steel, these components exhibit outstanding performance in extreme temperature ranges from -40°C to +70°C. Engineered to deliver excellent shock absorption and enhanced stability, suspension air springs significantly improve ride smoothness and safety. Their robust load-bearing capability makes them an optimal choice for vehicles of various dimensions, designs, and categories. Additionally, their straightforward installation process and low maintenance requirements render them a practical and efficient solution for all vehicle types.

Product Details

Bottom Cover Plate
Bottom Plate Alignment	Parallel
Bottom Plate Center To Center Diameter	3.50 in.
Bottom Plate Diameter	6.40 in.
Bottom Plate Hole Quantity	2
Bottom Plate Type	Steel
Top Cover Plate
Top Plate Alignment	Parallel
Top Plate Center To Center Diameter	3.50 in.
Top Plate Diameter	6.40 in.
Top Plate Hole Quantity	2
Top Plate Type	Steel
Rubber Bellow
Bellow Maximum Diameter	##
Expanded Height	10.80 in.
Compressed Height	3.20 in.
Spring Type	Double Convoluted
Nut/Blind Nuts Type	3/8-16UNC
Air Hole/Gas Hole/Air Inlet/Gas Fitting
Air Inlet	1/4 NPT

OEM Numbers

Fire-stone	W01-358-6910
Contitech	FD 200-19 320
Goodyear	2B9-200/2B9-202/2B9-2016
Goodyear	578423202
Triangle	6325/4320
Taurus	KF218-6910
Brake & Wheel	M3501
Dina	A812719/AZ81279
Dayton	3546910
Leland	SC2011
Navistar	554783C1
Hendrickson	S8768/458433
Ridewell	1003586910C
SAF Holland	57006910
Trailers De	133128
Tuthill	1371
Watson&Chalin	AS-0001/AS-0156G

Air Spring Installation

1.Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
2.Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
3.If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.
