Contitech FT330-29 431 Air Spring Rubber Bellows Industrial Lifting Air Bags

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B8008

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3B8008	N.W.:	7.5 Kg
Warranty:	One Year	Brand Name:	GUOMAT Air Spring
Minimum Height:	4.60 Inches	Maximum Height:	18.90 Inches
Quality Assurance:	12 Months	Fitment Type:	Direct Replacement
Highlight:	Contitech FT330-29 431 Air Spring , 3B8008 Industrial Air Spring

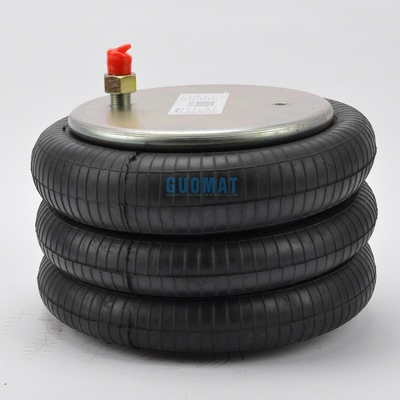

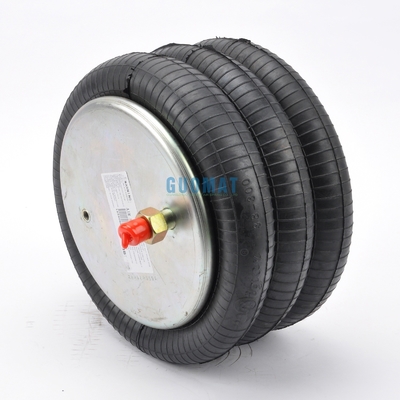

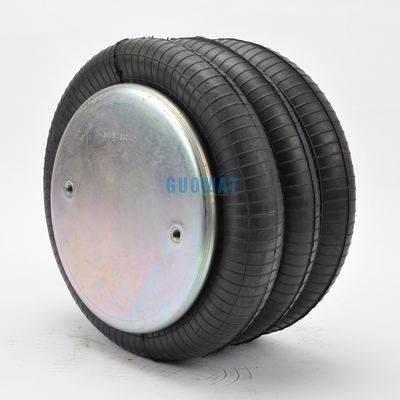

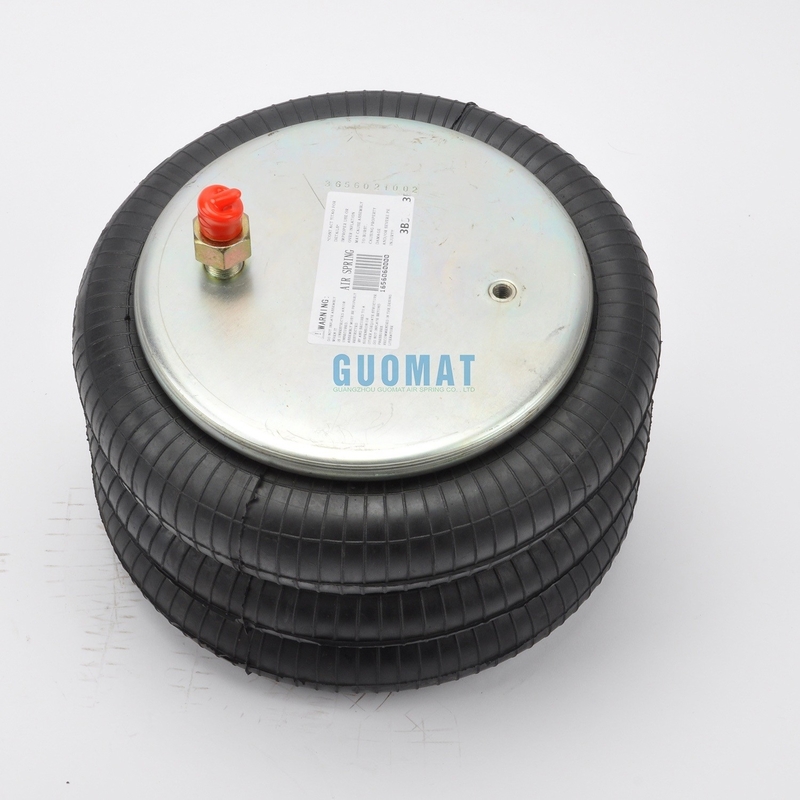

Contitech FT330-29 431 Air Spring Rubber Bellows Industrial Lifting Air bags

3B8008 Technical parameters

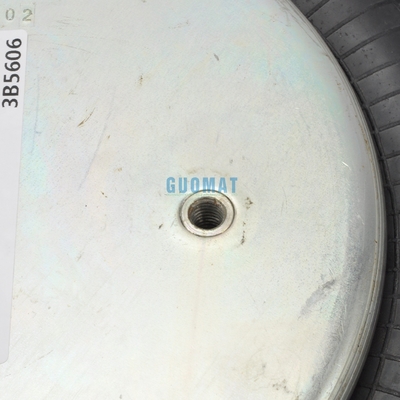

Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-16UNC

Top Cover Plate Screw (Nut) Tooth : 1 pcs X Stud - 3/4-16

Screw Center Distance of Top Cover Plate : 140 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5 mm

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 73 mm

Top Cover Plate Diameter: 228.6 mm

Bottom Cover Plate Diameter: 228.6 mm

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter : 300 mm

The Working Stroke : MIN 120 mm to MAX 457 mm

Maximum Height : 457 mm

Minimum Height :120 mm

Stroke Height : 179mm

Cross References

Firestone: 38

Firestone No.: W01-358-8008

FleetPride: AS8008

Goodyear: 3B12-300

Gooyear Flex No.: 578933100

Taurus: 6334

Triangle: AS-4431

TRP: AS80080

Automann: SP3B22R-8008

Road Choice: AS8008

Granning； 6392

Tuthill: 6392

Loadguard: SC2130

EX Ride: 8030155

Hendrickson: S-11637

Ridewell: 1003588008C

SAF Holland: 57008008

Dayton: 354-8008

The Structure of GUOMAT Air Spring
1. Is a rubber component, which is formed by vulcanization of a cord layer, an inner and outer rubber layer or a steel wire ring to form a flexible body, and realizes an elastic function by filling the compressibility of air. Commonly known as air springs, rubber airbags, airbags, etc.
2. Assembled by the rubber air spring, the base, the base (piston), the overall shape of the mat assembled into a sealed cavity.
3. According to the shape is divided into three categories of capsules, film and sleeves. The sealing structure consists of four types: pressure self-forming, flange clamping, hoop sealing and mixing.
4. The load of the air spring shock absorber is mainly carried by the cord, the curtain layer is mainly composed of 2 layers, and the special requirements of the product are composed of 4 layers of cord. The inner glue mainly serves as a sealing function, and in addition to the sealing effect of the outer rubber, it also plays a protective role.
