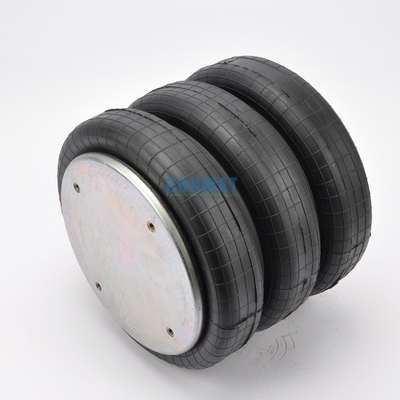

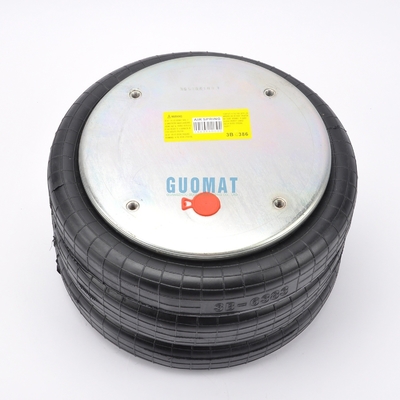

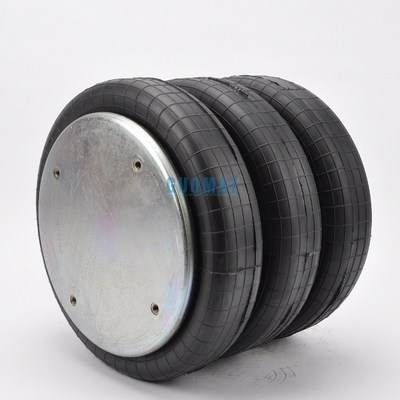

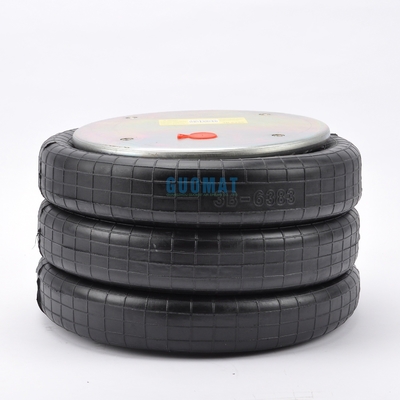

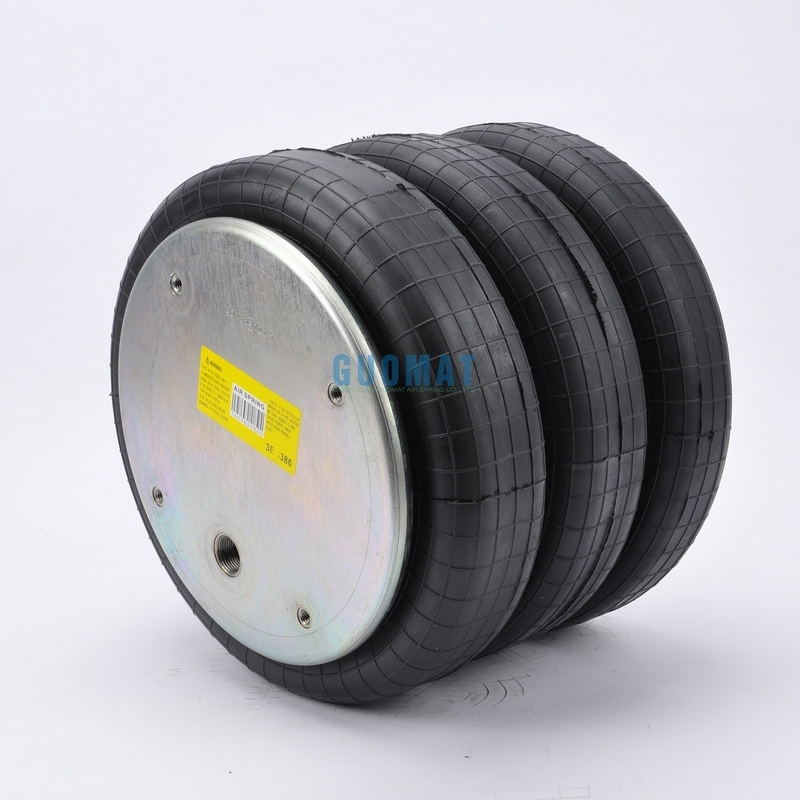

Triple Convoluted Air Bag GUOMAT NO. 3B7386 Bellow No.3B383 Industrial Air Spring 4x3/8-16UNC Screw

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B7386

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD69.9-79.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type:	Suspension Air Spring	N.W.:	8.5 Kg
Bumper:	With	Air Inlet:	3/4NPT
Bottom Plate Hole/Stud:	4X3/8-16unc	Bottom Plate Dia:	289 Mm
Specification:	383822 Cm	Material:	Rubber And Iron
Highlight:	3B383 Industrial Air Spring , Triple Convoluted Industrial Air Spring

Triple Convoluted Air Bag GUOMAT NO. 3B7386 Bellow No.3B383 Industrial Air Spring 4x3/8-16UNC Screw

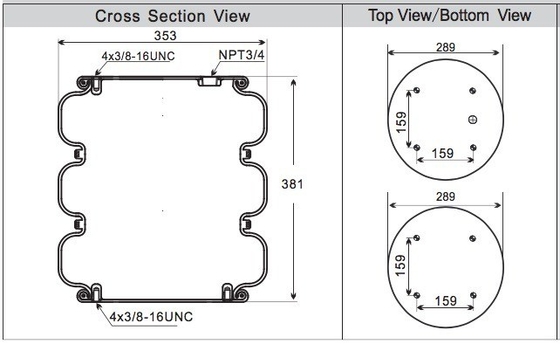

3B7386 Technical Parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4x3/8-16UNC

Screw Center Distance of Top Cover Plate : 159mm

Bottom Cover Plate Screw (Nut) Tooth : 4x3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 159mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4 NPT

Cover Plate

Top Cover Plate Diameter: 289 mm

Bottom Cover Plate Diameter: 289 mm

Rubber Bellows

Rubber Bellows MAX Diameter: 405 mm

Rubber Bellows Natural Diameter :353 mm

The Working Stroke : MAX 460 mm to MIN 110 mm

Maximum Height : 460 mm

Minimum Height :110 mm

Compression Height : 350 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

Pneumatic application - static eigenvalue force F [kN]

pressure p	[bar]	3	4	5	6	7	8	vol V[l]
height H [mm]	380	17.7	23.8	30.0	36.4	42.9	49.1	31.0
	300	21.3	28.4	36.1	43.4	50.7	58.0	25.4
	220	24.3	32.3	40.4	48.5	56.6	64.6	19.4
	140	27.3	36.3	45.4	54.5	63.4	72.0	12.4
