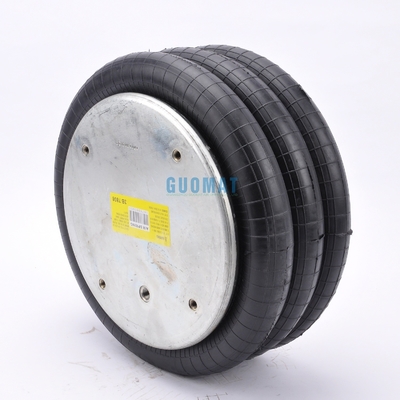

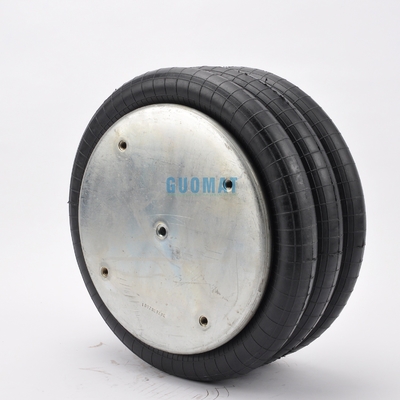

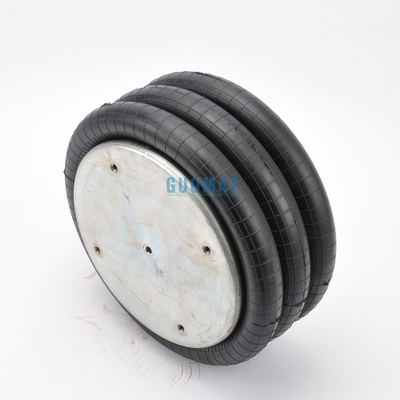

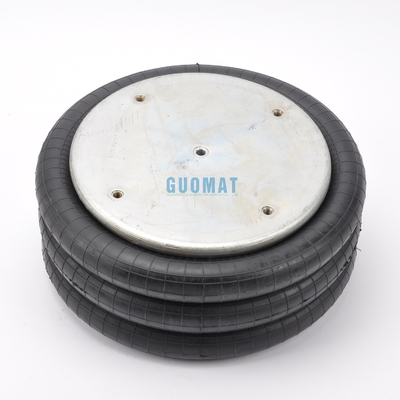

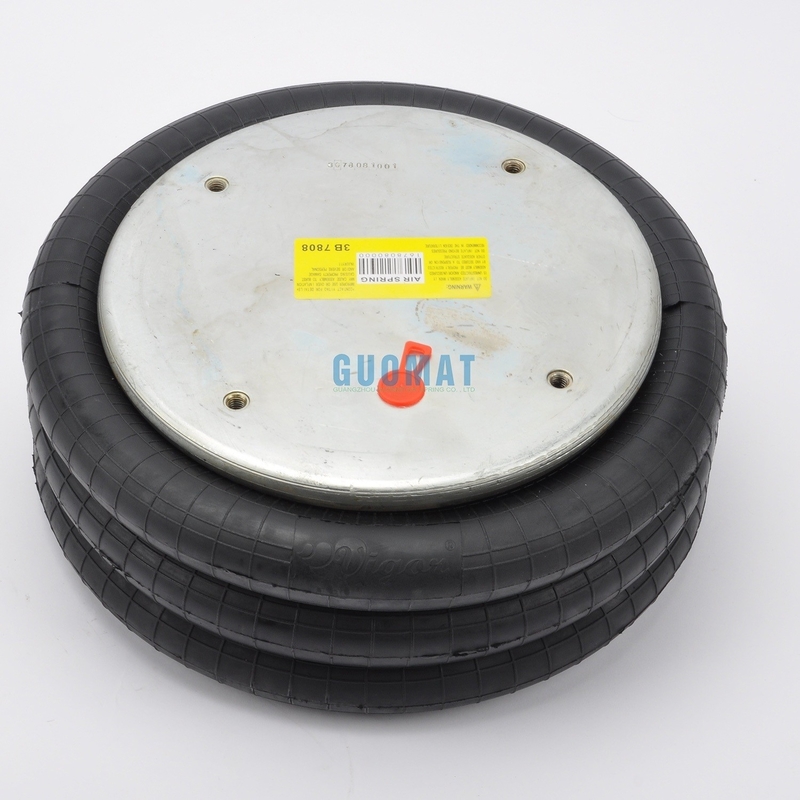

Goodyear Suspension Air Spring Airkraft 3B-356 115061 For Conveyor End Stop

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B7808

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3B7808	Pressure Ability:	0.2-0.8 M PA
Air Inlet:	1/4NPT	Cover Plate Dia:	289 Mm
Warranty:	One Year	OEM NO.:	Goodyear 3B14-354
Ships To:	Worldwide	Sample:	Available
Highlight:	Goodyear Suspension Air Spring , 3B-356 Suspension Air Spring

Goodyear Suspension Air Spring Airkraft 3B-356 115061 For Conveyor End Stop

Product Details

Compressed Height: 4.00
Top Plate Number:3131 or 3134
Top Plate Width:11.31
Piston Number:3130
Piston Width:11.31

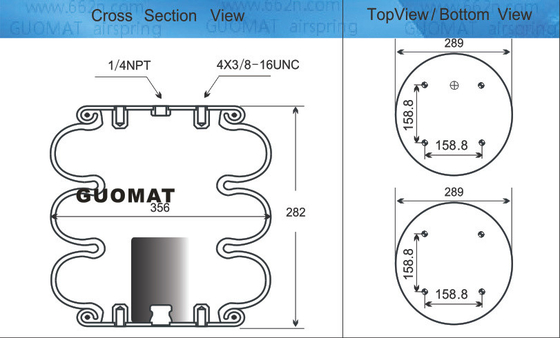

Top Cover Plate Diameter 289 mm
Bottom Cover Plate Diameter 289 mm
Screw Center Distance 158.8 mm
Distance Gas Hole Between Nut 79.4 mm
Gas Hole 1/4NPTF
Screw (Nut) Tooth 2pcsX3/8-16UNC
Rubber Bellows Natural diameter 356 mm
Rubber Bellows Natural height 282 mm

OEM Number

Product Specs for FIRE STONE Air Spring W013587808

Technical Specs: FIRE STONE Air Spring W01-358-7808

FIRE STONE Air Spring Bellows Number:313

Goodyear Part Number:3B14-354 /3B14 354

Goodyear Bellows Number:

578-93-3-350/578 93 3 350/578933350

Triangle Part Number: 4336

Triangle Bellows Number: 6319

Ridewell Number: 1003587808C

EZ Ride Number 8030170

Note:PEERLESS 0550-00030

UPC767555005538

MPNW013587808

Contitech FT 530-32 336

FIRE STONE Air Spring Style 313

FIRE STONE Air Spring No. W01-358-7808

FleetPride AS7808

Goodyear 3B14-354

Goodyear Flex No. 578933350

Taurus 6319

Triangle AS-4336

TRP AS78080

Automann SP3B32R-7808

The Usal Kinds of Double Convoluted Air Springs

Triple Convolution Air Actuator
GUOMAT NO.	Contitech NO.	Min. Design height	Installation Space Required	Max. Stroke
3B33029	FT 330-29	110	345	320
3B43032	FT 430-32	115	355	315
3B53032	FT 530-32	110	410	325
3B53035	FT 530-35	115	430	395
3B96034	FT 960-34	120	510	335
3B133035	FT 1330-35	120	570	350

Air Springs Have Numerous Applications Across Various Industries

Off-highway vehicles: Commonly used in construction equipment, agricultural machinery, and mining equipment, air springs enhance suspension systems to improve ride comfort and stability.
Press equipment and part extraction: Applied as actuators, air springs facilitate smooth and efficient operation.
Test equipment and motion simulators: Serve as effective vibration isolators to reduce shock and noise during dynamic testing processes.
Precision equipment and machinery: Essential for printing presses, air springs ensure vibration isolation and accurate leveling, protecting the integrity of delicate operations.
Textile machinery: Provide a smooth and stable ride, enhancing product quality while reducing wear and tear on machinery.
Paper mill machinery: Integral for suspension, leveling, and vibration isolation to optimize performance during paper production.
Cheese and dairy industry machinery: Support various applications where operational stability and vibration reduction are critical.
