W01-358-8029 Firestone Suspension Air Spring Triple Convoluted Air Actuator

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B8029

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	W01-358-8029	Structure:	Triple Convoluted
Quality:	100% Tested	Max Diameter:	330mm
Trademark:	GUOMAT	Type:	Gas-Filled
Air Hole:	1/4 NPT	OEM Number:	Goodyear 3B12-310
Highlight:	Firestone Suspension Air Spring , W01-358-8029 Suspension Air Spring

W01-358-8029 Firestone Suspension Air Spring Triple Convoluted Air Actuator

Product Details description

Type	Triple Convoluted Air Spring	Item Number	3B8029
Rubber Type	Natural Rubber	Specs	Three Convoluted
Fire-stone	W01-358-8027/38 W01-358-8029	Contitech	FT 330-29 466
Goodyear	3B12-310 578933100	Triangle	6334/4466
Arvin Meritor	200117	Suspensions	200117
Silent Drive	AS8027	Histeer	200117

Air Spring Technical Data

Top Cover Plate Screw (Nut) Tooth	1/2-13UNC
Top Cover Plate Diameter	231 mm
Distance Between Air Inlet And Bolt of Top Cover Plate Diameter	157mm
Bottom Cover Plate Screw(Nut) Tooth	2X3/8-16UNC
Screw Center Distance of Bottom Cover Plate	157 mm
Bottom Cover Plate Diameter	231mm
Air Inlet/Gas Hole	1/4NPT
The Working Stroke	MAX 460 mm to MIN 117 mm
Rubber Bellows MAX Diameter	330mm

Goodyear Convoluted Type Air Springs OEM Number

Single Convoluted Air Spring		Double Convoluted Air Spring		Triple Convoluted Air Spring
1B12-305	1B12-313	2B6-530	2B6-531	3B12-304	3B12-305
1B14-350	1B14-351	2B6-532	2B6-535	3B14-351	3B14-353
1B14-352	1B14-362	2B6-536	2B7-540	3B14-354	3B15-375
1B14-364	1B15-375	2B7-541	2B7-542	3B15-376	3B15-377
1B15-376	1B15-377	2B7-545	2B7-546	3B15-378
1B15-378		2B8-550	2B8-552
		2B8-553	2B8-554
		2B9-200	2B9-201
		2B9-204	2B9-205
		2B9-216	2B9-250
		2B9-251	2B9-253
		2B12-309	2B12-218
		2B12-425	2B12-429
		2B12-437	2B12-416
		2B14-352	2B14-353
		2B14-354	2B14-355
		2B14-362	2B14-363
		2B14-452	2B15-375
		2B15-376	2B15-377
		2B15-378	2B19-8433
		2B22-8539

FAQ

Q: Is it possible to receive a proforma invoice?
A: Yes, we will send you a proforma invoice if you choose for the payment method: ‘Bank Transfer Payment’ at the check out.
You can pay with bank transfer, PayPal or Credit Card after you have received the proforma invoice. We will ship your order out as soon as we have received the payment.

Q: Do you offer any warranty?
A: Yes, we offer ONE YEAR warranty on all of our products (new and used).

Q: How do you make our business long-term and good relationship?
A: 1. Good quality and competitive prices ensure our customers benefit;
2.We respect every customer as our friend, we sincerely do business and make friends with them, no matter where they come from.

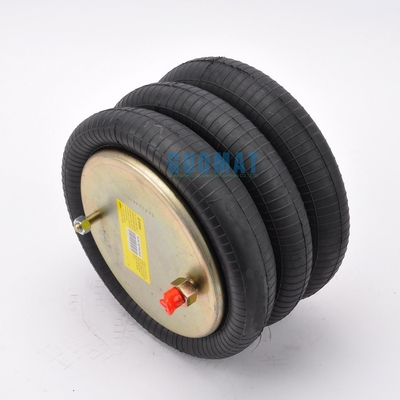

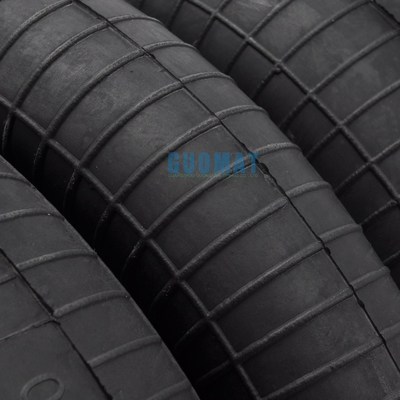

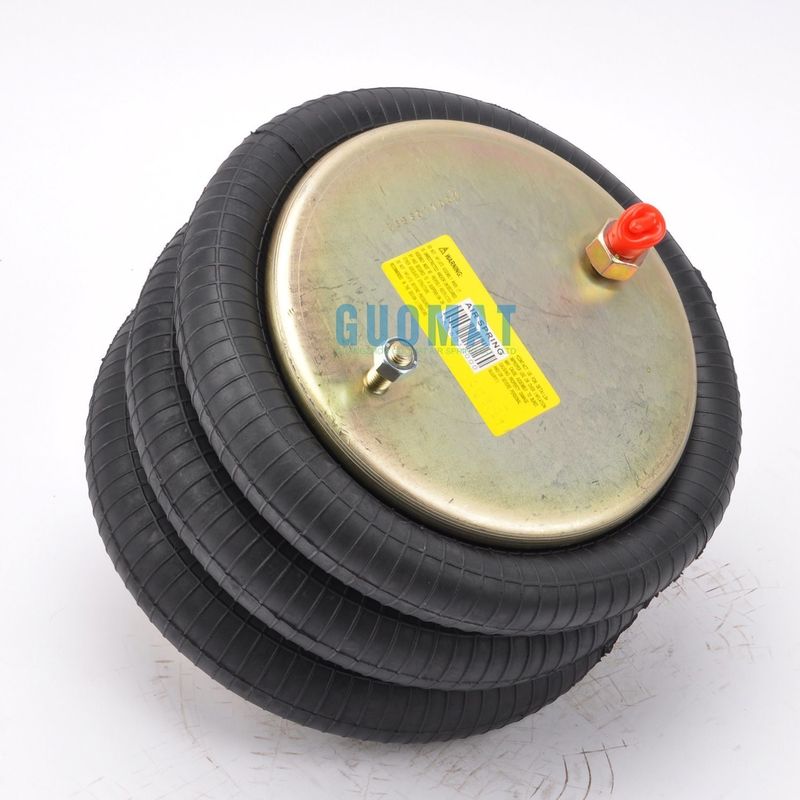

Product Picture
