Industrial Air Bags Bidirectional Damping Force Air Spring Suspension System

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B5601

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days

Contact Now

Detailed Product Description

Model NO.:	3B5601	Gas Hole:	1/4 NPT
Screw Tooth:	M12×1.75	Type:	Gas-Filled
Minimum Height:	117 MM	Maximum Height:	460 MM
Bellow Max. Width:	330 MM	Brand Name:	GUOMAT
Highlight:	Bidirectional Damping Force Industrial Air Bags , Suspension Industrial Air Bags

Industrial Air Bags Bidirectional Damping Force Air Spring Suspension System

Product Information

Air springs are extremely durable, precisely engineered, and cost-effective for a variety of actuation and vibration isolation applications. With their proven design, fabric-reinforced neoprene or natural rubber flex member construction, and corrosion-resistant end retainers, air springs offer superior quality and performance. As isolators, air springs effectively reduce the harmful effects of vibration. They can simultaneously isolate vibration and adjust load height, allowing for consistent vibration isolation at varying loads.

Technical Data

Cover Plate	Top Cover Plate Diameter:231mm
Cover Plate	Bottom Cover Plate Diameter:231mm
Air Inlet	1/4 NPTF
Blind Nut	Screw Center Distance Of Bottom Cover Plate:157.5mm
	Screw And Gas Hole Distance Of Top Cover Plate:157.5mm
	Top Cover Plate Screw (Nut) Tooth:M12X1.75
	Bottom Cover Plate Screw (Nut) Tooth:2XM12X1.75
Rubber Bellow	Rubber Bellow MAX Diameter:330mm
	The Working Stroke:MAX 460mm to MIN 117mm
	Maximum Height:460mm
	Minimum Height:117mm
	Compression Height:343mm

Application

GUOMAT air actuators can be used in nearly all branches of industry, such as:

vehicle applications
automation technology
conveyor systems
agricultural machinery
food industry
paper and textile equipment
pantograph drives
sawmill machinery
punch and forming presses

Who We Are

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

FAQ

Q1: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit;

2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.

Q2:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

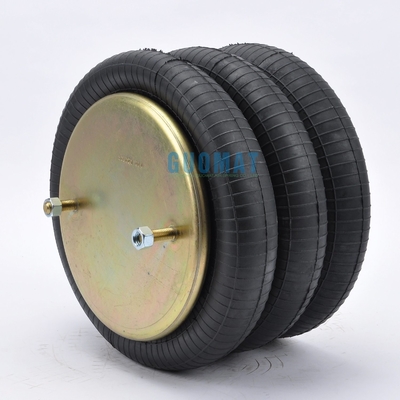

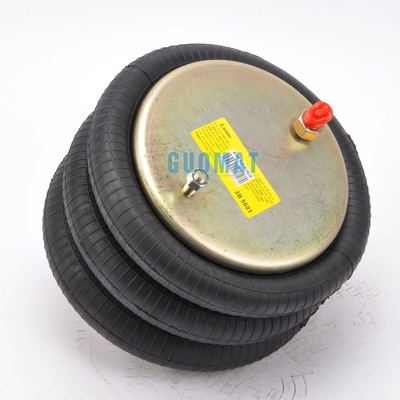

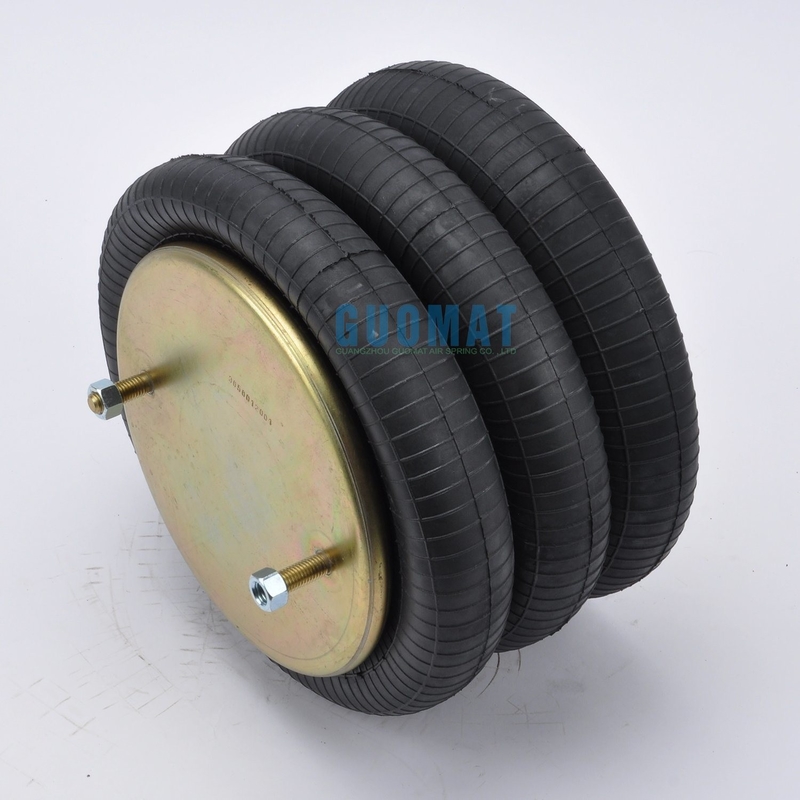

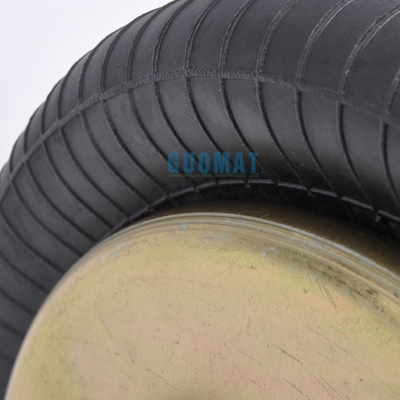

Product Image
