Contitech FD330-22364 Goodyear 2B12-313 Air Suspension Spring For Truck Steel 63640

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B7808

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	W01-358-7808	Condition:	Brand New
Air Hole:	1/2NPT	Trademark:	GUOMAT
Warranty:	1 Year	Structure:	Triple Convoluted
Working Stroke:	282 MM	Rubber Bellow Diameter:	356 MM
Highlight:	2B12-313 Air Suspension Spring , Contitech FD330-22364 Air Suspension Spring

Contitech FD330-22364 Goodyear 2B12-313 Air Suspension For Truck Steel 63640

Product Information

Suspension Air Springs are air shocks designed to provide superior quality, durability and load capacity for a range of automotive applications. Made with high-grade rubber and steel, they are engineered to provide superior performance in temperatures ranging from -40℃ to +70℃. With their superior load capacity and durability, these air shocks are ideal for vehicles of all sizes, shapes and types. They are designed to provide superior shock absorption and stability, resulting in a smoother and safer ride. In addition, they are easy to install and require minimal maintenance, making them a great choice for any vehicle.

About Product Technical Data

Top Cover Plate Diameter	289mm
Bottom Cover Diameter	289mm
Screw Center Distance of Top Cover Plate	158.8mm
Screw Center Distance of Bottom Cover Plate	158.8mm
Top Cover Plate Screw(Nut) Tooth	4X3/8-16UNC
Bottom Cover Plate Screw(Nut) Tooth	4X3/8-16UNC
Gas Hole/Air inlet	1/4NPT
Rubber Bellow Diameter	356mm
The working Stroke	282mm

Refer Number

Airspring Supplier:Fire-stone

Competitor/Supplier Number:W01-358-7808/313

Airspring Supplier:Contitech

Competitor/Supplier Number:FD 330-22 364

Airspring Supplier:Goodyear

Reference:578933350

Competitor/Supplier Number:2B12-313/459

Airspring Supplier:Triangle

Reference:6319

Competitor/Supplier Number:4336

Airspring Supplier:Airkraft

Reference:115061

Competitor/Supplier Number:3B-356

Airspring Supplier:Brake & Wheel

Competitor/Supplier Number:M3533

Airspring Supplier:EI Ride

Competitor/Supplier Number:8030170

Airspring Supplier:Dayton

Competitor/Supplier Number:3547808

Airspring Supplier:Leland

Competitor/Supplier Number:Sc2031

Airspring Supplier:Navistar

Competitor/Supplier Number:554801C1

Airspring Supplier:Hendrickson

Competitor/Supplier Number:S13157

Airspring Supplier:Ridewell

Competitor/Supplier Number:1003587808C

Airspring Supplier:SAF Holland

Competitor/Supplier Number:57007808

Airspring Supplier:Truck stell

Competitor/Supplier Number:63640

Airspring Supplier:Peerless

Competitor/Supplier Number:55000030

GUOMAT Air Spring Features

1. Low installation height
In comparison to conventional pneumatic cylinders, GUOMAT air actuators contain no piston rod, making it possible to reduce
the design height considerably.This allows compact constructions to be made.

2. Angular movement
Depending on the type, GUOMAT air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.

3. Low purchase price
The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.

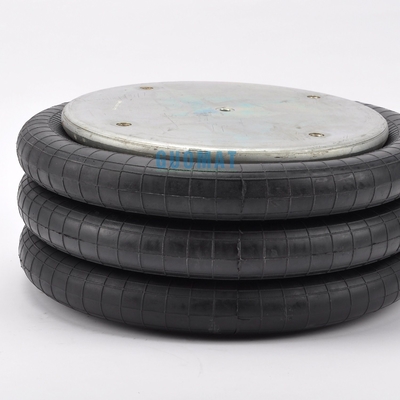

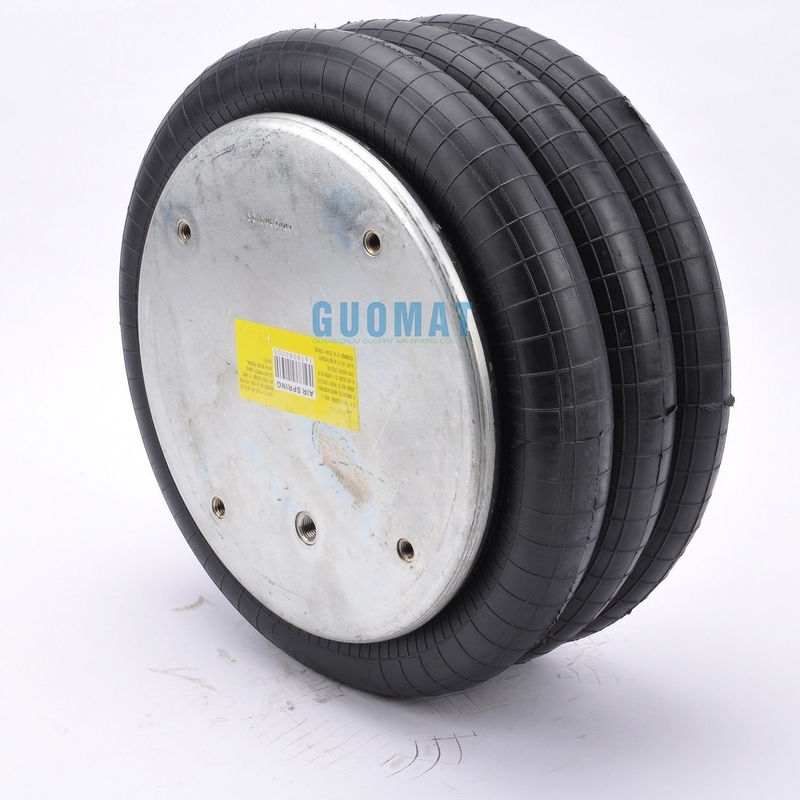

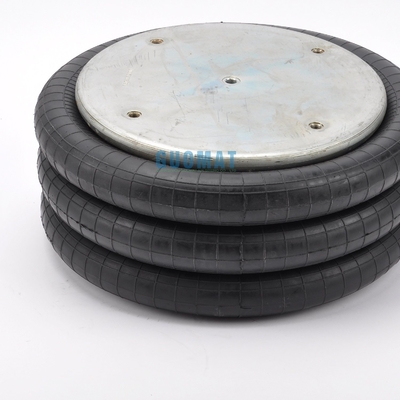

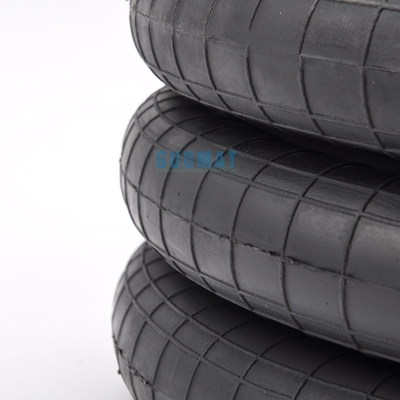

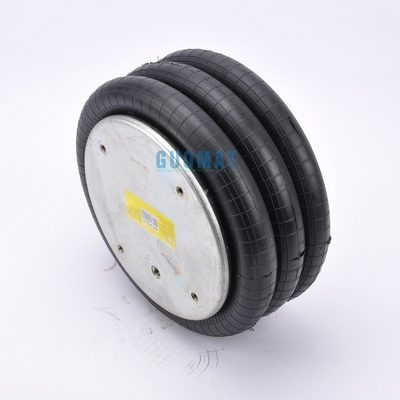

Product Picture
