High Performance Suspension Air Spring 10X3 Flange Connection Air Shocks

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	3B10X3T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3B10X3T	Damping Force Direction:	Bidirectional
Condition:	Brand-New	Trademark:	GUOMAT
Structure:	Triple Convoluted	Compressed Height:	118 MM
Temperature:	-40℃+70℃	Full Stroke:	282 MM
Highlight:	High Performance Suspension Air Spring , 3B10X3T Suspension Air Spring

High Performance Suspension Air Spring 10X3 Flange Connection Air Shocks

Product Information

GUOMAT Industrial Air Springs are designed to ensure optimal performance and maximum comfort for your vehicle. Boasting a generous stroke length of 282 mm, these air springs provide exceptional travel, accommodating a variety of needs in air suspension systems.

The maximum height of 91mm ensures that the bellows air bags deliver the necessary support and stability during operation. These features make GOODYEAR Industrial Air Springs a reliable and durable choice, seamlessly enhancing your vehicle's overall performance and smoothness.

Product Specifications

Effective Diameter	Φ200	Connection Method	CY Series
Compressed height		118mm
Maximum Height		400mm
Full Stroke		282mm
Working medium		Water,Air
Working pressure		≤0.7Mpa
Burst pressure		≥1.6Mpa
Endurance cycle		≥10⁶
Temperature		-35ºC~+60ºC
Weight of the parts:-------------------------------------------------------------------------7.25KG
Showed is supply status. The dismountable end cap will be sealed after connected flange

We Also Sell Other Double Convoluted Falnge Air Suspension

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×3		2 3/4''×3	SP2910	FT 22-6 DI		9109010
4 1/2''×3	W01R584035	4 1/2''×3	SP2895	FT 44-15 DI	PM/31043	9109402
4 1/2''×3-E
3B6×3T(AI)		6''×3(Al)	SP2923	FT 76-20 DS	PM/31063	9109007A
3B6×3T(Steel)	W01R584095	6''×3(Steel)	SP2861	FT 138-26 DS	M/31063	9109007
3B8×3T	W01R584056	8''×3	SP2863	FT 138-26 DS	M/31083	9109017
3B10×3T	W01R584059	10''×3	SP1539	FT 210-32 DS	M/31103	9109031
3B12×3T	W01R584062	12''×3	SP1542	FT 412-32 DS	M/31123	9109051
3B14 1/2''×3T	W01R584065	14 1/2''×3	SP1558	FT 614-36 DS	M/31143	9109069
3B16×3T	W01R584068	16''×3	SP2141	FT 816-40 DS	M/31163	9109177

Air Spring Storage Precautions

1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
3. Air springs are best stored in a free state without any external force
4. Do not store in an environment with a temperature exceeding 50 degrees Celsius

The Following Is The Detailed Drawing Data of 3B10X3T

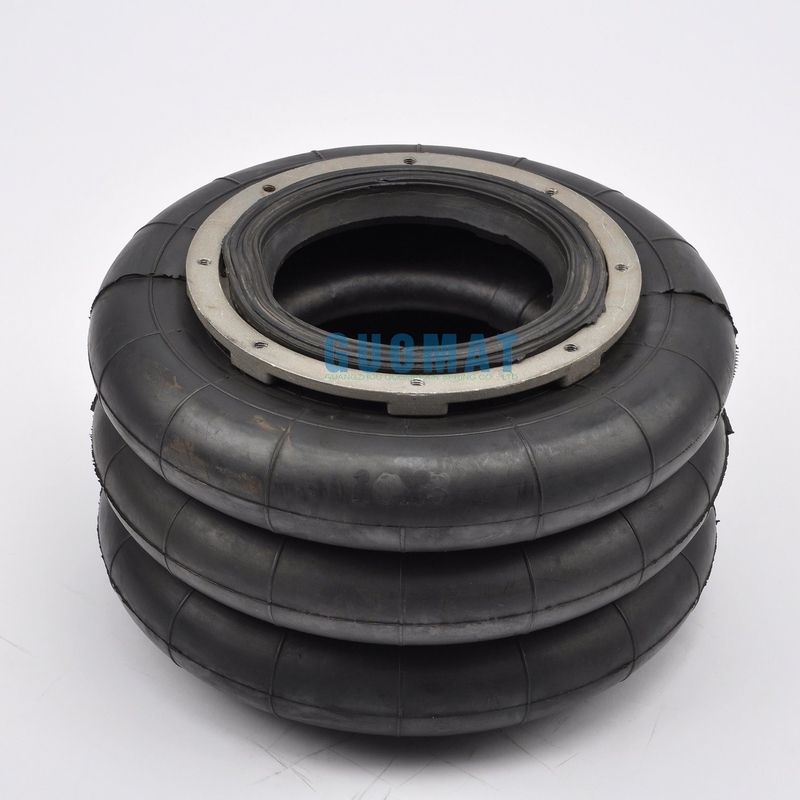

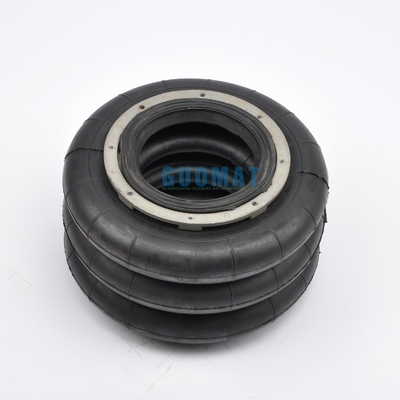

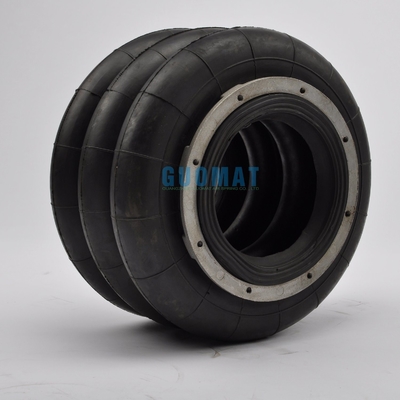

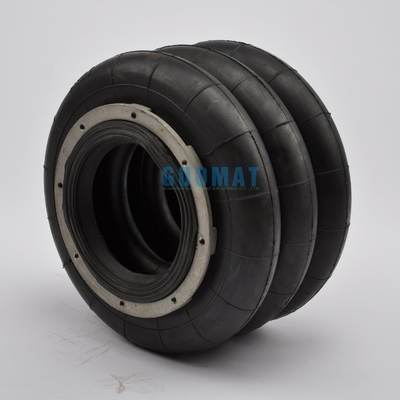

Product Picture
