Guomat Air Spring F-240-3 Yokohama S-240-3R Triple Convoluted Air Shocks

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-240-3

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	F-240-3	Bellows Type:	Triple Convoluted
Design Height:	152mm	Max Height:	232mm
Min Height:	85mm	Warranty:	1 Year
Material:	Natural Rubber	Working Temperature:	-40℃+70℃
Highlight:	Yokohama S-240-3R Guomat Air Spring , Triple Convoluted Guomat Air Spring

Guomat Air Spring F-240-3 Yokohama S-240-3R Triple Convoluted Air Shocks

F-204-3 Punch Air Spring Technical Data

Height H (mm)

Design Height (mm):152mm

Max Height(mm):232mm

Min Height(mm):85mm

Commom Maximum Travel

Commom Maximum Travel(mm):±60

Copression Max Outside Diameter

Copression Max Outside Diameter(mm):300

Standard Height,Approximate Value When The Internal Pressure is 1.49Mpa

Effective Area(cm²):450cm²

Volume(L):7.3L

Load(KN):22.2KN

Dynamic Spring Constant(n/mm):324n/mm

Natural Vibration Frequency(Hz):1.9Hz

Maximum Internal Pressure

Maximum Internal Pressure(Mpa):0.88Mpa

Internal Pressure Failure

Internal Pressure Failure(Mpa):2.9-3.9Mpa

Specifications and Detailed Technical Parameters: F-240-3

Model Size	Height H(mm)			Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Standard height, approximate value at 0.49MPA internal pressure					Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
Model Size	Design Height	Max. Height	Min Height	Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Effective Area(cm2)	Volume(L)	Load(KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)	Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
S-240-4R	206	316	111	±80	300	450	10.1	22.2	235	1.6	0.88	2.9-3.9
S-240-3R	152	232	82	±60	300	450	7.3	22.2	324	1.9	0.88	2.9-3.9
S-240-2R	98	148	53	±40	300	450	4.4	22.2	520	2.4	0.88	2.9-3.9
S-240-1R	72	110	40	±30	340	450	3.5	22.2	765	2.9	0.69	2.9-3.9

Air Spring Applications

1.Various applications in the automotive industry such as
(1)As steering damping, engine damping, belt
(2) Used for tension damping on the driver's seat of engines and commercial vehicles, etc.
2.On household products such as washing machines
3.Special shock absorbers for bicycles
4.On commercial lawn movers
5.In the medical device industry, e.g. wheelchairs

FAQ

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.

Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

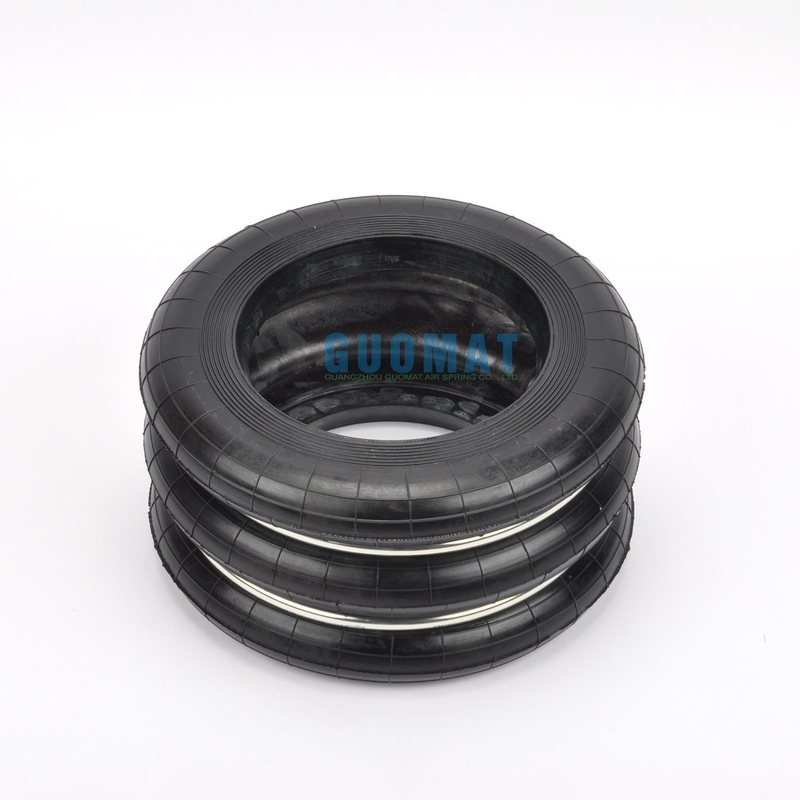

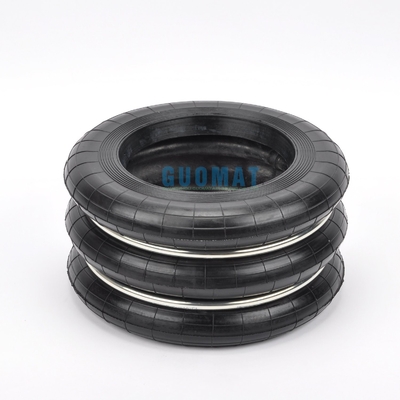

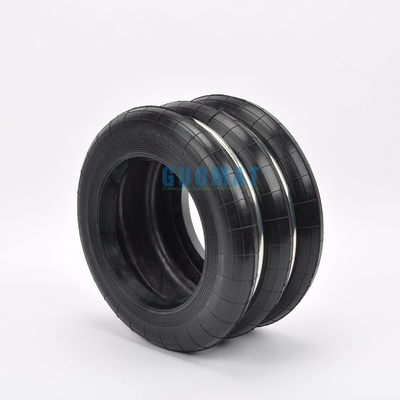

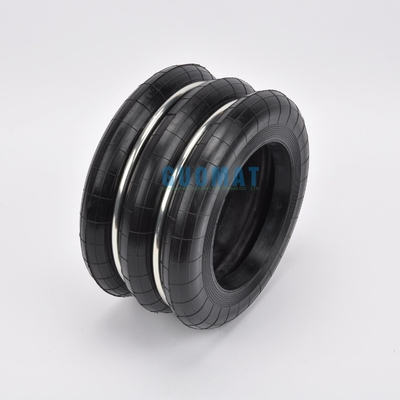

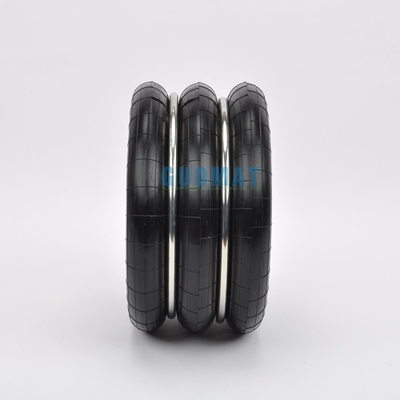

Product Pictures
