Yokohama Convoluted Air Spring S-300-3r High-Speed Punch Press Balance Die Pad

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-300-3

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	F-300-3	Condition:	Brand-New
Manufacturer:	GUOMAT	Warranty:	1 Year
Type:	Gas-Filled	Structure:	Triple Convoluted
Design Height:	152 MM	Maximum Height:	242 MM
Highlight:	Yokohama Convoluted Air Spring , Convoluted Air Spring S-300-3r

Yokohama Convoluted Air Spring S-300-3r High-Speed Punch Press Balance Die Pad

Product Description

Our high-performance actuator is meticulously engineered to deliver exceptional performance and unmatched versatility, meeting diverse application needs. At the center of its durable construction is an advanced crimped assembly, specifically designed to provide superior strength and long-lasting reliability. Enhancing its structure is a convoluted bellow, crafted with precision from high-grade Natural Rubber. Natural Rubber is celebrated for its extraordinary dynamic characteristics and versatile properties, ensuring the actuator operates efficiently and dependably under a wide range of challenging conditions. The synergy of these materials and innovative engineering ensures that our actuator is not only robust and adaptable but also excels in scenarios requiring superior functionality and resilience.

Product Information

F-300-3 Data Comparison With Other Model

GUOMAT NO.	Refer NO.
F-300-4	S-300-4
F-300-3	S-300-3
F-300-2	S-300-2
F-300-1	S-300-1

GUOMAT NO.	Reference NO.	Height H(mm)			Common Maximum Travel (mm)	Compression Max Outside Diameter (mm)	Effective Area(cm²)	Volume(L)
GUOMAT NO.	Reference NO.	Design Height (mm)	Max Height (mm)	Min Height(mm)	Common Maximum Travel (mm)	Compression Max Outside Diameter (mm)	Effective Area(cm²)	Volume(L)
F-300-4	S-300-4	206	326	111	±80	360	710	15.5
F-300-3	S-300-3	152	242	82	±60	360	710	11.2
F-300-2	S-300-2	98	158	53	±40	360	710	7.4
F-300-1	S-300-1	72	117	40	±30	400	710	5.6

GUOMAT NO.	Reference NO.	Load (KN)	Dynamic Spring Constant (n/mm)	Natural Vibration Frequency (Hz)	Maximum Internal Pressure (MPa)	Internal Pressure Failure(MPa)
F-300-4	S-300-4	34.7	324	1.5	0.88	3.9-4.9
F-300-3	S-300-3	34.7	490	1.9	0.88	3.9-4.9
F-300-2	S-300-2	34.7	745	2.3	0.88	3.9-4.9
F-300-1	S-300-1	34.7	1108	2.8	0.88	2.9-3.9

Product Applications

Compressors
Conveyor loading points
Textile looms
Rotary shaft actuators
Conveyor or transfer systems
Vertical lift force for platforms and rotating tables
Injection or ejection of parts in manufacturing equipment
Scissor lifts
Clutch and brake systems
Amusement park rides

FAQ

Q: Is it possible to receive a proforma invoice?
A: Yes, we will send you a proforma invoice if you choose for the payment method: ‘Bank Transfer Payment’ at the check out.
You can pay with bank transfer, PayPal or Credit Card after you have received the proforma invoice. We will ship your order out as soon as we have received the payment.

Q: Do you offer any warranty?
A: Yes, we offer ONE YEAR warranty on all of our products (new and used).

Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

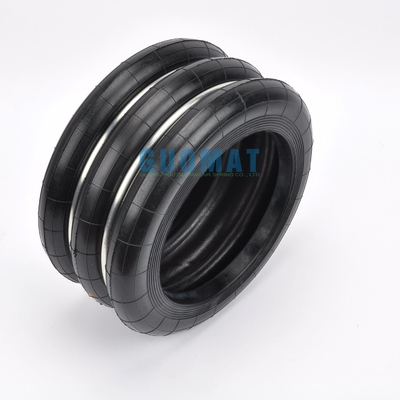

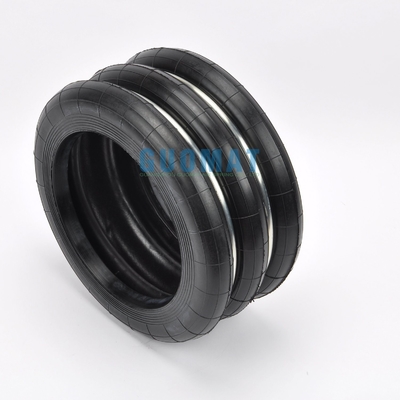

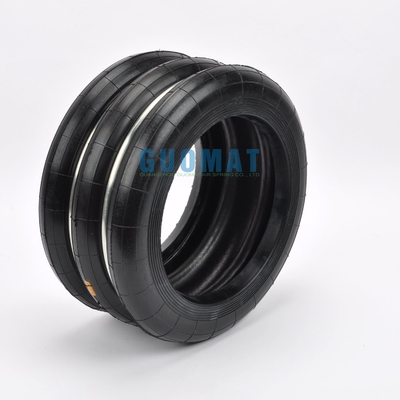

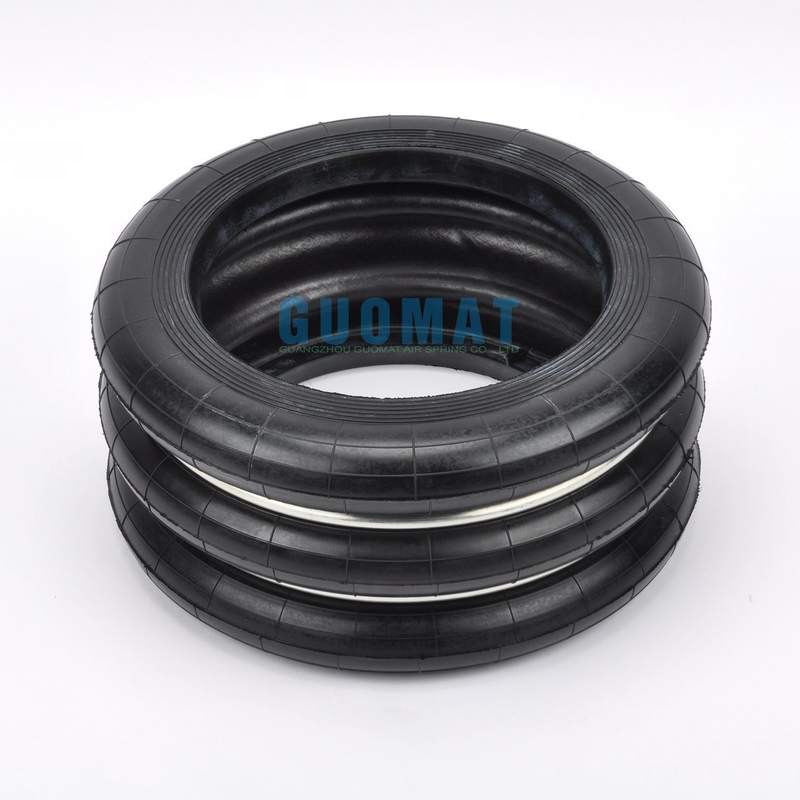

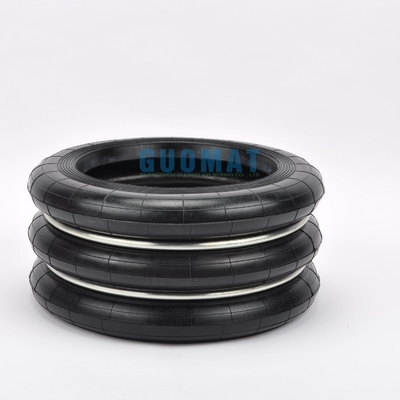

Product Picture
