AIRSUSTECH Triple Convoluted Air Spring Replace For Firestone W01-358-8008

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B8008

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD69.9-79.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3B8008	Spring Material:	Rubber
Structure:	Triple Cylinder	Car Make:	Guomat Or Neutral
Quality:	100 % Tested	Fuction:	Reduce Shock
Key:	Firestone W01-358-8008	SAF Holland:	57008008
Highlight:	Triple Convoluted Air Spring , W01-358-8008 Triple Convoluted Air Spring

AIRSUSTECH Triple Convoluted Air Spring Replace For Firestone W01-358-8008

OEM NO.

Contitech	FT 330-29 431
Contitech	FT 330 29 431
Contitech	FT330-29 431
Contitech	FT330 29 431
Contitech	FT33029431
Firestone	W01-358-8008
Firestone	W01 358 8008
Firestone	W013588008
Goodyear	3B12-300
Goodyear	3B12 300
Goodyear	3B12300
Triangle	6334
Triangle	4431
Watson&chalin	AS-0019
Watson&chalin	AS 0019
Watson&chalin	AS0019
Daylon	3548008
Leland	Sc2130
Ridewell	1003588008C
Silent Drive	AS-0019
Silent Drive	AS0019
Silent Drive	AS 0019
Hendrickson	S11637
Hendrickson	NS50 1690
EZ RIDE	8030155
SAF Holland	57008008
Tuthill	6392
Histeer/Langes

Specifications and Detailed Technical Parameters: 3B8008

Nut/blind nut

Top plate screw (nut) teeth: 3/8-16UNC, 3/4-16UNC
Bottom cover plate screw (nut) teeth: 2×3/8-16UNC
The screw center distance of the Top cover plate: 140 mm
The screw center distance of the bottom cover plate: 157.5 mm

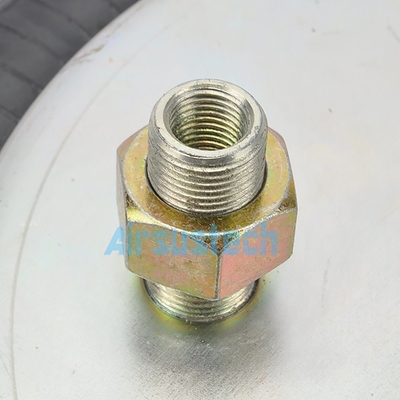

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF

Rubber Bellows

Top plate diameter (width): 231 mm
Diameter (width) of the bottom cover plate: 231 mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: Two pieces of belt loop

Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 5.9kg

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	380	8.8	11.9	15.1	18.4	21.7	25.1	23.6
	340	10.7	14.4	18.2	22.0	25.9	29.8	21.6
	300	12.3	16.5	20.8	25.1	29.5	33.7	19.2
	260	13.7	18.2	22.9	27.6	32.3	36.9	16.6
	220	14.8	19.5	24.6	29.6	34.6	39.5	13.8
	180	15.9	21.1	26.5	31.8	37.2	42.4	10.7
	140	17.0	22.4	28.1	33.6	39.1	44.7	7.5

Application

Because of the air spring can carry on the reasonable adjustment of scheduling and vibration amplitude value and reasonable control of shock load, air spring is getting more and more widely used in transport, paper machine, elevator, medium of punching machine, vibration, vibration sieve, air hammer, vibration test machine, forging machinery which need scheduling of manipulation or shock protection facilities or equipment.

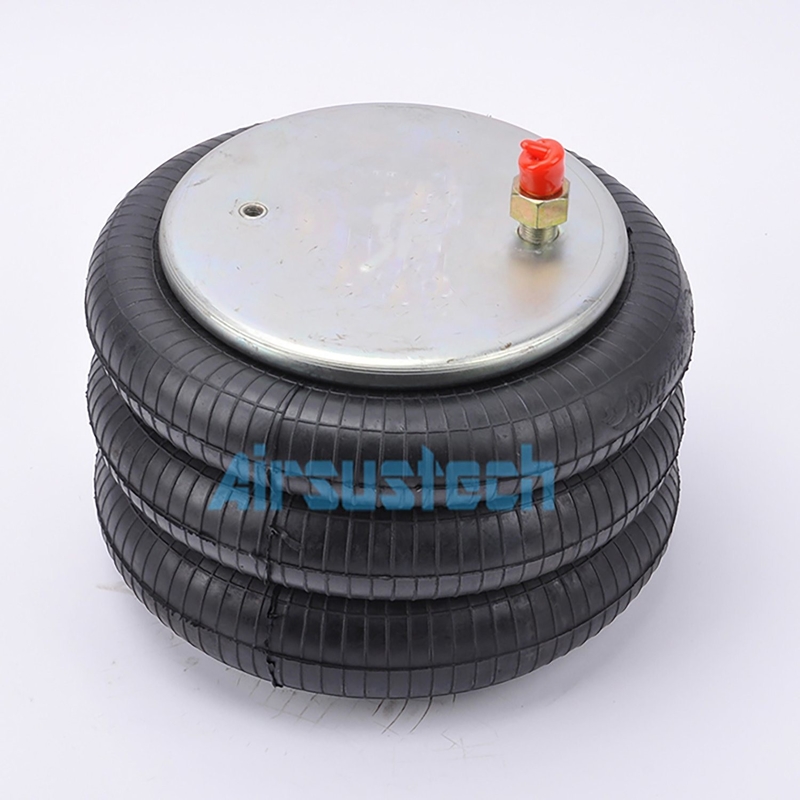

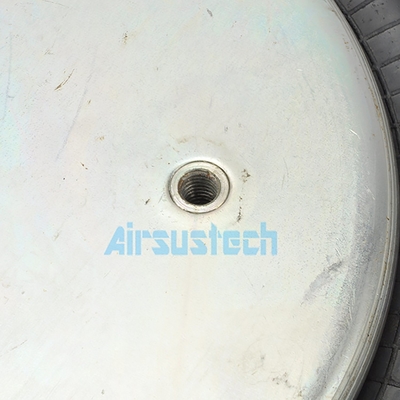

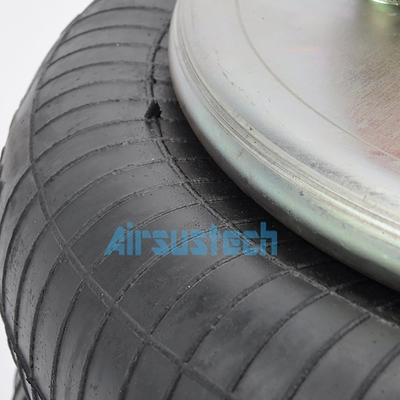

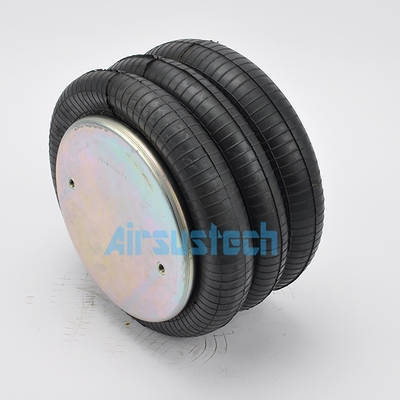

The related picture of 3B8008
