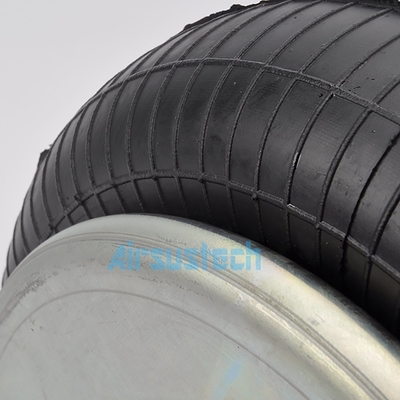

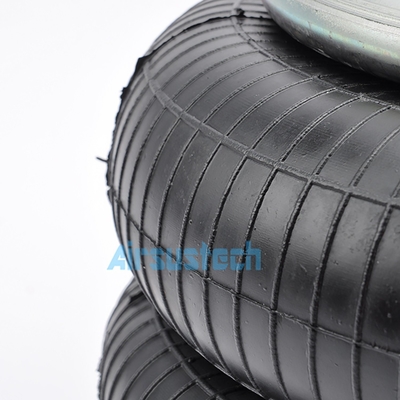

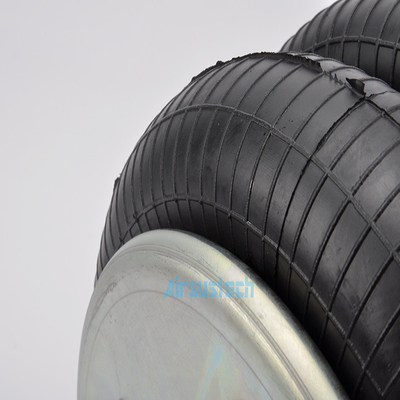

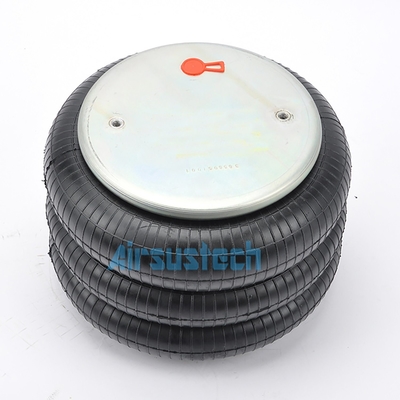

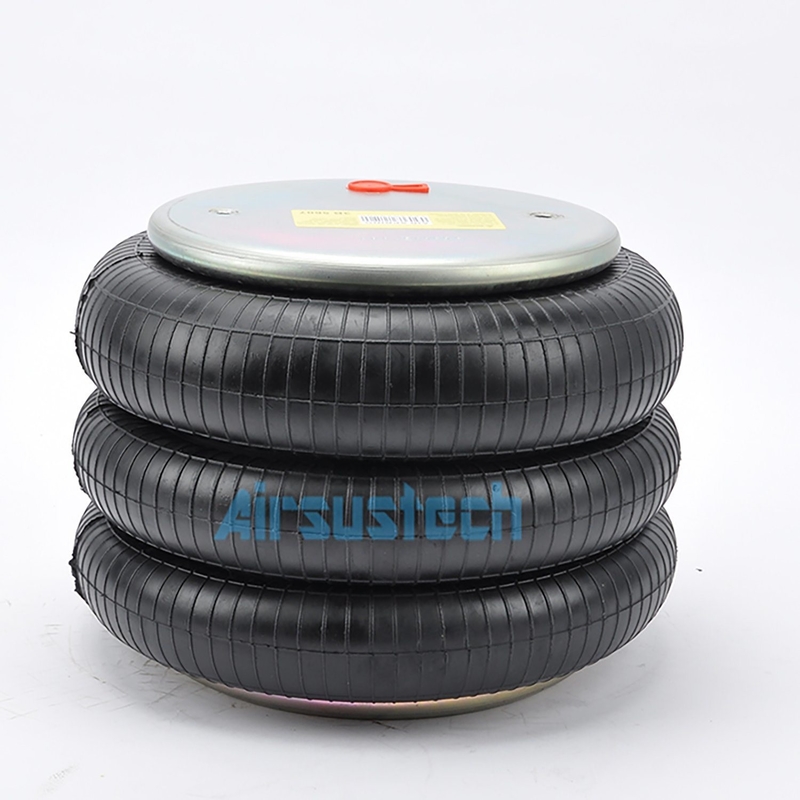

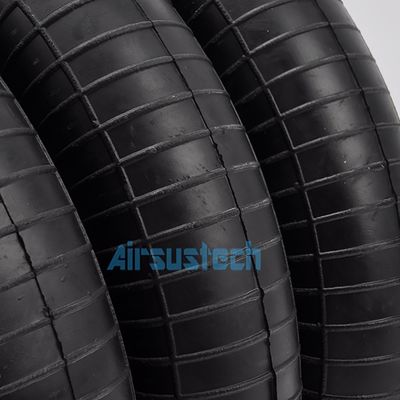

Air Springs Firestone W01-358-8010 Convoluted Bags With 1/4NPT Gas Filled

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B8010

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Key:	Firestone W01-358-8010	Fuction:	Reduce Shock
Origin:	Guangzhou, China	HS Code:	8708809000
Part:	Air Spring	Type:	Gas-Filled
Contitech:	FT 330-29 432	Goodyear:	3B12-301
Highlight:	W01-358-8010 Air Springs , Air Springs With 1/4NPT Gas Filled

Air Springs Firestone W01-358-8010 Convoluted Bags With 1/4NPT Gas Filled

GUOMAT 3B8010 Air Spring Refer NO.

Refer to Firestone Number	W01-358-8010 / WO1-358-8010
Refer to Firestone Number	W01 358 8010 / WO1 358 8010
Refer to Firestone Number	W013588010 / WO13588010
Refer to Contitech Number	FT 330-29 432
Refer to Contitech Number	FT330-29 432
Refer to Contitech Number	FT330-29432
Refer to Goodyear Number	3B12-301
Refer to Goodyear Number	3B 12-301
Refer to Goodyear Number	3B12 301
Refer to Goodyear Bellows	578933100
Refer to Goodyear Bellows	578 93 3 100
Refer to Goodyear Bellows	578-93-3-100
Triangle Number	6334 / 4432
Ridewell	1003588010C
Leland	Sc2119
Oshkosh	8013
Tafco

Specifications and Detailed Technical Parameters: 3B8010

Nut/blind nut

Top plate screw (nut) teeth: 2×3/8-16UNC

Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

The screw center distance of the Top cover plate: 157.5 mm

The screw center distance of the bottom cover plate: 157.5 mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF

Rubber Bellows

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Rubber Bellows MAX Diameter: 295mm

The Working Stroke: 297mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: Two belt loop

Min. pressure: 0 bar

Return force to min.height: ≤400N

Overall weight with clamped plates: 5.9kg

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	380	8.8	11.9	15.1	18.4	21.7	25.1	23.6
	340	10.7	14.4	18.2	22.0	25.9	29.8	21.6
	300	12.3	16.5	20.8	25.1	29.5	33.7	19.2
	260	13.7	18.2	22.9	27.6	32.3	36.9	16.6
	220	14.8	19.5	24.6	29.6	34.6	39.5	13.8
	180	15.9	21.1	26.5	31.8	37.2	42.4	10.7
	140	17.0	22.4	28.1	33.6	39.1	44.7	7.5
