100% Tested Guomat Air Spring F-500-4 Replaces Yokohama S-500-4r Rubber Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-500-4

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	F-500-4	Brand:	GUOMAT
Fuction:	Reduce Shock	Key Word:	Yokohama S-500-4R
Trademark:	GUOMAT	Warranty:	12 Months
Static Height:	218 MM	Sample:	Available
Highlight:	Air Spring F-500-4 , Rubber Bellow Air Spring

100% Tested Guomat Air Spring F-500-4 Replaces Yokohama S-500-4r Rubber Bellow

Air Spring Introduction

Our expertly crafted actuator is designed to deliver outstanding performance and adaptability across numerous applications. The core of its resilient structure lies in a carefully engineered crimped assembly, providing superior strength and long-lasting durability. This feature ensures the actuator can handle rigorous operating demands with ease. Adding to its advanced design is a convoluted bellow, precisely manufactured using high-quality Natural Rubber. Known for its exceptional dynamic characteristics and versatile properties, this material enables the actuator to function seamlessly under diverse operational conditions. Combined, these attributes make our actuator not only robust and powerful but also highly adaptable, offering reliable solutions for a wide range of usage scenarios.

F-500-4 Specifications

Model Size	Height H(mm)			Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Standard height, approximate value at 0.49MPA internal pressure					Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
Model Size	Design Height	Max. Height	Min Height	Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Effective Area(cm2)	Volume(L)	Load(KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)	Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
S-500-5R	276	456	156	±113	560	1965	54.0	96.3	706	1.4	0.69	3.9-4.9
S-500-4R	218	363	123	±90	560	1965	41.9	96.3	912	1.5	0.69	3.9-4.9
S-500-3R	160	270	90	±68	560	1965	30.3	96.3	1255	1.8	0.69	3.9-4.9
S-500-2R	102	172	57	±45	560	1965	18.5	96.3	2020	2.3	0.69	3.9-4.9

OEM Number

AIRSUSTECH Part No.: F-500-4

YOKOHAMA S-500-4R

YOKOHAMA S 500 4R

YOKOHAMA S-500-4

Other Type Air Springs

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S 600 1R	F-240-4	S-240-4R	S 240 4R
F-600-2	S-600-2R	S 600 2R	F-240-3	S-240-3R	S 240 3R
F-600-3	S-600-3R	S 600 3R	F-240-2	S-240-2R	S 240 2R
F-600-4	S-600-4R	S 600 4R	F-240-1	S-240-1R	S 240 1R
F-600-5	S-600-5R	S 600 5R	F-220-4	S-220-4R	S 220 4R
F-550-2	S-550-2R	S 550 2R	F-220-3	S-220-3R	S 220 3R
F-550-3	S-550-3R	S 550 3R	F-220-2	S-220-2R	S 220 2R
F-500-2	S-500-2R	S 500 2R	F-200-2	S-200-2R	S 200 2R
F-500-3	S-500-3R	S 500 3R	F-200-3	S-200-3R	S 200 3R
F-500-4	S-500-4R	S 500 4R	F-200-4	S-200-4R	S 200 4R
F-500-5	S-500-5R	S 500 5R	F-160-1	S-160-1R	S 160 1R
F-450-1	S-450-1R	S 450 1R	F-160-2	S-160-2R	S 160 2R
F-450-2	S-450-2R	S 450 2R	F-160-3	S-160-3R	S 160 3R
F-450-3	S-450-3R	S 450 3R	F-160-4	S-160-4R	S 160 4R
F-450-4	S-450-4R	S 450 4R	F-120-4	S-120-4R	S 120 4R
F-450-5	S-450-5R	S 450 5R	F-120-3	S-120-3R	S 120 3R
F-400-2	S-400-2R	S 400 2R	F-120-2	S-120-2R	S 120 2R
F-400-3	S-400-3R	S 400 3R	F-100-4	S-100-4R	S 100 4R
F-400-4	S-400-4R	S 400 4R	F-90-3	S-90-3R	S 90 3R
F-400-5	S-400-5R	S 400 5R	F-90-2	S-90-2R	S 90 2R
F-350-1	S-350-1R	S 350 1R	F-90-1	S-90-1R	S 90 1R
F-350-2	S-350-2R	S 350 2R	F-300-1	S-300-1R	S 300 1R
F-350-3	S-350-3R	S 350 3R	F-300-2	S-300-2R	S 300 2R
F-350-4	S-350-4R	S 350 4R	F-300-3	S-300-3R	S 300 3R
			F-300-4	S-300-4R	S 300 4R

FAQ

Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

Q:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.

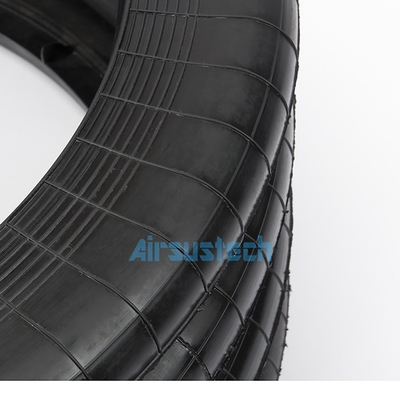

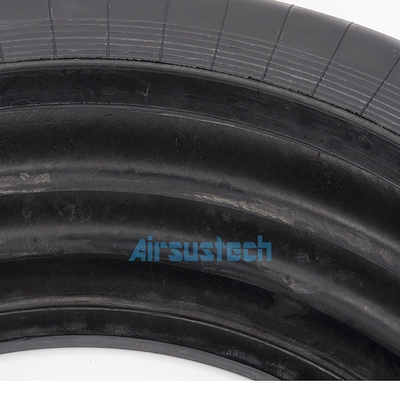

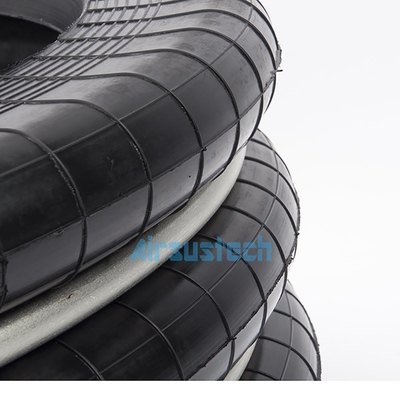

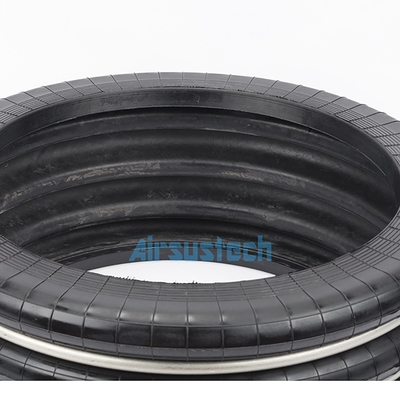

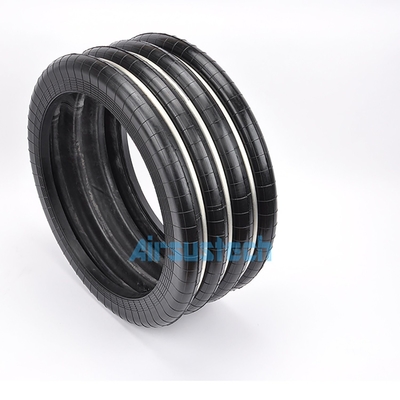

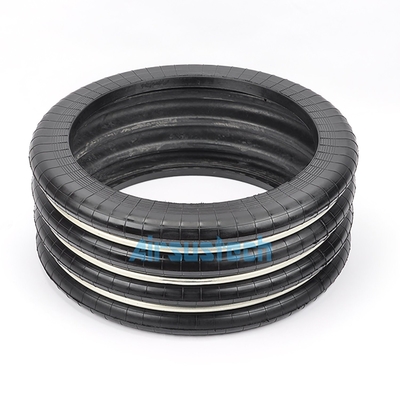

The Related Picture of F-500-4

100% Tested Guomat Air Spring F-500-4 Replaces Yokohama S-500-4r Rubber Bellow 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
100% Tested Guomat Air Spring F-500-4 Replaces Yokohama S-500-4r Rubber Bellow 1

Factory Workshop

100% Tested Guomat Air Spring F-500-4 Replaces Yokohama S-500-4r Rubber Bellow 2
